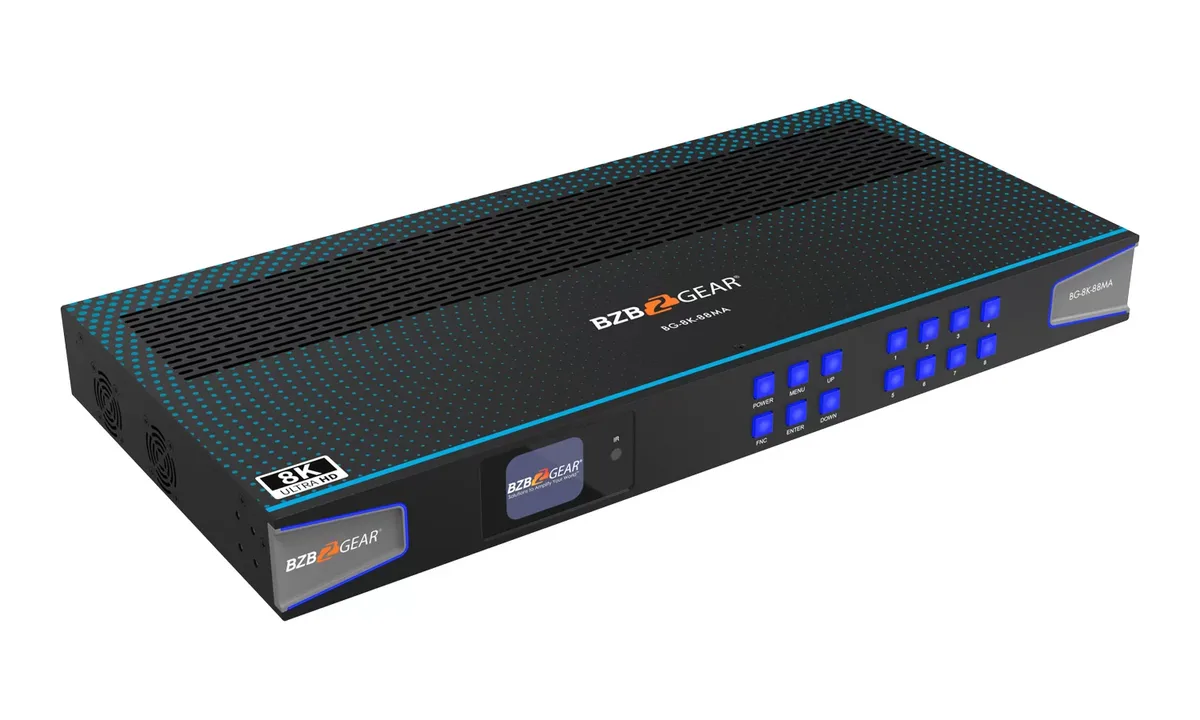

BZBGear BG-8K-88MA 8x8 8K HDMI 2.1 Matrix Switcher

The 8K-88MA is the eight-by-eight version of the HDMI 2.1 matrix, running at 48 Gbps and handling 8K60 4:2:0, 8K30 4:4:4, 4K120 4:4:4 and 1080p240 with VRR, FVA and ALLM support.

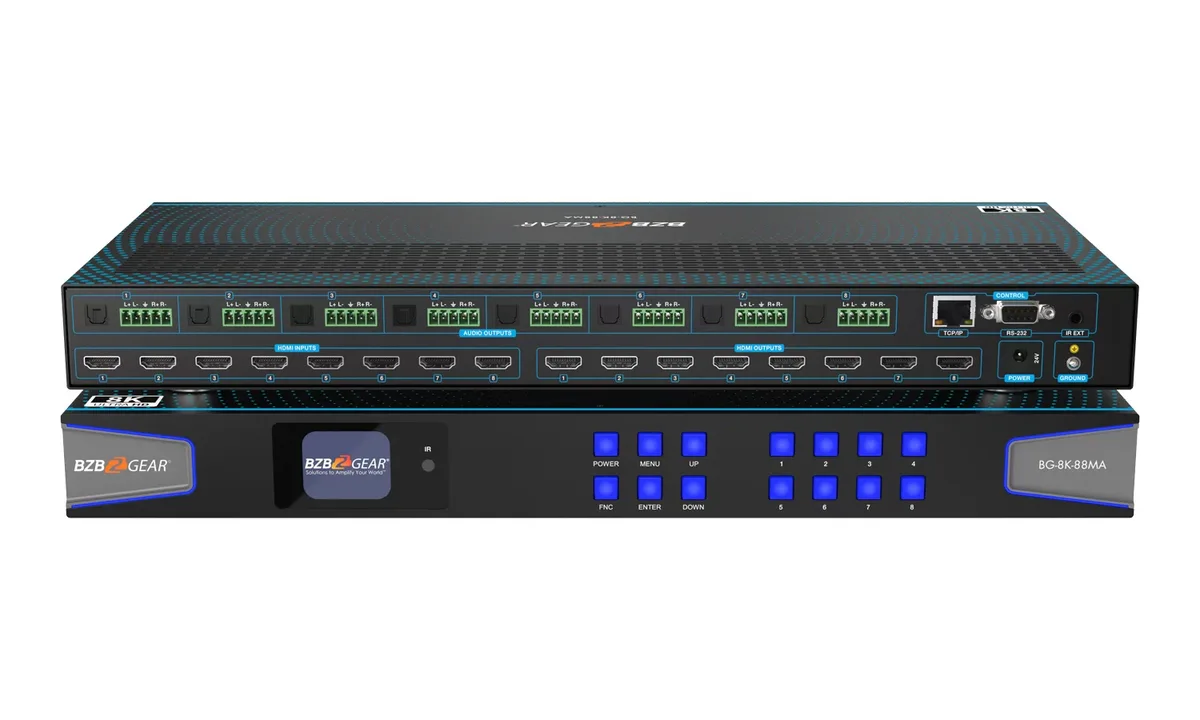

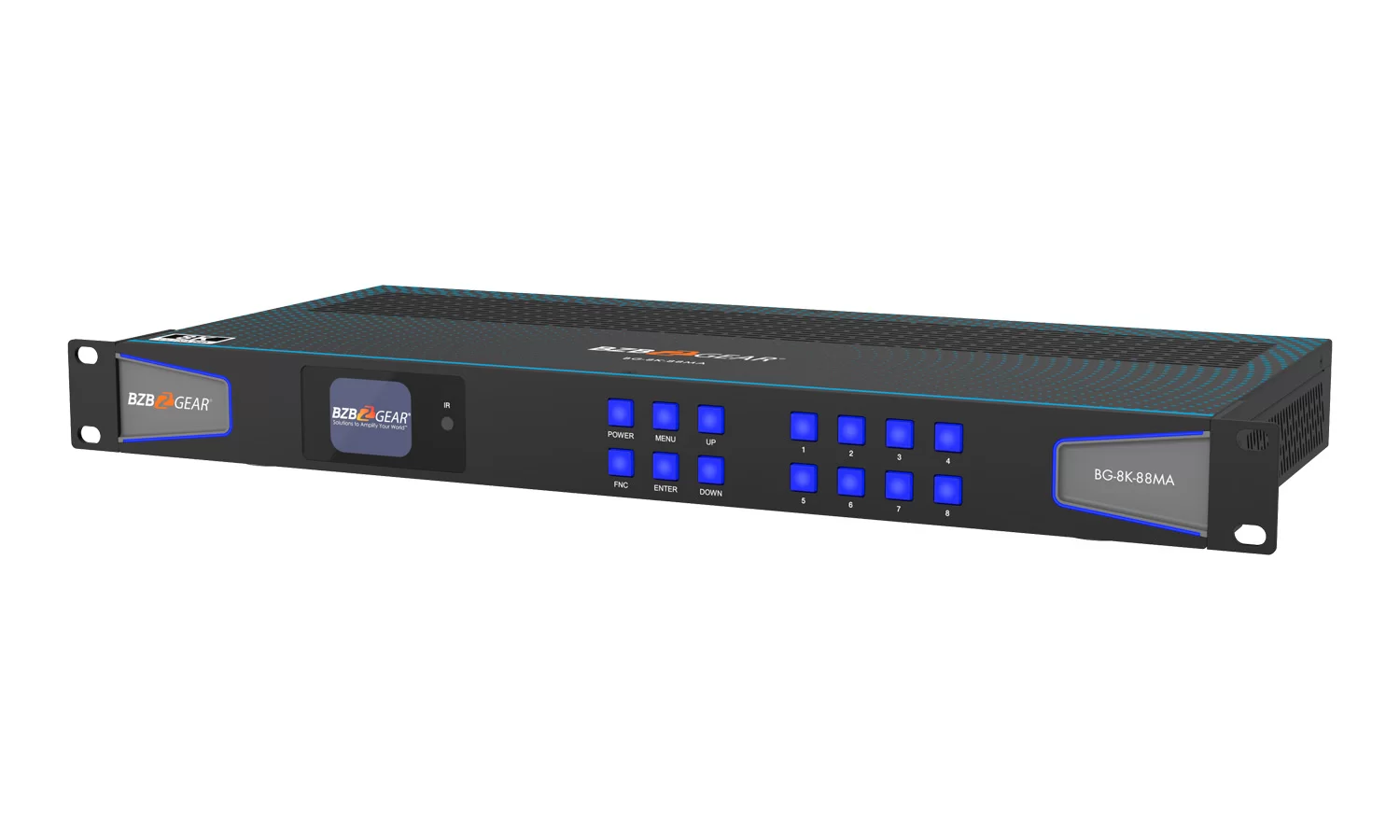

Auto downscaling lets 8K and 4K displays share the same matrix without a source dropping out when it is routed to the smaller screen. Every output has an optical and a balanced analog audio breakout, and control is front panel, TCP/IP on RJ45, RS-232 on DB9 or IR. The chassis is 17 inches wide and one rack unit high.

HDMI compliance	HDMI 2.1
HDCP compliance	HDCP 2.3
Video bandwidth	1200MHz/48Gbps
Video resolution	Up to 8K60Hz 4:2:0, 8K30 Hz 4:4:4, 4K120 4:4:4, 1080p240Hz
HDR formats	HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio formats	HDMI In/Out: LPCM 2.0, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS High Res, DTS-HD Master Audio, DSD Optical Outputs: LPCM 2.0, Dolby, DTS 5.1 Balanced Analog Audio Outputs: LPCM 2.0
Input ports	8 x HDMI [Type A, 19-pin female]

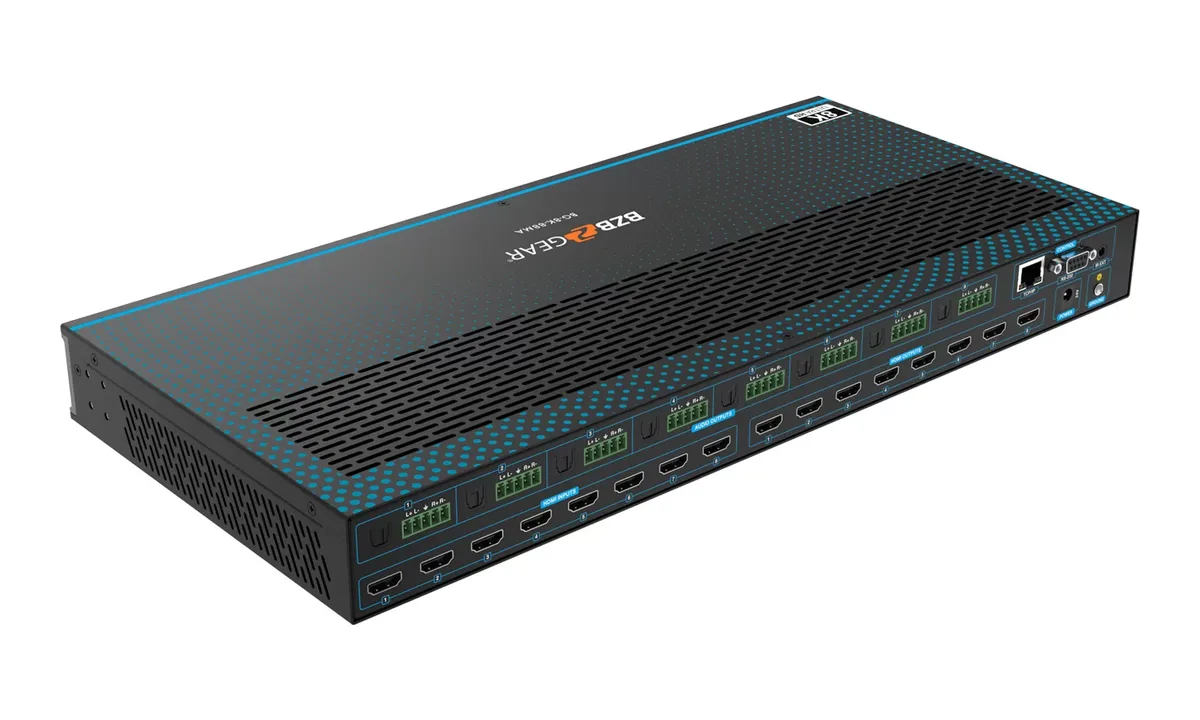

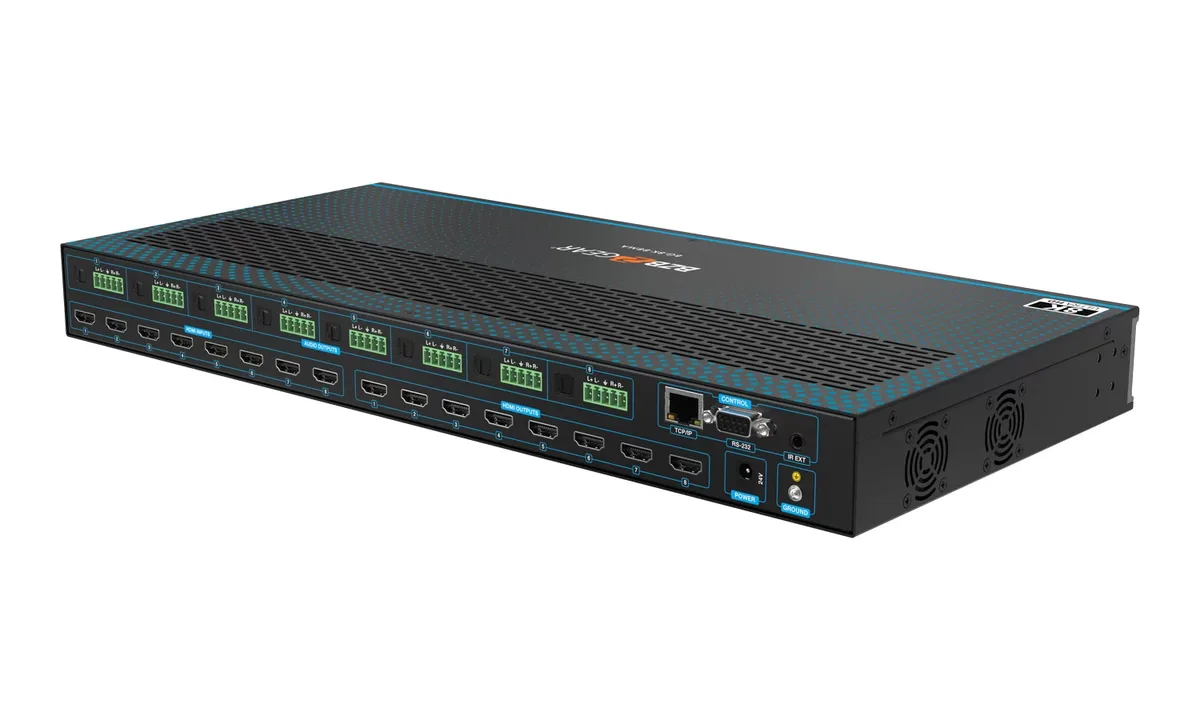

Output ports	8 x HDMI [Type A, 19-pin female] 8 x S/PDIF Optical 8 x Balanced Stereo Audio [3.81mm, 5-pin Phoenix Connector]
Control ports	1 x TCP/IP [RJ45] 1 x RS-232 [D-Sub 9] 1 x IR EXT [3.5mm, Stereo Mini-jack]
Power consumption	45W (Max)
Dimensions	17in (W) x 8in (D) x 1.8in (H) [440mm (W) x 203mm (D) x 44.5mm (H)]
