Blackmagic Multiview 16

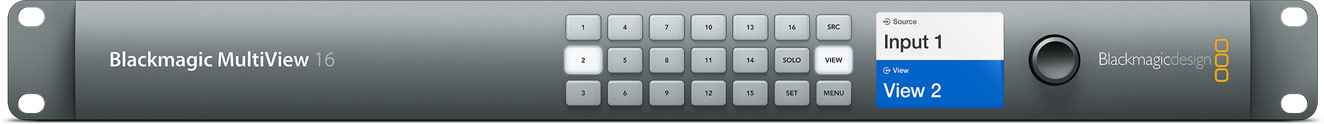

With 16 completely independent 6G-SDI inputs, Blackmagic MultiView 16 is perfect for larger installations where you need to monitor up to 16 SD, HD and Ultra HD sources at the same time. You get full front panel router style controls, along with an LCD screen and spin knob to adjust settings, route sources to different views, turn on overlays, and more. MultiView 16 can display sources in a 2x2, 3x3 or 4x4 grid, or even in a SOLO view for full screen viewing of any single source!

Multi source monitoring designed for broadcasters
Multi view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that don’t have room for multiple monitors. With Blackmagic MultiViews you don’t need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor!

Custom labels, tally, audio meters and more!
Blackmagic MultiViews feature advanced monitoring tools that can be displayed with your video. You get custom labels, audio meters, tally indicators and more! You can also choose which audio source is routed to the video output. The on screen source labels have a subtle, elegant design and resize proportionally based on the selected layout. In addition, you get anamorphic support in standard definition so you can view 16 x 9 anamorphic video sources in widescreen.

External Router Control
Supports Videohub router protocol for easy external control!

MultiView 16 emulates a Blackmagic Videohub router so you get full compatibility with all of the external Videohub software and hardware control panels for routing any of the inputs onto any of the monitoring views! Both models can also be controlled via the included software utility on Mac or Windows computers so you can quickly change settings remotely if access to the front panel is restricted! You can even add on screen labels and other settings remotely!

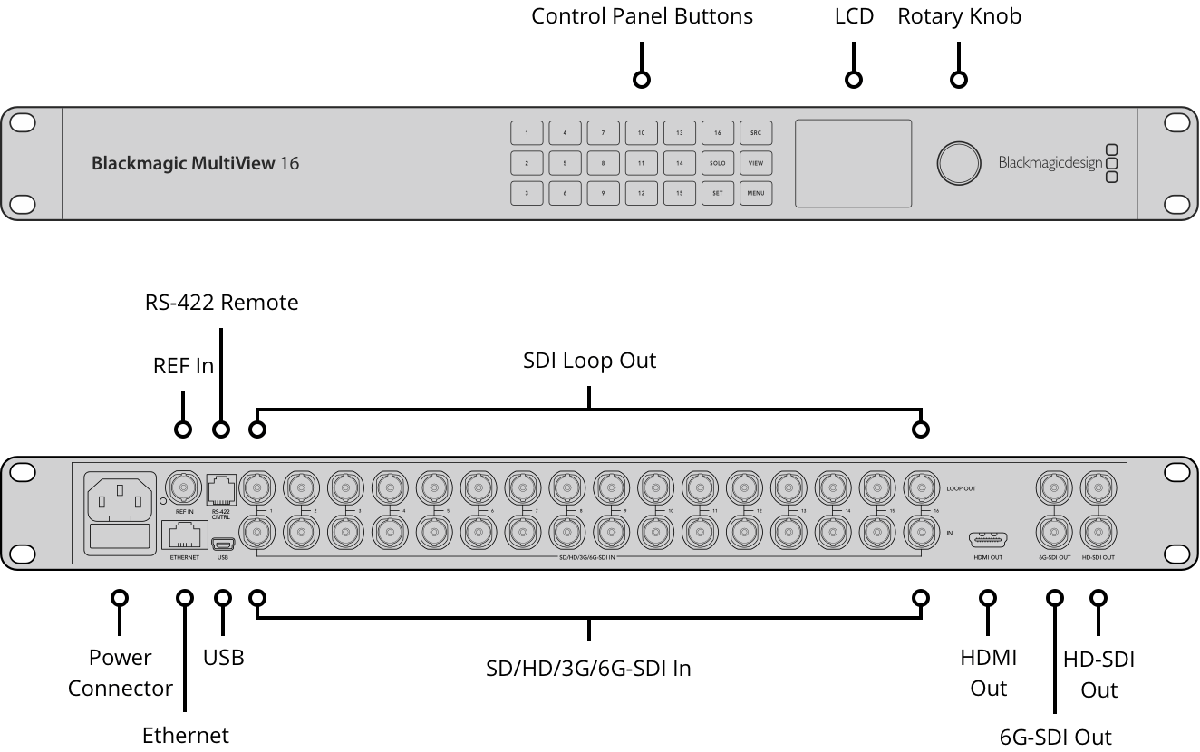

All Blackmagic MultiView models feature multi rate 6G-SDI inputs with full frame re-synchronization and separate loop through outputs, making it compatible with your existing equipment. The SDI inputs automatically detect and re-sync’s SD, HD and Ultra HD formats up to 2160p30. You also get HDMI 2.0 and 6G-SDI for both HD and Ultra HD output. MultiView 16 also includes a reference input connection and blackburst/tri-level sync for studio installations.

• (16) SDI inputs with loop-through
• SDI inputs are SD, HD-SDI, 3G-SDI, 6G-SDI capable
• Mix any combination of SD, HD and Ultra HD sources
• Works with Teranex Mini Smart Panels!
• HDMI and SDI multiview output
• External "Router" Control
