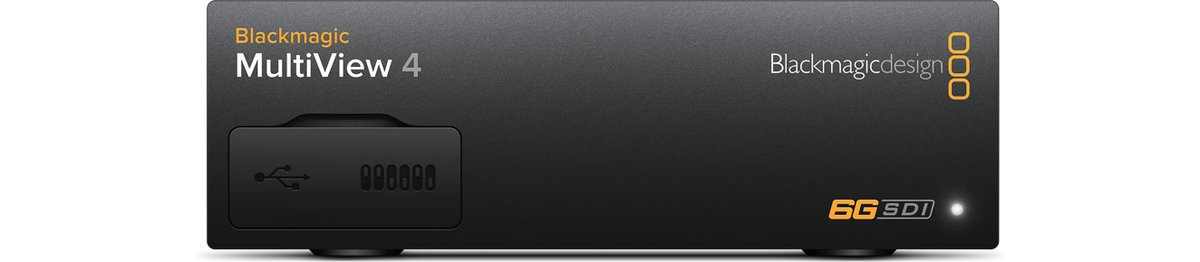

Blackmagic MultiView 4 Multiviewer
The Blackmagic MultiView 4 monitors four independent SDI sources on a single display. Its four 6G-SDI inputs accept any combination of SD, HD, and Ultra HD formats and frame rates at once, and every input is fully re-synchronized so unrelated sources sit together without tearing or timing artifacts.

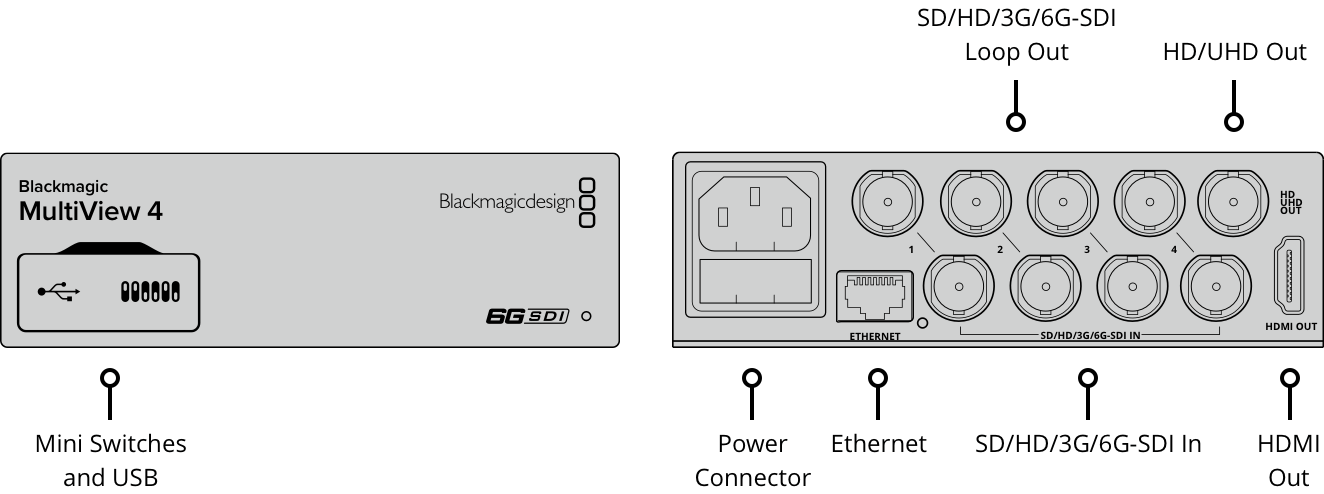

It outputs to either 1080 HD or 2160p Ultra HD displays, and on an Ultra HD screen each of the four views is shown at full 1920 x 1080 for sharp detail. Overlays for audio meters, custom labels, and more can be turned on per view. The four inputs are also looped out on SDI, and the multi view is available on SDI and on an HDMI Type A output with EDID support.
- Storage temperature-20° to 45° C (-4° to 113° F)
- SDI Video Inputs4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
- SDI Video Outputs4 loop, 1 HD/Ultra HD.
- SDI Video Multi View Outputs1 x 10-bit HD-SDI and 10 bit 6G-SDI
- Reference InputNone
| Part Number | BMD-HDL-MULTIP6G/04 |
|---|---|
| SDI Video Inputs | 4 x SD-, HD-SDI and 6G-SDI. |
| SDI Video Outputs | 4 loop, 1 HD/Ultra HD. |
| SDI Rates | 270Mb, 1.5G, 3G, 6G. |
| SDI Video Multi View Outputs | 1 x 10-bit HD-SDI and 10 bit 6G-SDI |
| HDMI Video Multi View Outputs | 1 x type A connector. Output supports EDID of the monitor. |
| SDI Reclocking | On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video. |
| Reference Input | None |
| Multi Rate Support | Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video. |
| Updates | USB 2.0 high speed (480Mb/s) interface or via Ethernet. |
| Configuration | RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting. |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| 4K Video Standards | 4Kp24 DCI |
| SDI and HDMI HD Video Output Standards | 1080i50, 1080i59.94 |
| SDI and HDMI Ultra HD Video Output Standards | 2160p25, 2160p29.97 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601. |
| Audio Meters | Each view, VU standard. |
| Source Routing | None |
| SDI Video Sampling | |
| SDI Audio Sampling | Television standard sample rate of 48kHz and 24-bit. |
| SDI Color Precision | 10-bit 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard. |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M. |
| Built in Control Panel | None. Supports Teranex Mini Smart Panel which adds menus and 2.2 inch color display. |
| External Control Panel | None |
| Display | Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings. |
| Software Control | MultiView software included free for Windows™ and Mac™. |
| Internal Software Upgrade | Via included updater application. |
| Operating Systems | Mac 10.15 Catalina, Mac 11.1 Big Sur or later. Windows 10, 64-bit. |
| Power Supply | IEC power cable required, 100 - 240V AC input. |
| Power Fail Protection | MultiView 4 settings preserved and restored instantly at power on. |
| Power Over Ethernet | Can be powered via 48V DC using + (power over ethernet) |
| Power Consumption | 16 Watts |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Source | Full specifications on blackmagicdesign.com |

- Blackmagic MultiView 4
- Welcome wallet with QR code for software download
