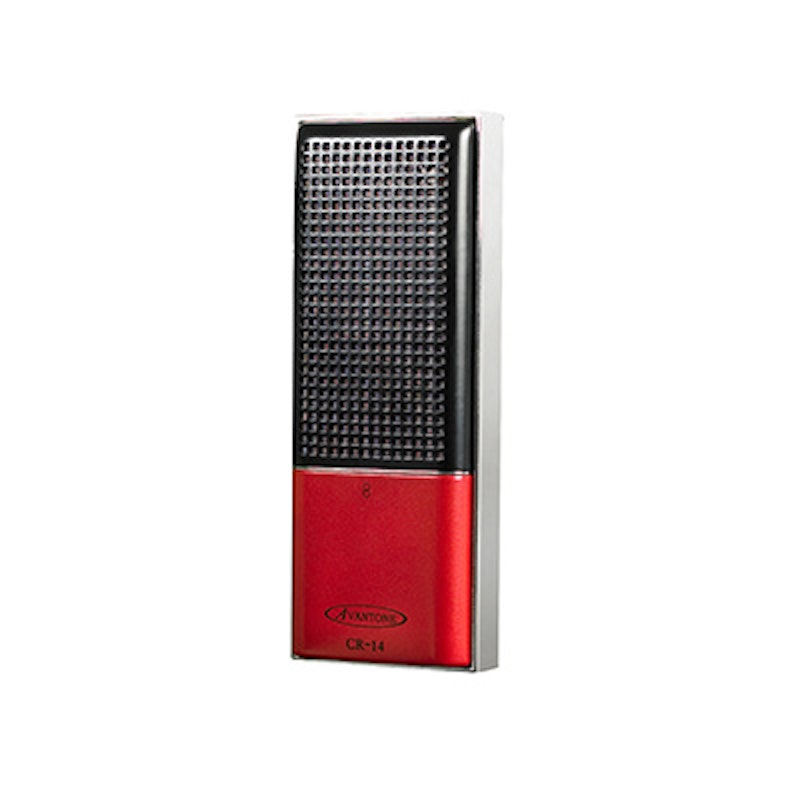

Avantone Pro CR-14 Dual-Ribbon Figure-8 Microphone
The CR-14 uses a dual-ribbon motor, two pure aluminium ribbons 35 mm by 5 mm and 2 microns thick, which raises output and lowers noise compared with a single-ribbon design of the same size. The response runs 30 Hz to 15 kHz within 3 dB, with the natural high-frequency softness that makes ribbons useful in front of bright sources such as brass, guitar cabinets, and cymbals.

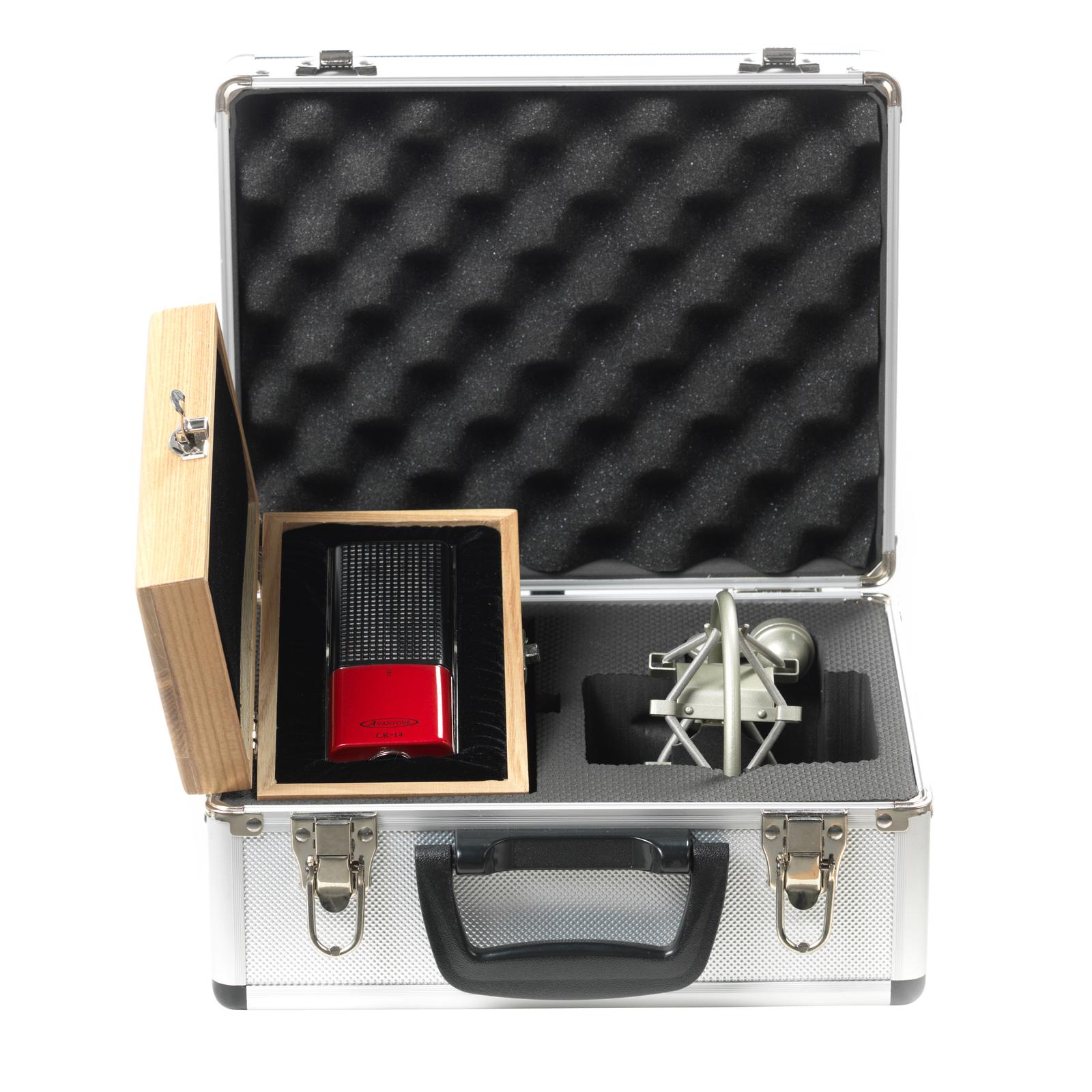

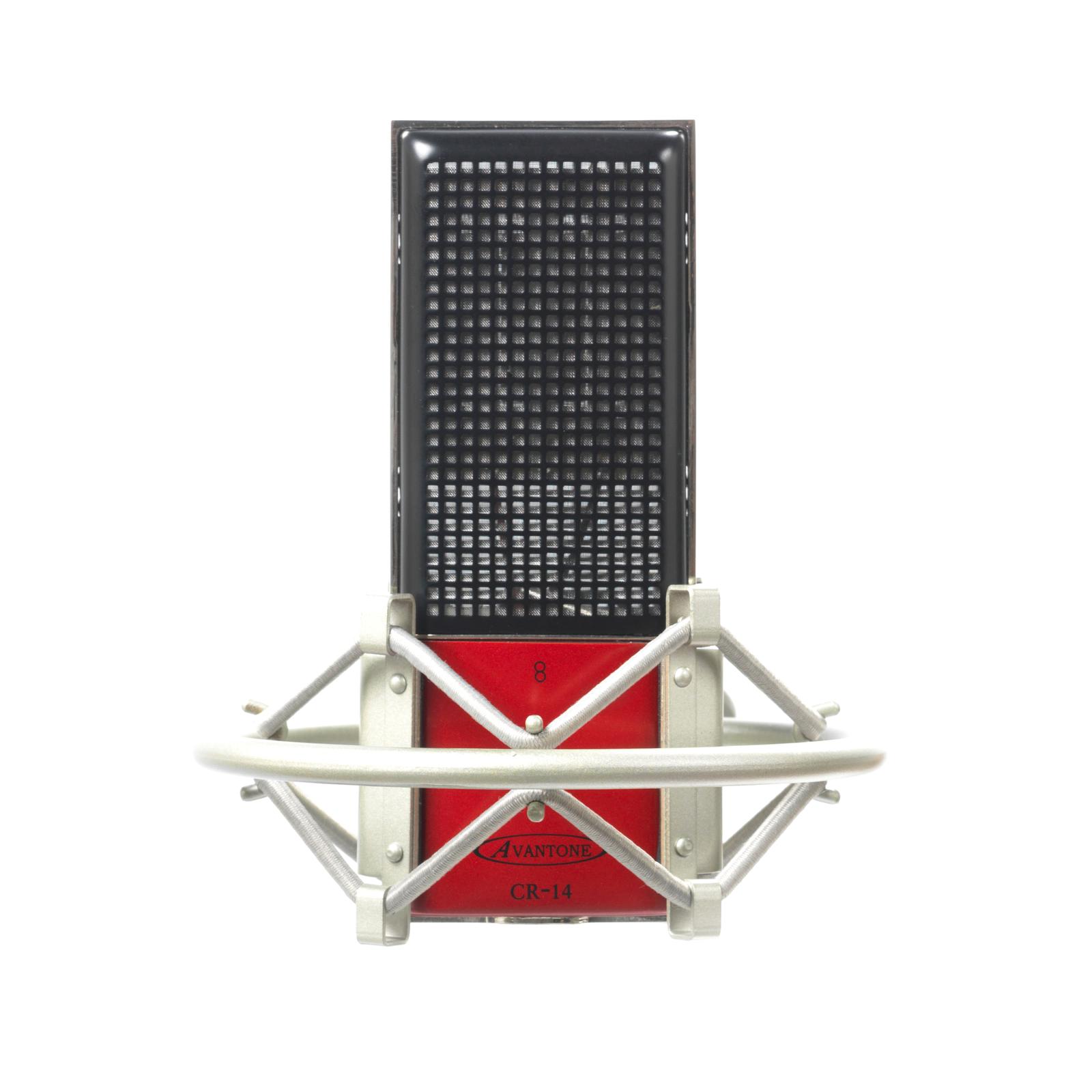

It is fully passive and figure-8, so it captures the room behind it as well as the source in front and nulls hard at 90 degrees. Output impedance is 600 ohms or less and Avantone recommends a 3,000 ohm load, so a preamp with a high input impedance and plenty of clean gain will get the most from it. Never send phantom power to it. The microphone arrives with a retro shockmount, wooden presentation box, and metal road case.
| Type | Ribbon microphone |
|---|---|
| Ribbon | Dual ribbon, pure aluminium, 35 mm x 5 mm, 2 microns thick |
| Polar Pattern | Figure of 8 |
| Frequency Response | 30 Hz - 15 kHz +/- 3 dB |
| Sensitivity | -52 dBv +/- 2 dB (0 dB = 1 V/Pa) |
| Output Impedance | 600 Ohms or less |
| Recommended Load Impedance | 3,000 Ohms |
| Max SPL | 145 dB (0.5% THD at 1 kHz) |
| Connector | Male XLR 3-pin |
| Power Requirement | None (passive) |
| Included | Retro shockmount, wooden presentation box, metal road case, manual |
