Avantone Pro CDMK Series Complete Drum Microphone Kits

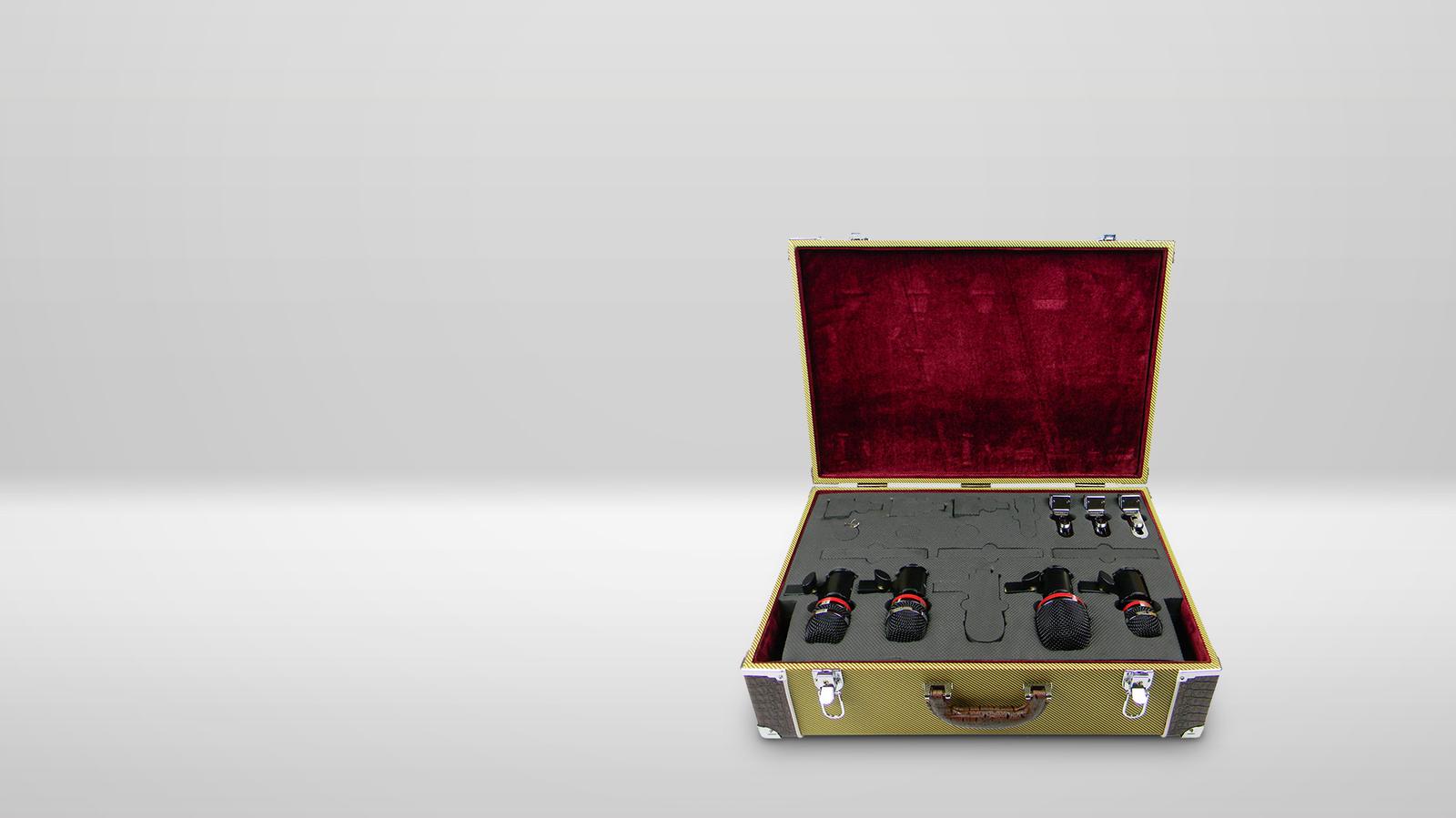

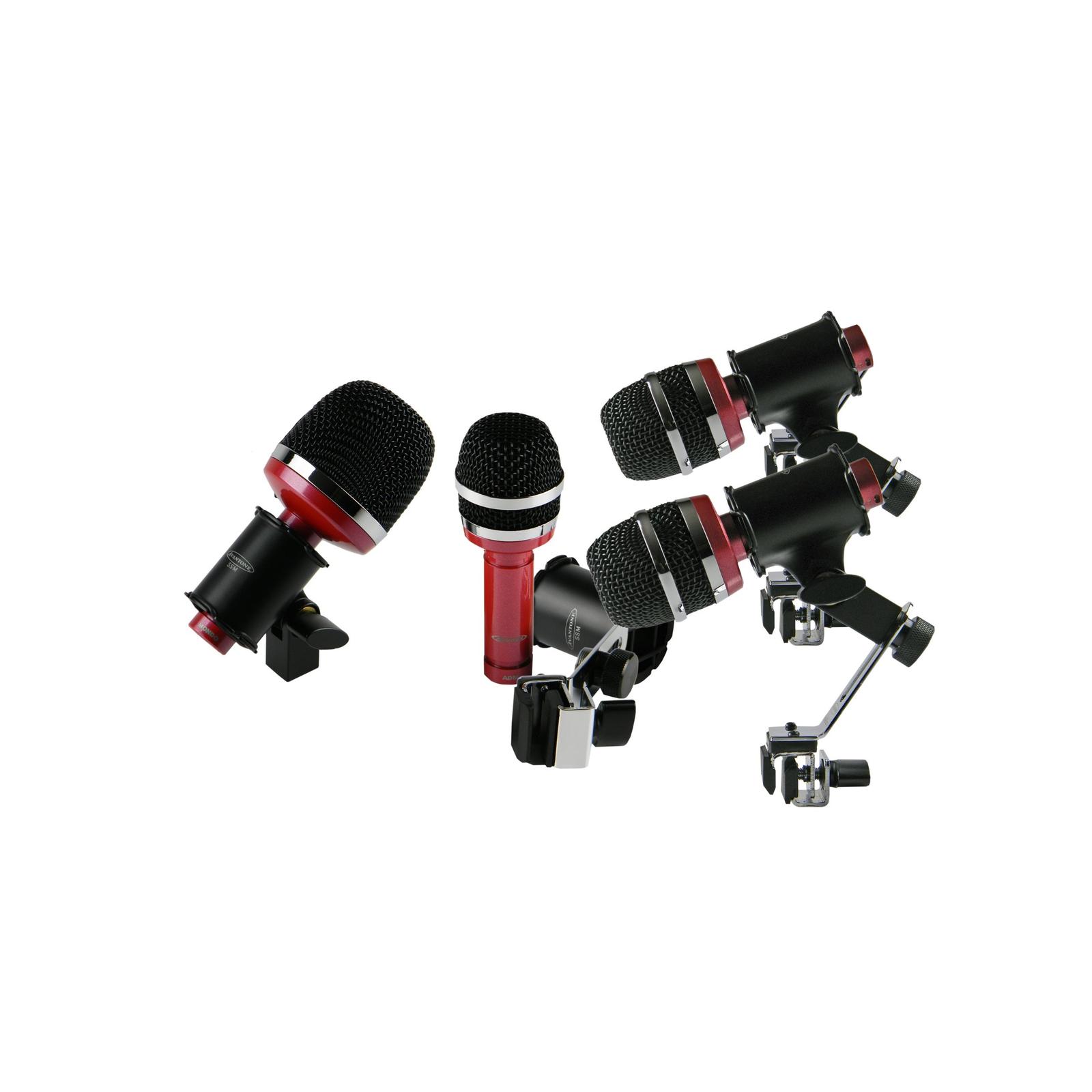

The CDMK kits cover a drum kit end to end with matched Avantone microphones, PK-1 Pro-Klamp rim mounts, SSM metal shockmounts, and a tweed case, so nothing else has to be sourced. Every kit starts from the same core: a MONDO on the kick, an ADM on the snare, and ATOM dynamics on the toms, all cardioid dynamics rated to 145 dB.

The kit number is the microphone count. CDMK-4 covers kick, snare, and two toms; CDMK-5 adds a third tom. CDMK-6 and CDMK-7 add a pair of CK-1 FET condensers as overheads, and CDMK-8 adds a third CK-1 in hypercardioid for the hi-hat. The CK-1 condensers take 48 V phantom and handle 138 dB; the dynamics need no power.

CDMK-4	1 MONDO kick, 1 ADM snare, 2 ATOM toms; 3 PK-1 clamps, 4 SSM shockmounts, tweed case
CDMK-5	1 MONDO, 1 ADM, 3 ATOM; 4 PK-1 clamps, 5 SSM shockmounts, tweed case
CDMK-6	1 MONDO, 1 ADM, 2 ATOM, 2 CK-1 overheads; 3 PK-1 clamps, 6 SSM shockmounts, tweed case
CDMK-7	1 MONDO, 1 ADM, 3 ATOM, 2 CK-1 overheads; 4 PK-1 clamps, 7 SSM shockmounts, tweed case
CDMK-8	1 MONDO, 1 ADM, 3 ATOM, 2 CK-1 overheads, 1 CK-1 hypercardioid hi-hat; 4 PK-1 clamps, 8 SSM shockmounts, tweed case
MONDO / ADM / ATOM	Dynamic, cardioid, 145 dB max SPL, XLR output
CK-1 FET	True condenser, cardioid and hypercardioid, 138 dB max SPL, 48 V phantom
