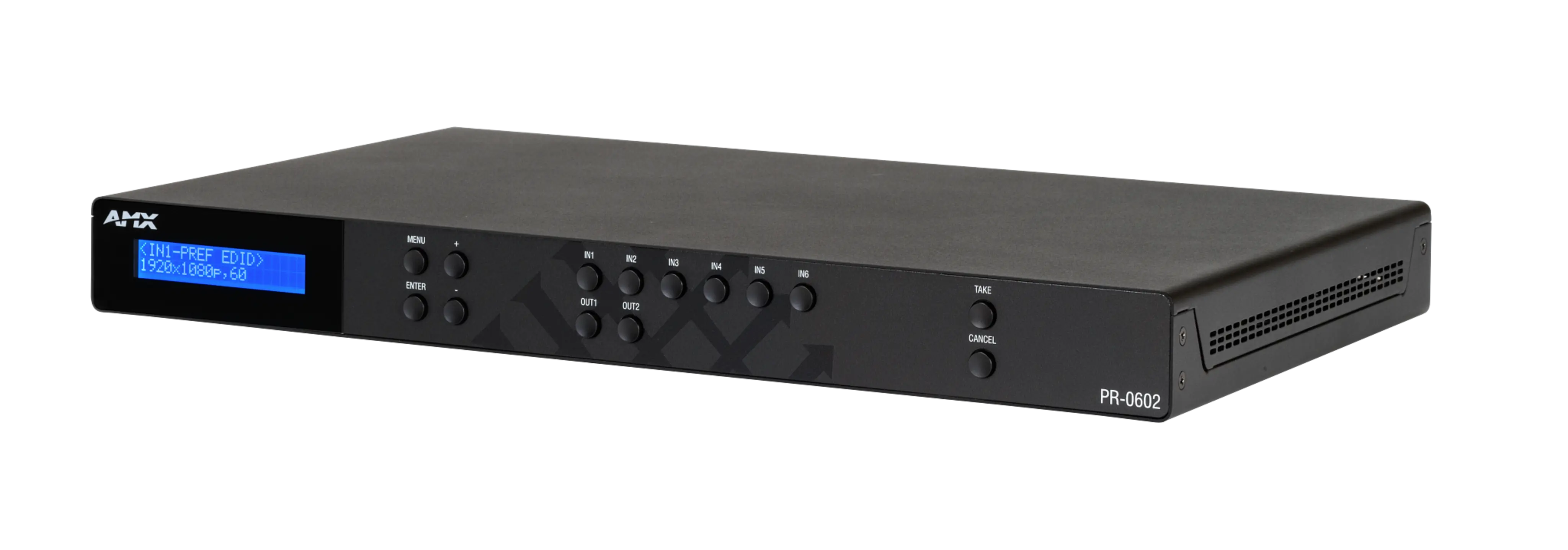

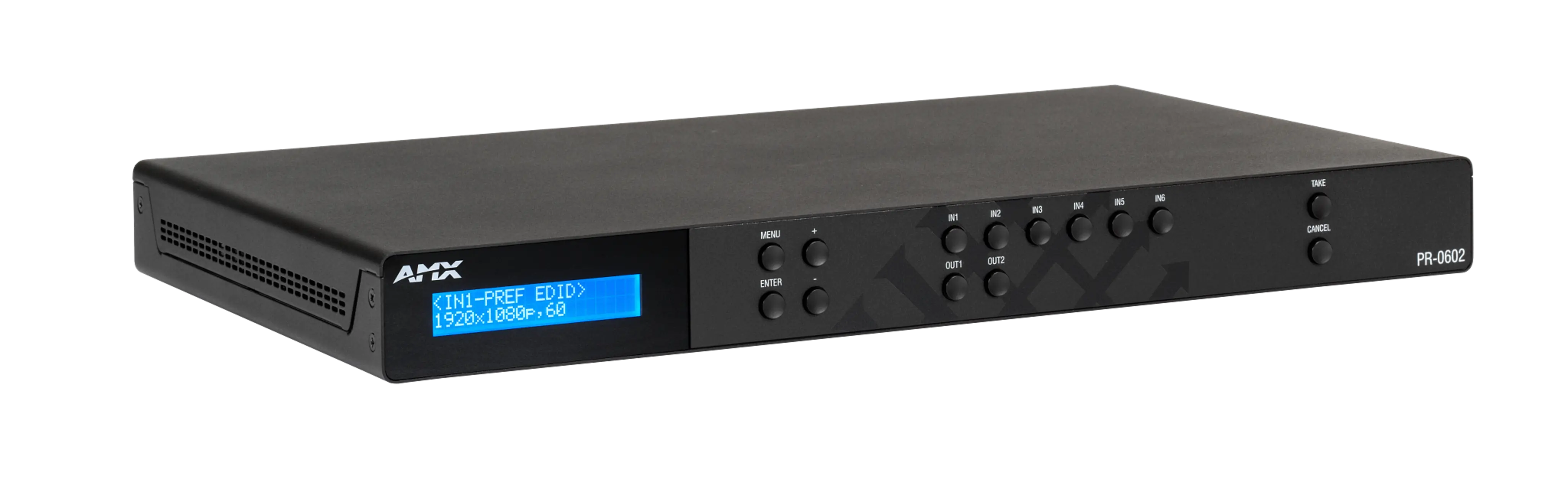

AMX Precis PR-0602 6x2 4K60 HDMI Matrix Switcher

The PR-0602 gives a room six HDMI inputs and two independently routed outputs, which suits a divisible classroom or a boardroom with a main display and a confidence monitor. Video passes at up to 4096 x 2160 at 60 Hz in 4:4:4, HDCP 2.2 compliant, with HDR10+, Dolby Vision, and 36-bit per pixel Deep Color carried end to end.

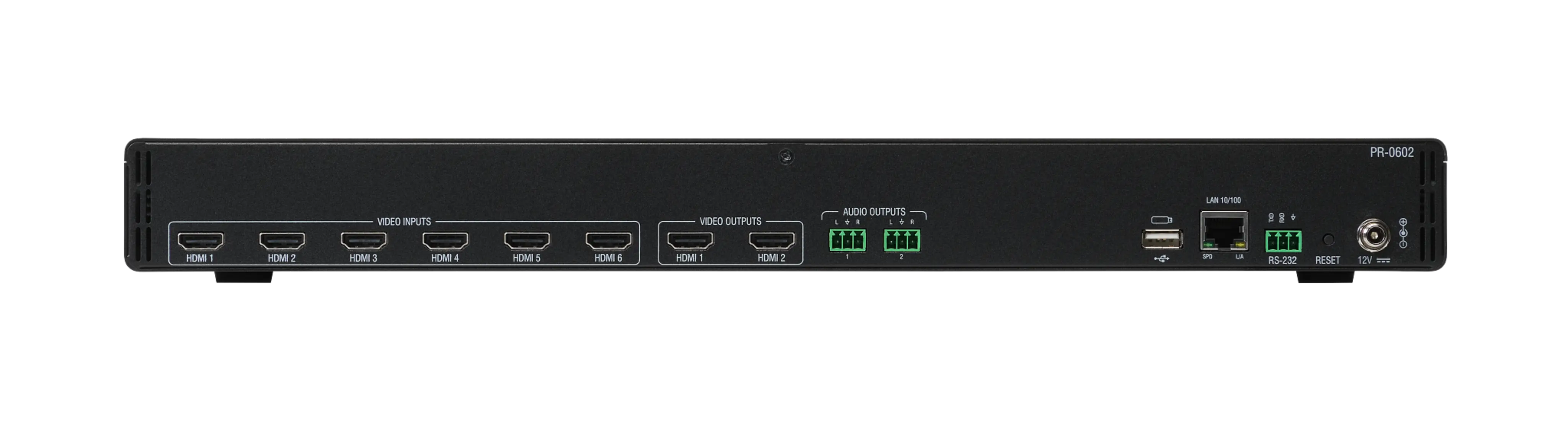

Both outputs de-embed their HDMI audio to a 3.5mm Phoenix analog stereo connector, so the room DSP does not need an HDMI card to get program audio. The switcher is driven over Ethernet or RS-232 and has a USB Type-A program port, and the full-width 1RU chassis is 17.24 inches wide by 10.59 inches deep at 6.3 lbs.

Configuration	6 HDMI inputs x 2 HDMI outputs
Max Resolution	Up to 4096 x 2160 at 60 Hz, 4:4:4
HDCP	HDCP 2.2 compliant
HDR	HDR10+, Dolby Vision, 36-bit Deep Color
Audio Outputs	(2) analog stereo outputs on 3.5mm Phoenix, de-embedded per HDMI output
Control	Ethernet (RJ45), RS-232 (3.5mm Phoenix), USB Type-A program port
Dimensions	1.73 in H x 17.24 in W x 10.59 in D
Weight	6.3 lbs (2.85 kg)
