AMX JPK-1300 Jetpack 3x1 Switching, Transport and Control Kit

The Jetpack JPK-1300 puts a whole classroom AV system in one carton: a three-input switching wallplate transmitter with two HDMI and one USB-C, a six-button keypad with a volume knob, and a multi-function receiver with a 2x25W amplifier built in. Video switches and travels over a single shielded Cat 6/6A/7 run at up to 4K60, so the display end needs one cable and a power supply rather than a rack.

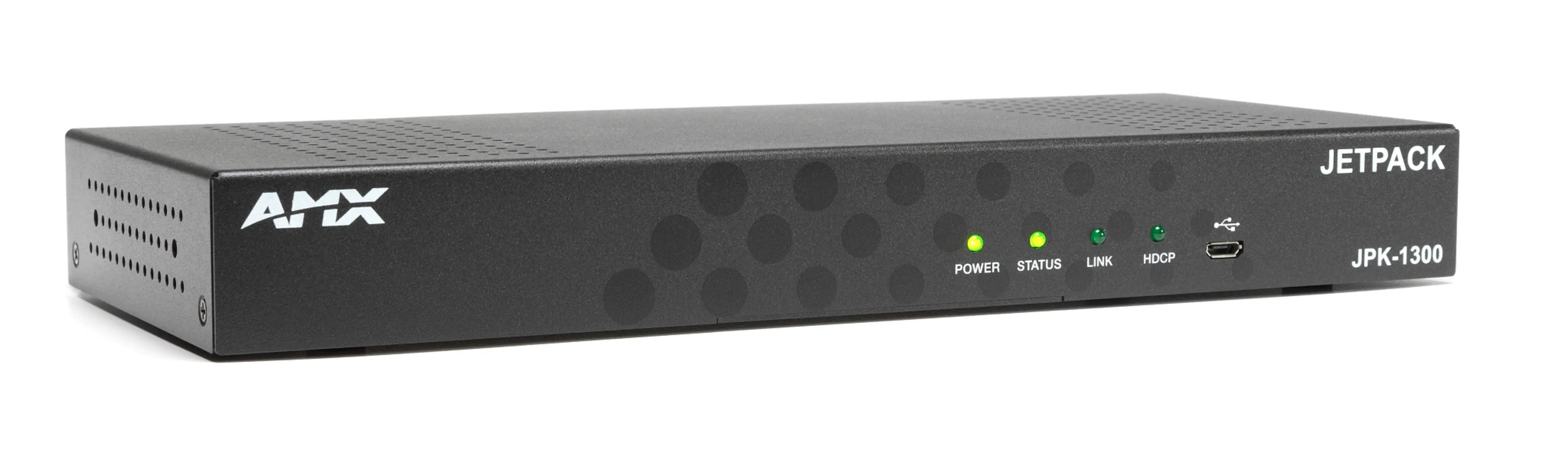

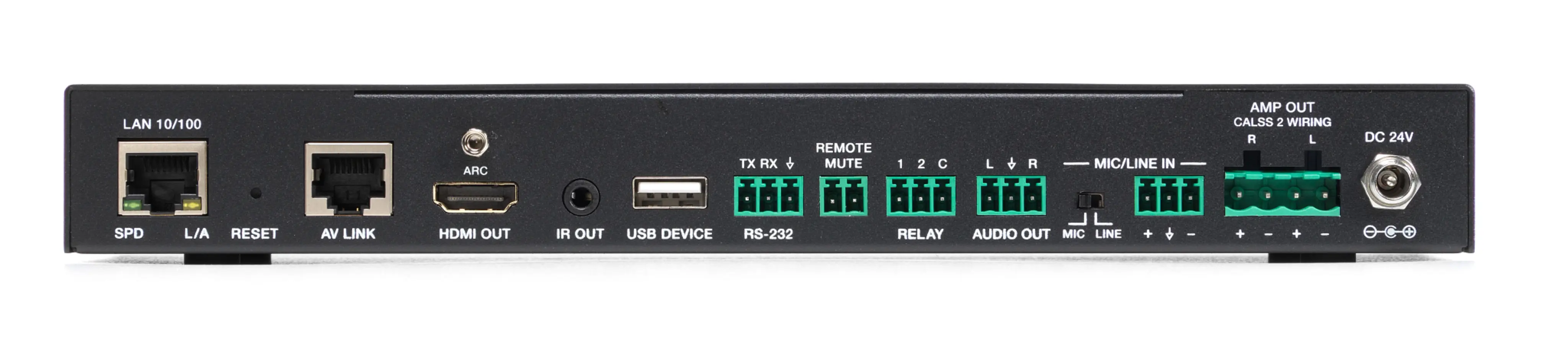

The receiver is where the room control lives. It carries RS-232, relays, IR out and a remote mute contact on Phoenix blocks, a mic/line analog input for a teacher microphone, a line-level audio output for a separate system, and a LAN port. USB pass-through runs at up to 220 Mbps for a soft codec camera or a touch display, and the Jetpack Management PC software configures the whole kit without writing code.

Video Inputs (TX)	2x HDMI, 1x USB-C
Video Output (RX)	1x HDMI
Resolution Support	Up to 4096 x 2160 @ 60 Hz
Transport Distance	Up to 40 m / 131 ft at 4K, 70 m / 230 ft at 1080p over shielded Cat 6/6A/7
Amplifier	1x AMP OUT, 2x25W into 4/8 Ohm
Audio Input (RX)	1x MIC/LINE analog audio
USB Pass-Through	Maximum 220 Mbps
Control Ports (RX)	RS-232, relays, remote mute, 3.5 mm IR out, LAN 10/100
Operating Temperature	32 F to 104 F (0 C to 40 C)
Included	6-button keypad with volume knob, 3-input switching wallplate transmitter, multi-function receiver, Jetpack Management PC software
