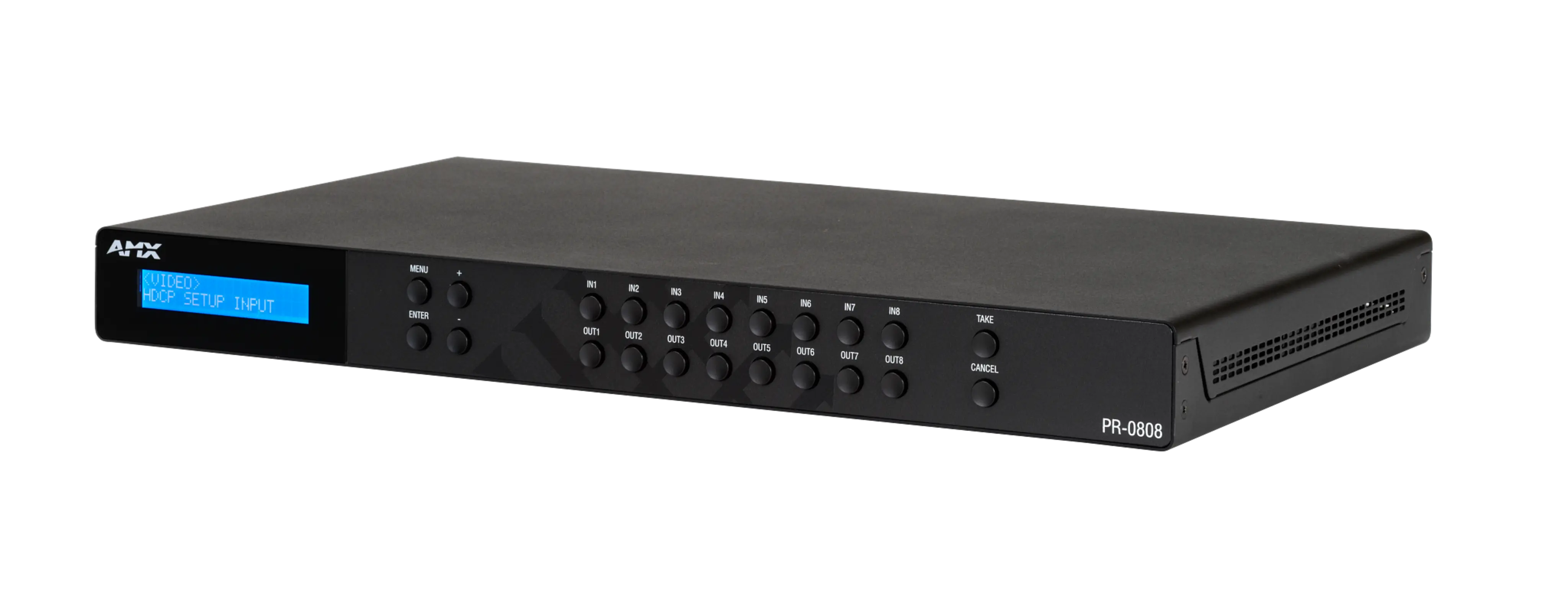

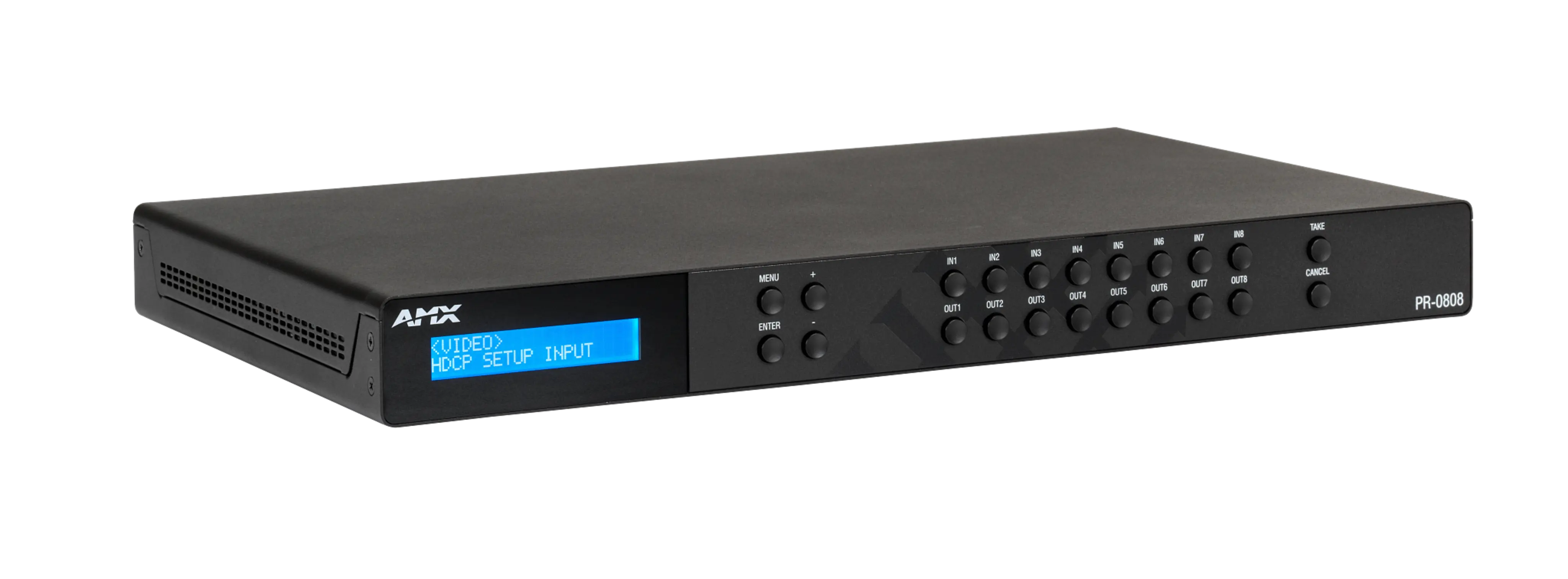

AMX Precis PR-0808 8x8 4K60 HDMI Matrix Switcher

The PR-0808 is the largest of the Precis HDMI matrix switchers, routing eight sources to eight displays at up to 4096 x 2160 at 60 Hz in 4:4:4. It is HDCP 2.2 compliant and passes HDR10+, Dolby Vision, and 36-bit Deep Color, so a bar, sports venue, or multi-zone corporate floor can run modern 4K sources to every screen without the switcher forcing a downgrade.

Each output carries its own 3.5mm analog stereo connector with audio de-embedded from that output's HDMI stream, giving eight independent zones of program audio for the house system. Control is over Ethernet or RS-232 with a USB Type-A program port, and the 1RU chassis measures 17.24 inches wide by 10.59 inches deep and weighs 7.9 lbs.

Configuration	8 HDMI inputs x 8 HDMI outputs
Max Resolution	Up to 4096 x 2160 at 60 Hz, 4:4:4
HDCP	HDCP 2.2 compliant
HDR	HDR10+, Dolby Vision, 36-bit Deep Color
Audio Outputs	(8) 3.5mm analog stereo outputs, de-embedded from HDMI
Control	Ethernet (RJ45), RS-232 (3.5mm), USB Type-A program port
Dimensions	1.73 in H x 17.24 in W x 10.59 in D
Weight	7.9 lbs
