AMX CTC-1402 Conferencing Connectivity and Transport Kit

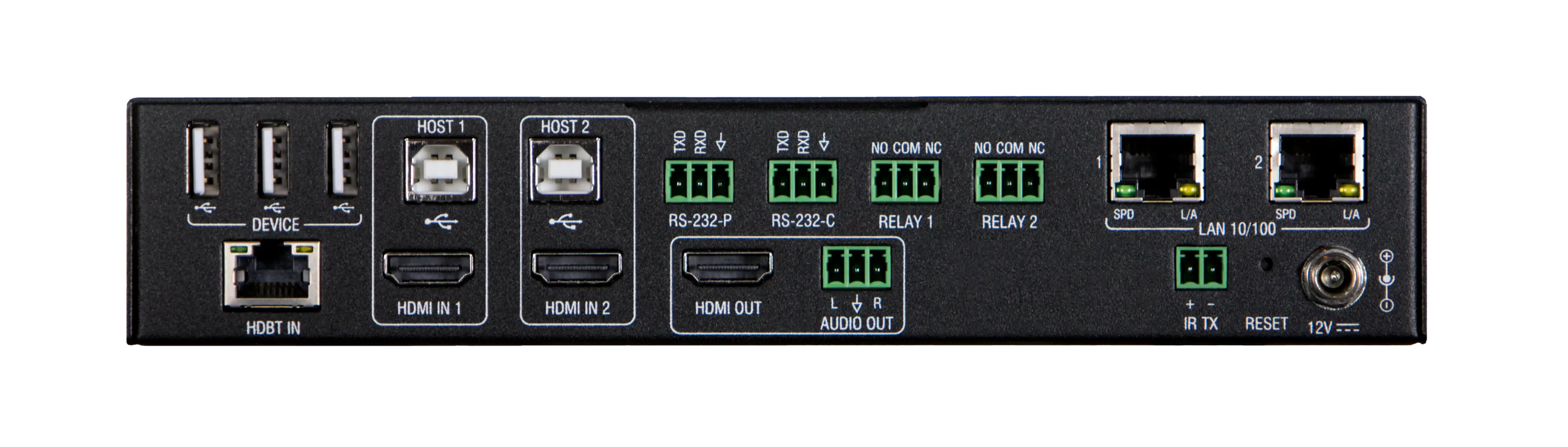

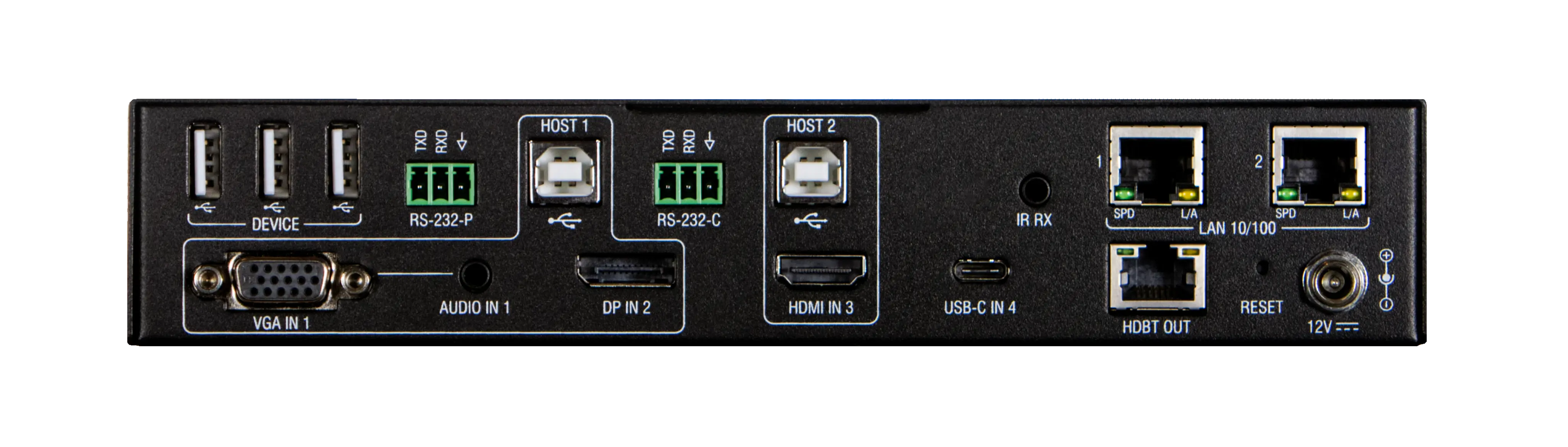

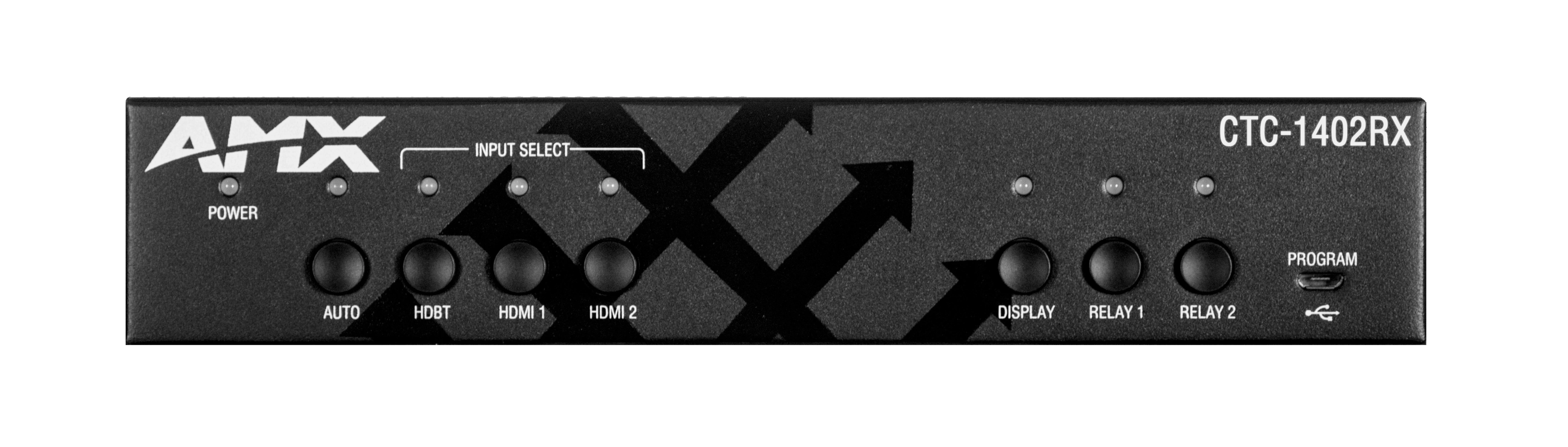

The CTC-1402 combines multi-format 4K60 4:4:4 video switching, scaling and distance transport with USB 2.0 peripheral switching in a single transmitter/receiver kit, aimed at conferencing spaces that need one box handling the table connectivity and the run back to the room's display. The CTC-1402TX accepts HDMI, VGA, DisplayPort and USB-C (DisplayPort Alternative Mode with video and HDCP), and sends a scaled signal up to 4096 x 2160 at 60 Hz over a single category cable to the CTC-1402RX, which offers its own two HDMI inputs and an HDMI output.

USB peripheral switching supports one hub with up to seven connected devices at 0.5A per port and 127 Mbps of USB 2.0 bandwidth, enough for a table camera and speakerphone to reach the room PC over the same run. Control is NetLinx native with CEC compatibility and an open, IP-controllable API, and both TX and RX units share the same compact 1.65 x 8.66 x 5.9 inch chassis.
