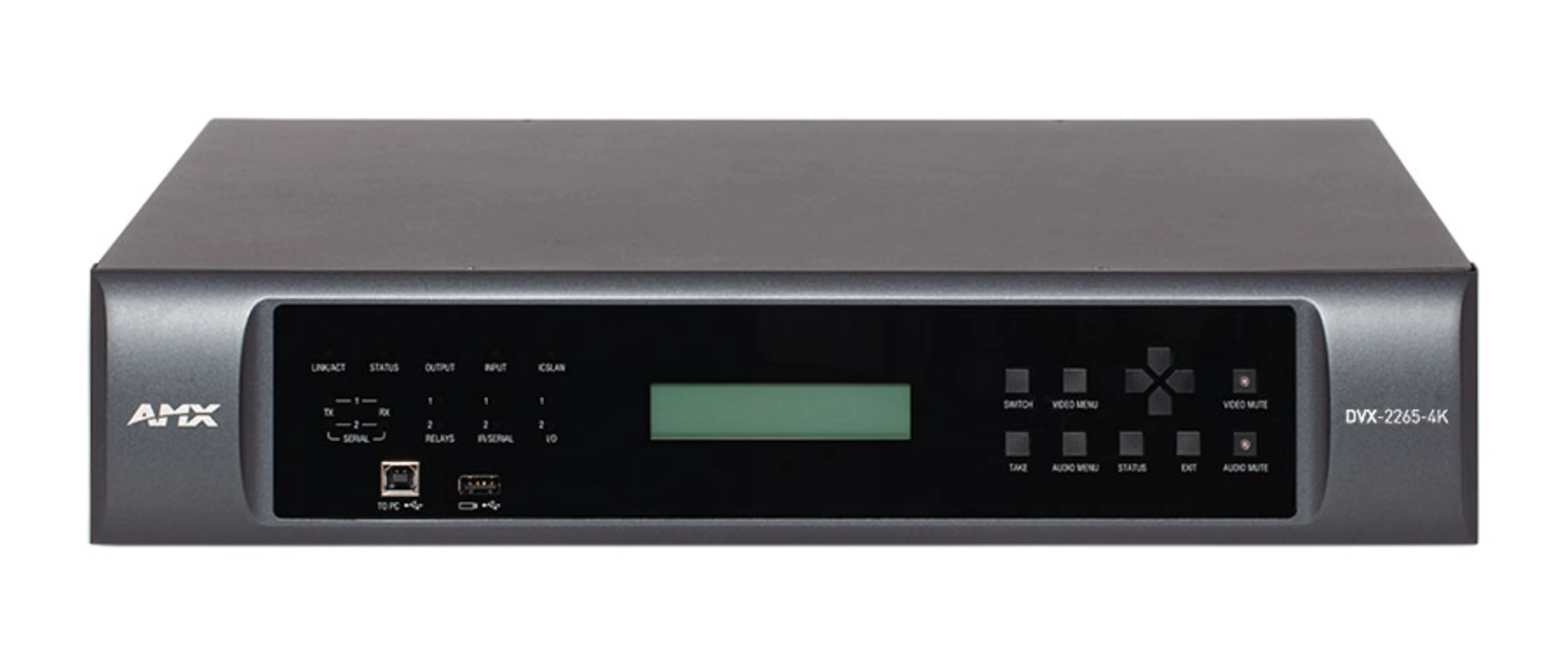

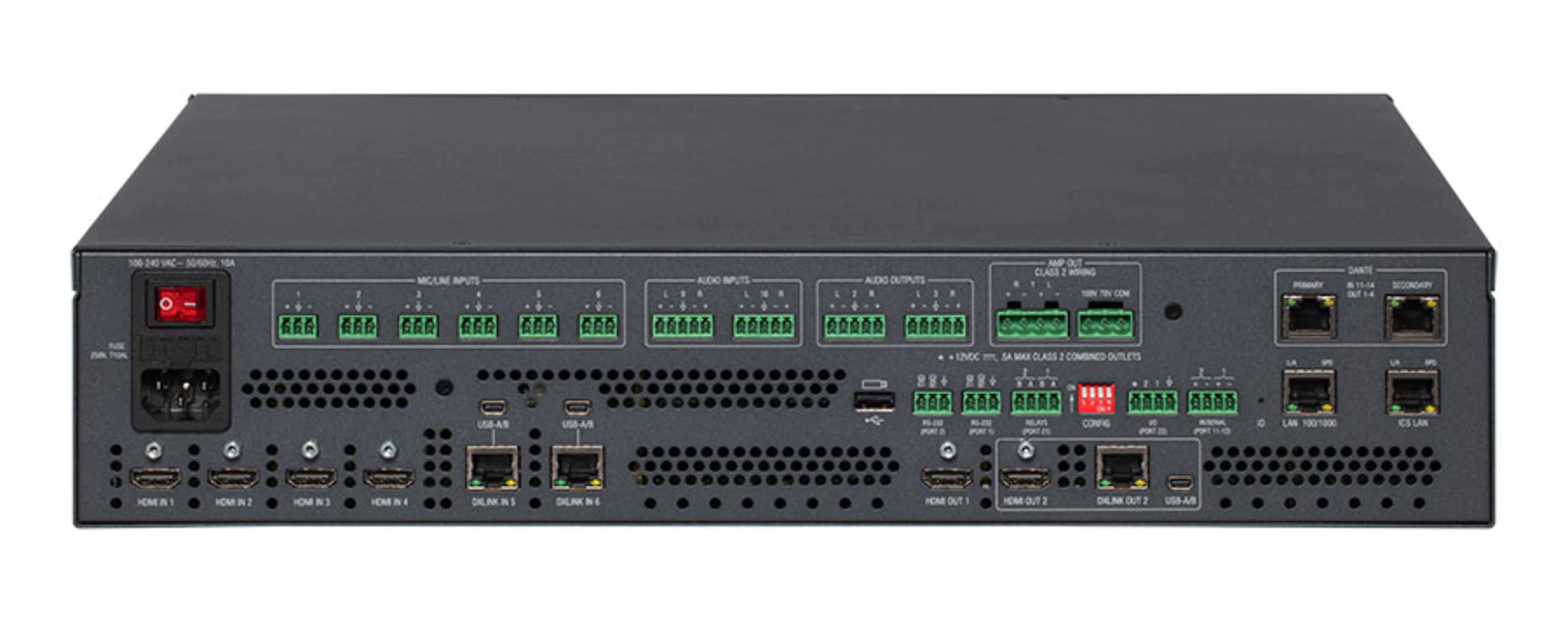

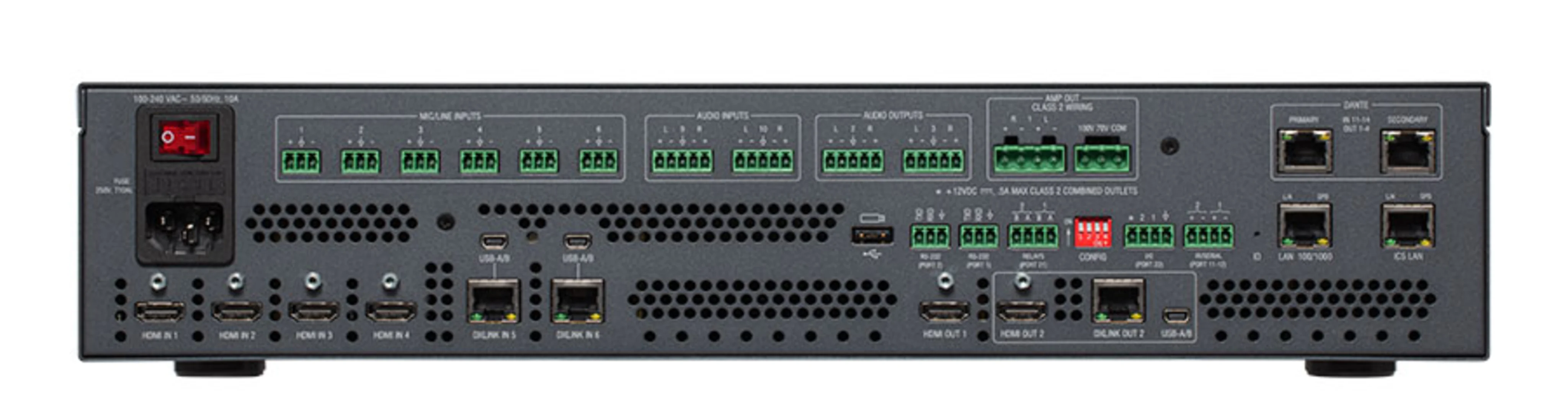

AMX Enova DVX-2265-4K-TAA 6x2+1 All-In-One Presentation Switcher

The DVX-2265-4K is the mid-size Enova all-in-one, taking four HDMI and two DXLink 4K60 inputs to two HDMI outputs and one DXLink 4K60 output at up to 3840 x 2160 at 60 Hz in 4:4:4. It is HDCP 2.2 compliant and carries HDR10 and 36-bit Deep Color, so a single chassis handles the switching, extension, audio, and control that a mid-size divisible room would otherwise need four separate boxes to do.

Audio comes in on six analog mic/line channels, two stereo analog inputs, and eight Dante channels, and leaves through two stereo analog outputs, eight Dante channels, and a 120W amplified output that runs 120W per channel stereo into 4 or 8 ohms or drives a 70/100V distributed line. The onboard NetLinx controller provides two RS-232 ports at 300 to 115,200 baud, two IR/serial ports, a two-channel binary input, two SPST relays rated 24 VDC or 28 VAC at 1A, and USB 2.0. This SKU is the Trade Agreements Act compliant build required by many federal, state, and education purchasing contracts.
