AMX VPX-1701 7x1+1 4K60 Presentation Switcher

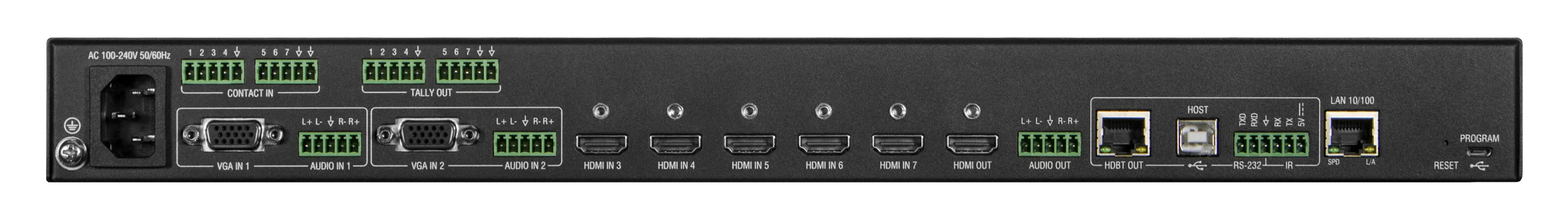

The VPX-1701 is a simple, scaling presentation switcher built for small conference rooms and classrooms that still need to accept a mix of source types. Five HDMI inputs and two VGA inputs feed built-in scaling that automatically matches whatever resolution the display wants, with a mirrored HDMI and HDBaseT output pair so the same signal reaches a local display and a remote one over category cable, at full 4K60 4:4:4 pixel-for-pixel reproduction and HDCP 2.2 compliance.

USB 2.0 passes from table-mounted cameras and speakerphones back to the room over the HDBaseT link, and an extracted audio output with volume control can feed a soundbar or powered speakers directly. Control runs from the front panel, contact-closure source buttons, or over IP, and the switcher is NetLinx Native with an open control API, including direct IP control from Zoom Rooms.
