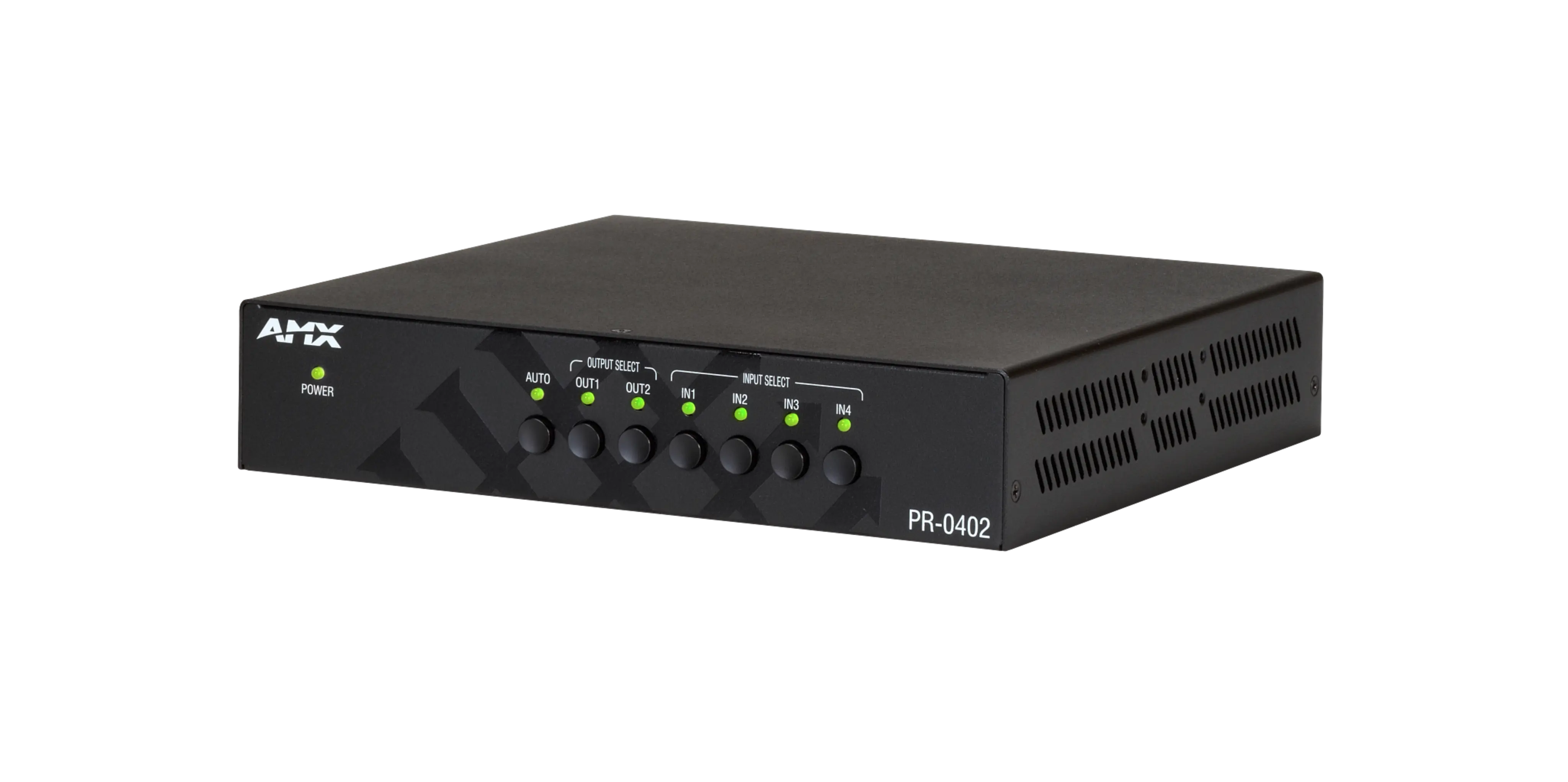

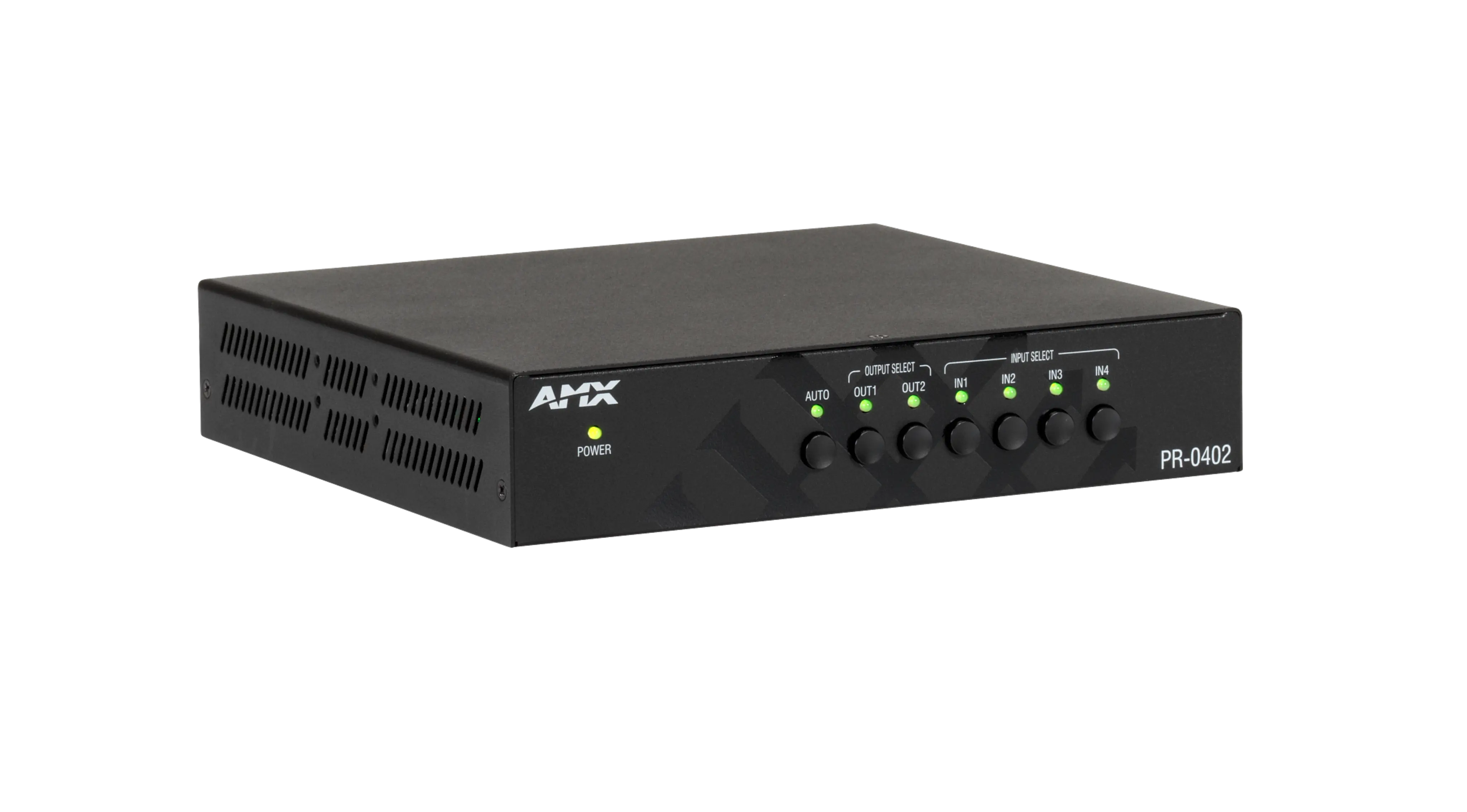

AMX Precis PR-0402 4x2 4K60 HDMI Matrix Switcher

The PR-0402 is the compact end of the AMX Precis line: four HDMI sources routed independently to two HDMI displays at up to 4096 x 2160 at 60 Hz with full 4:4:4 chroma. It is HDCP 2.2 compliant and passes HDR10+, Dolby Vision, and 36-bit Deep Color, so a modern media player or laptop reaches the display without the switcher becoming the weak link in the signal chain.

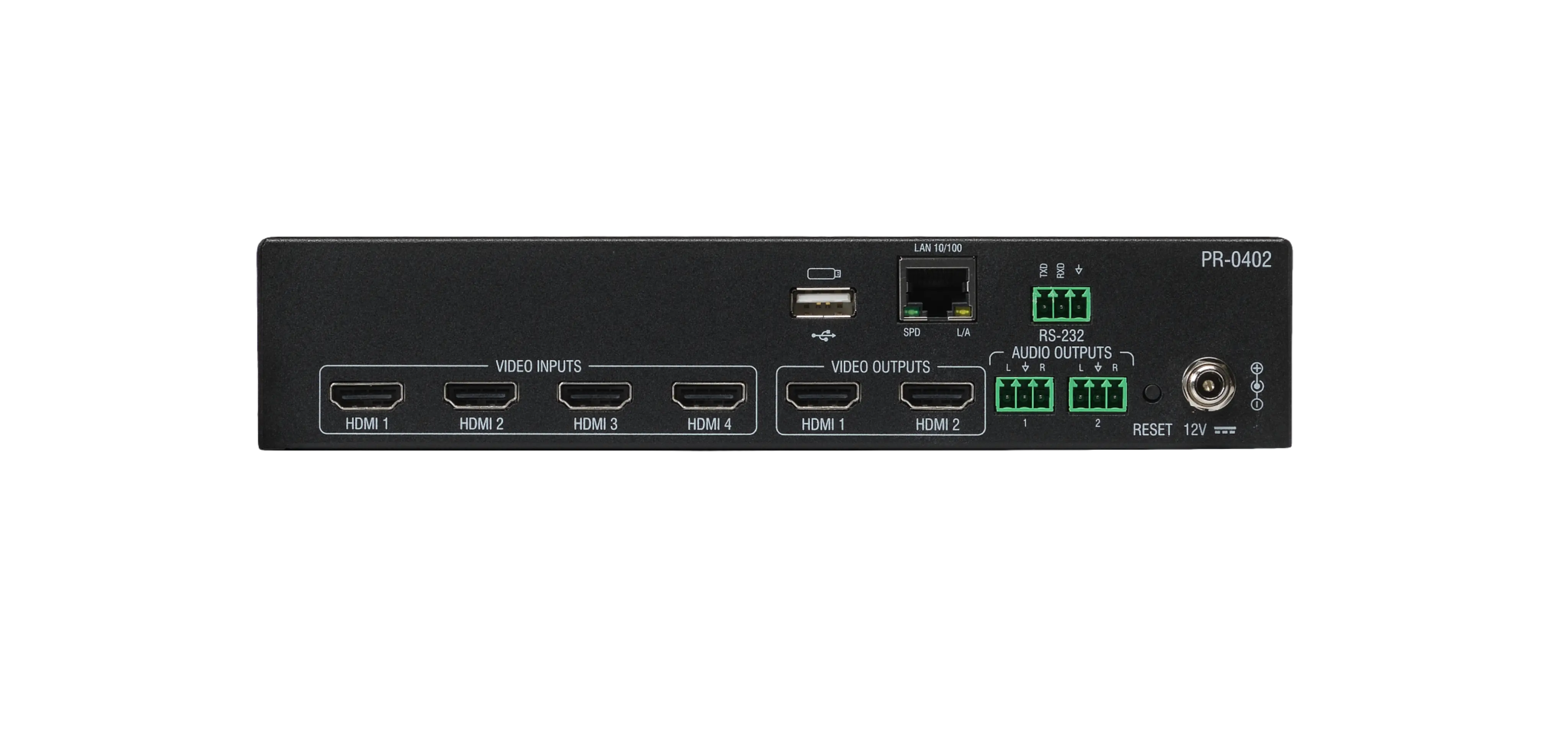

Each of the two outputs has a matching 3.5mm Phoenix terminal block that de-embeds the HDMI audio as unbalanced analog stereo, which is how most conference rooms feed a local DSP or amplifier. Control comes in over Ethernet or RS-232, with a USB Type-A program port on the unit itself, and the half-rack chassis measures 1.73 inches high by 8.4 inches wide so two units fit side by side in a single rack space.
