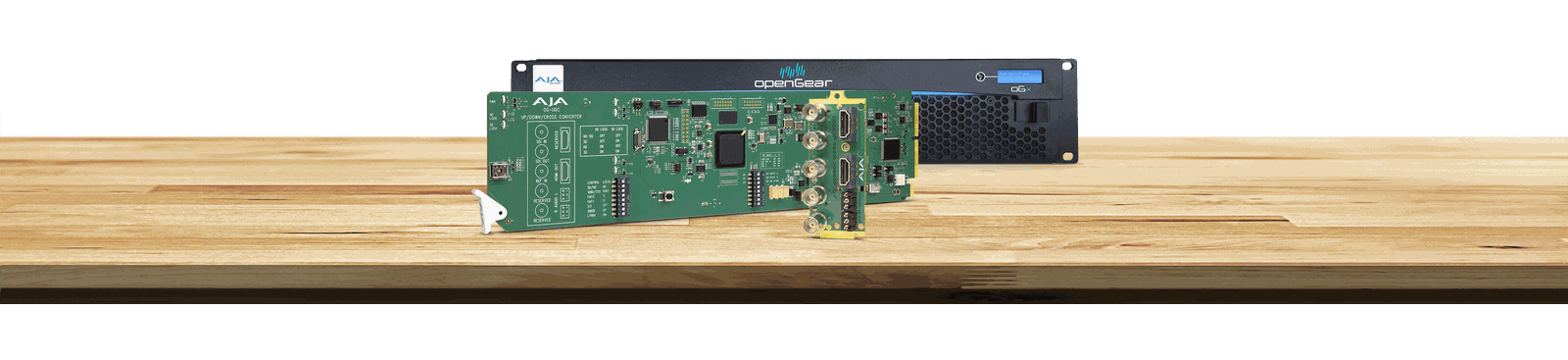

AJA OG-UDC openGear 10-bit Universal Up/Down/Cross-Converter
The OG-UDC is a 10-bit broadcast-quality openGear converter that bridges SD, HD and 3G-SDI resolutions with a single 3G-SDI input and output. It performs high-quality up, down and cross-conversions, including 1080p50/60, and manages loss of input through freeze, black or mute.
It carries sixteen channels of embedded SDI audio in and out plus an eight-channel HDMI audio output, and drops into high-density openGear 2RU frames. Remote control is provided by DashBoard software on Windows, macOS and Linux.
- Video I/O1x 3G-SDI BNC in/out
- FormatsSD/HD/3G up/down/cross to 1080p60
- Power7.0 W max per card
- Audio16-ch embedded SDI, 8-ch HDMI
- ReferenceFree run or external
| Video I/O | 1x 3G- BNC in/out |
|---|---|
| Formats | SD/HD/3G up/down/cross to 1080p60 |
| Audio | 16-ch embedded SDI, 8-ch |
| Reference | Free run or external |
| Control | Ross DashBoard |
| Power | 7.0 W max per card |
SDISerial Digital Interface. The coaxial video connection used in broadcast. It carries uncompressed video and embedded audio over long cable runs.
HDMIThe digital video and audio connector on cameras, monitors and computers. Cable runs are shorter than SDI.
