AJA OG-X-FR openGear-Compatible 2RU Rackframe openGear Frame

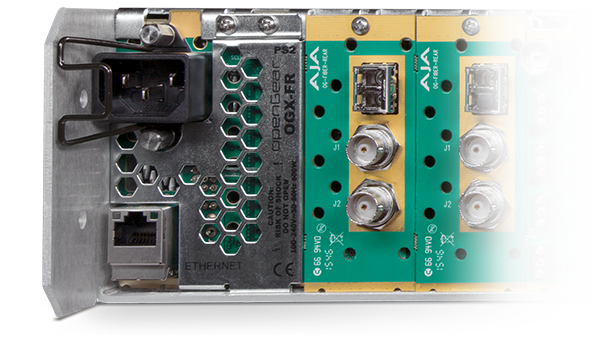

The OG-X-FR is AJA's 2RU openGear rackframe, built to hold up to 20 openGear cards from AJA or any certified openGear partner. Analog, digital, video, audio, SDI and IP modules can share the same chassis, and the modular rear panels that ship with each card let you mix BNC, twisted-pair audio and fiber connectivity in one frame. A front LCD reports frame name, IP address and fault state, and FrameGlow lighting gives you a status read from across the room.

A 600 watt supply feeds the frame, with a new high power mode that allows 23 watts per slot for demanding UltraHD, 12G-SDI and IP cards. The frame takes two front-loaded, hot-swappable supplies, each with its own cooling fan, status LED and front-mounted switch, so a second OG-X-PS gives you redundancy in critical rooms. A removable front door and air filter make fan servicing straightforward, the fold-down front panel gets you at any installed card without pulling the frame from the rack, and a preinstalled MFC-8322-S network card provides Ethernet access for Ross DashBoard on macOS, Windows and Linux.

Card Slots	20 slots, total 500 W available to cards
Max Card Power	15 W split rear module, 30 W standard rear module, 60 W double-wide
Power Supply	600 W, hot-swappable, second OG-X-PS optional for redundancy
Power Output	Output 1 12V 41.6A (500 W max), Output 2 -7.5V 5A (37.5 W max)
Reference Inputs	2 looping, 1 Vpp, analog sync or AES/EBU DARS, 75 ohm terminating
Control	Ross DashBoard, preinstalled MFC-8322-S network card, RJ-45
Size	2RU, 19.0 x 16.82 x 3.5 in (483 x 427 x 90 mm)
Weight	25 lb (11.3 kg) with frame, one power supply and control card
