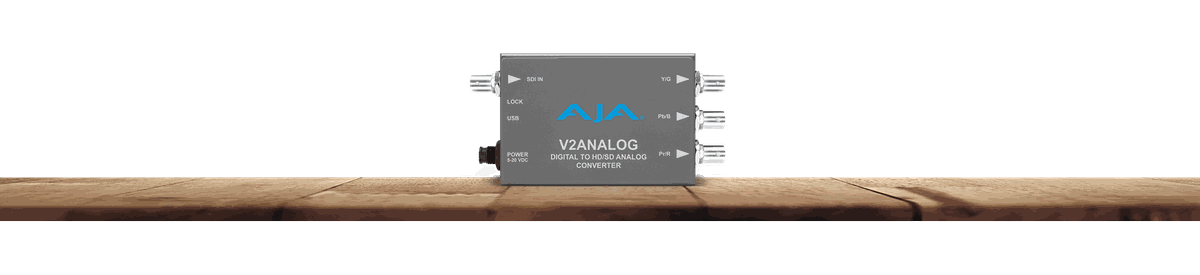

AJA V2Analog HD/SD-SDI to Analog Mini-Converter

The AJA V2Analog is a Mini-Converter that turns an HD or SD-SDI signal back into analog video over a full 10-bit path. It outputs component in YPbPr (SMPTE or EBU-N10), Betacam, or RGB, plus composite NTSC/PAL and Y/C (S-Video), making it a practical bridge from digital gear to legacy analog monitors, recorders, and AV systems.

It supports NTSC, PAL, 720p at 50/59.94/60, 1080i at 50/59.94/60, and 1080psf at 23.98/24/25, though it does not up-convert or down-convert between SD and HD. Configuration is set with on-unit DIP switches or remotely through AJA's Mini-Config software over USB. An included universal 5 volt DC supply powers the unit, with optional P-TAP battery operation, and AJA's five year warranty applies.

Function	SDI digital to analog conversion, 10-bit path, HD or SD
Inputs	SDI, HD-SDI
Outputs	Component (YPbPr, Betacam, RGB), Composite (NTSC/PAL), Y/C (S-Video)
Formats	NTSC, PAL, 720p 50/59.94/60, 1080i 50/59.94/60, 1080psf 23.98/24/25
Note	Does not up-convert or down-convert between SD and HD
Configuration	On-unit DIP switches or Mini-Config over USB
Power	Universal 5V DC supply included (optional P-TAP battery)
Warranty	5 year
