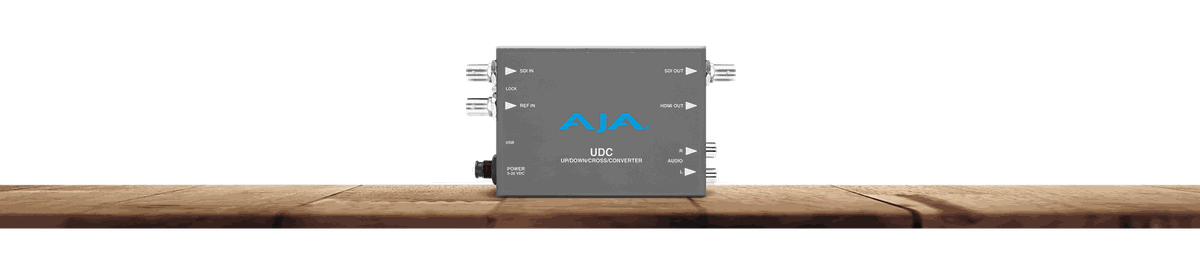

AJA UDC Universal 3G-SDI Up, Down, And Cross-converter

The UDC is a universal up, down, and cross-converter that bridges HD and SD resolutions over 3G-SDI with built-in frame synchronization. It offers SD/HD/3G-SDI in and out plus a simultaneous HDMI output for monitoring, along with a 2-channel unbalanced (RCA) analog audio output. A reference input lets the UDC lock to a house reference so its output stays in step with the rest of a facility.

Supported formats span 1080p, 1080PsF, and 1080i, 720p, and SD 625i, 576i, and 480i, with 3G-SDI Level A operation. Control is by local dipswitches, with additional setup over USB using AJA's Mini-Config application, and it runs from the included universal power supply.
