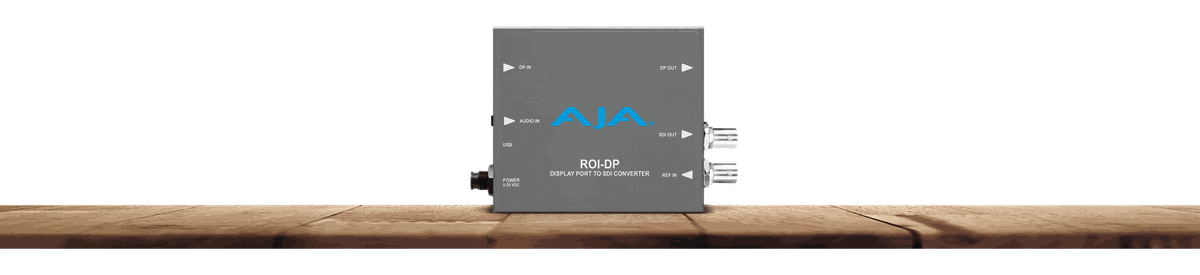

AJA ROI-DP DisplayPort to 3G-SDI Scan Converter

The ROI-DP brings a DisplayPort computer signal into the SDI world. Rather than force the whole desktop into a fixed raster, it lets you interactively select a region of interest from the incoming signal and control how that region is scaled to the SDI output using AJA's scaling engine, with up, down, and cross conversion available. A DisplayPort loop-through keeps the source connected to a local monitor while the ROI-DP extracts to SDI in-line.

It accepts inputs up to WUXGA and outputs up to 1080p on 3G/HD/SD-SDI. Audio can come from the 3.5mm analog input (2-channel) or from up to 8 channels embedded in the DisplayPort signal, with source and routing chosen in Mini-Config and embedded into the SDI output. Power comes from AJA's universal mini-converter supply.
