Whirlwind MLTSP1X2 and MLTSP1X3 Rack Mic Splitters

These are the rack versions of the SP1X2 and SP1X3: four channels of passive, transformer isolated microphone splitting in one rack space. This is the size that fits the common job of sending a handful of mic level sends to a video truck or a remote broadcast without giving up the house feed.

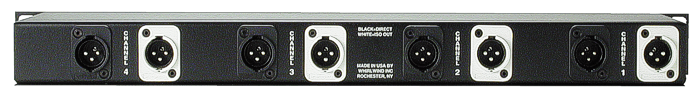

The MLTSP1X2 provides one direct and one isolated output per channel, the MLTSP1X3 one direct and two. Each isolated output has a front panel ground lift switch. Inputs are female XLRs on the front panel and outputs are male XLRs on the rear.

Type	Four-channel passive microphone splitter, rack mount
Format	Single rack space
MLTSP1X2 outputs	One direct, one isolated per channel
MLTSP1X3 outputs	One direct, two isolated per channel
Ground lift	Front panel switch per isolated output
Operating level	-50 dB to +4 dBu
Frequency response	20 Hz - 20 kHz, +/-1 dB
Connections	Female XLR inputs front, male XLR outputs rear
