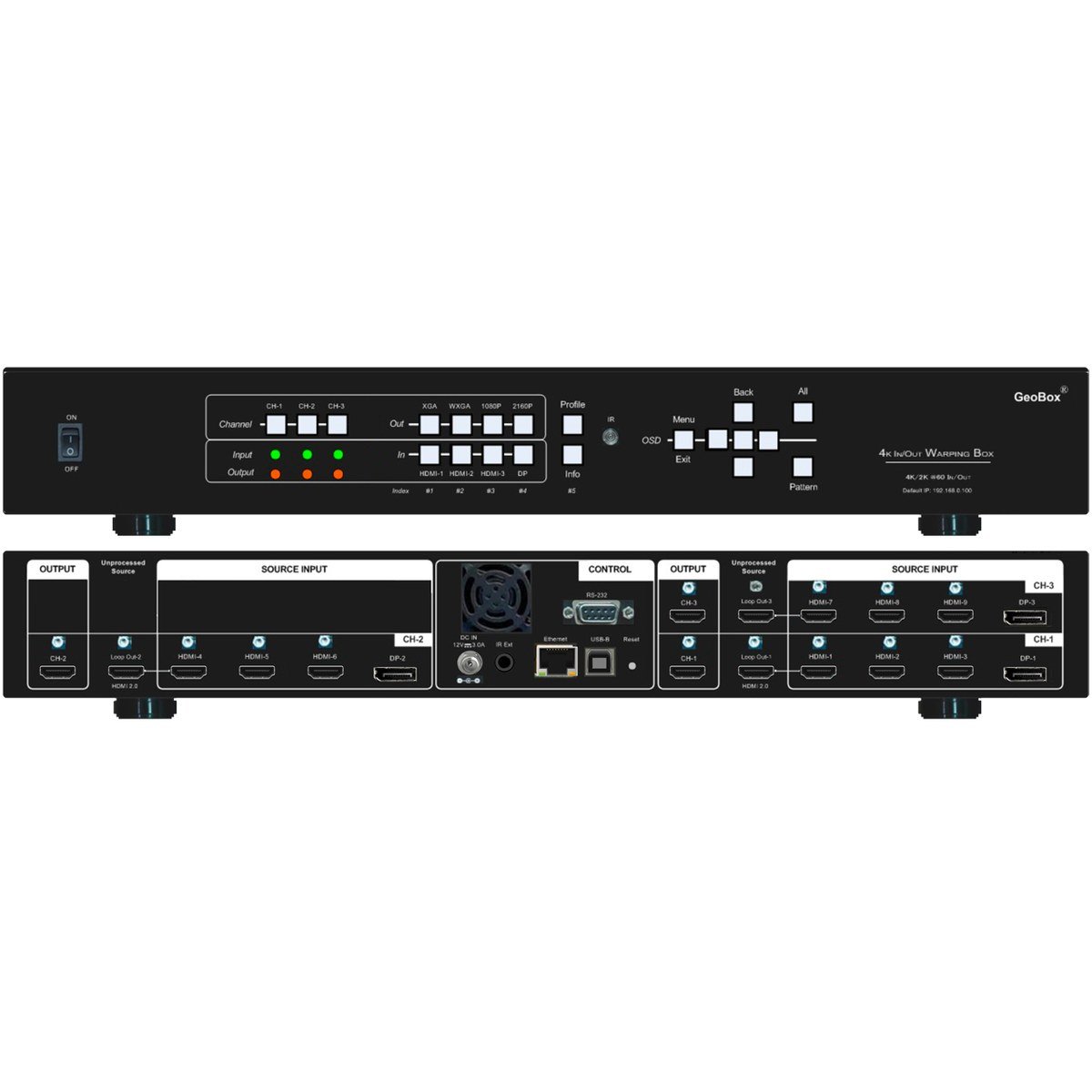

VigilLink GeoBox UD103 Three-channel 4K Edge Blending Processor

The UD103 pairs VigilLink's UD100-series edge blending with a built-in multiviewer, so a three-projector blended and warped image can share the chassis with PIP, POP, or split-view previews of other sources - useful for control rooms and museum/attraction installs where an operator needs to see what's live before it hits the blended output. It's built for flat, curved, and 360-degree screen geometries, not just simple rectangular blends.

Inputs run up to 3x HDMI 2.0b plus 1x DisplayPort 1.4, with digital input as high as 7680x2160 @30Hz, 7680x1200 @60Hz, or 4096x2160 @60Hz. A main HDMI 2.0 output plus an HDMI 2.0b loop output feed the projectors while daisy-chaining to additional GeoBox units, and for larger arrays a UD103 cascades with a UD102 (five-projector systems) or additional UD10x units without a PC or extra hardware in the signal path.
