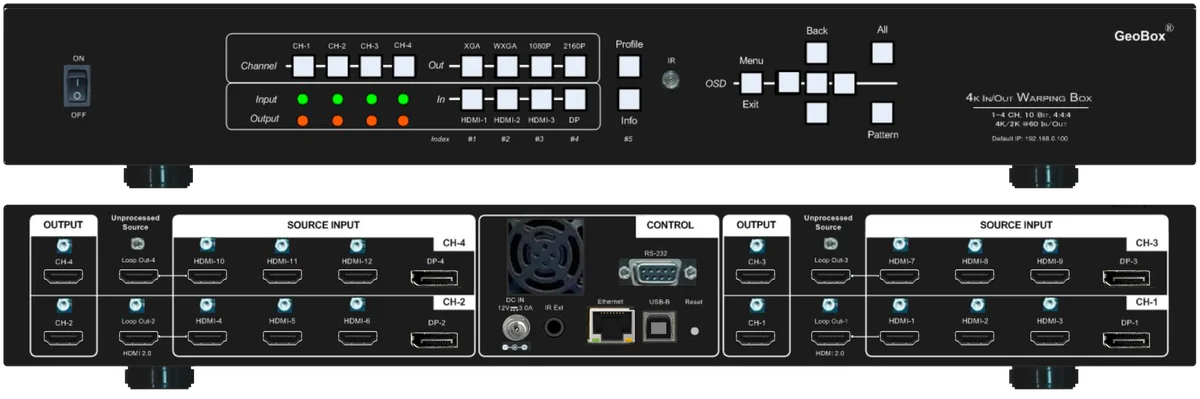

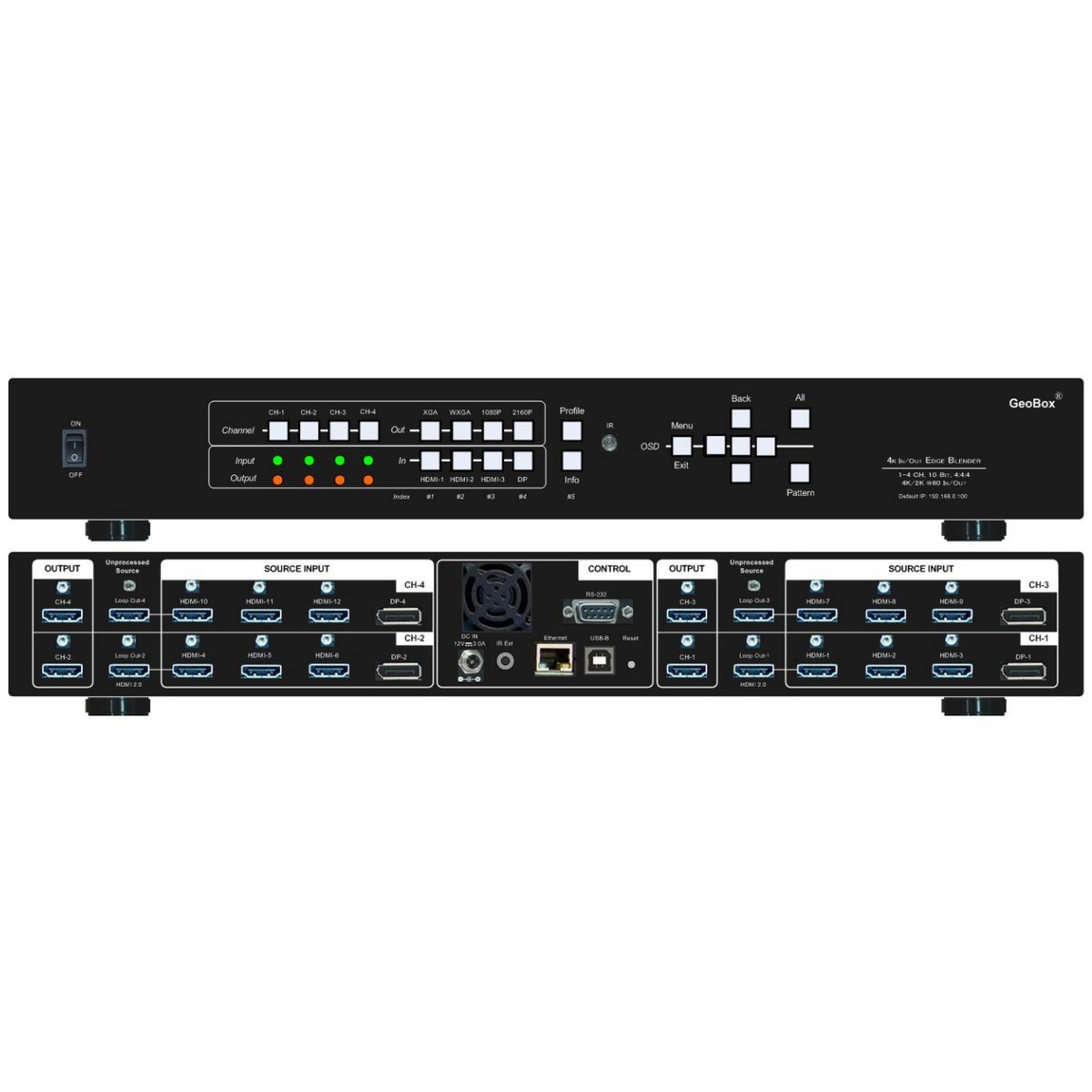

VigilLink GeoBox UD104 Four-channel 4K Edge Blending Processor

The UD104 tops VigilLink's UD100 series at four projectors, pairing edge blending with a built-in multiviewer so a blended and warped image can share the chassis with live previews of other sources - useful for control rooms and museum/attraction installs where an operator needs to see what's live before it hits the blended output. It's built for flat, curved, and 360-degree screen geometries, not just simple rectangular blends, and can show up to 16 input sources at once across PIP, POP, and 3/4 split-view layouts.

Inputs run up to 3x HDMI 2.0b plus 1x DisplayPort 1.4, with digital input as high as 7680x2160 @30Hz, 7680x1200 @60Hz, or 4096x2160 @60Hz. A main HDMI 2.0 output plus an HDMI 2.0b loop output feed the projectors while daisy-chaining to additional GeoBox units in a 17.3 x 7.5 x 2.3 in, 6 lb chassis. For larger arrays, a UD104 cascades with a UD101 (five-projector systems) or additional UD10x units without a PC or extra hardware in the signal path.
