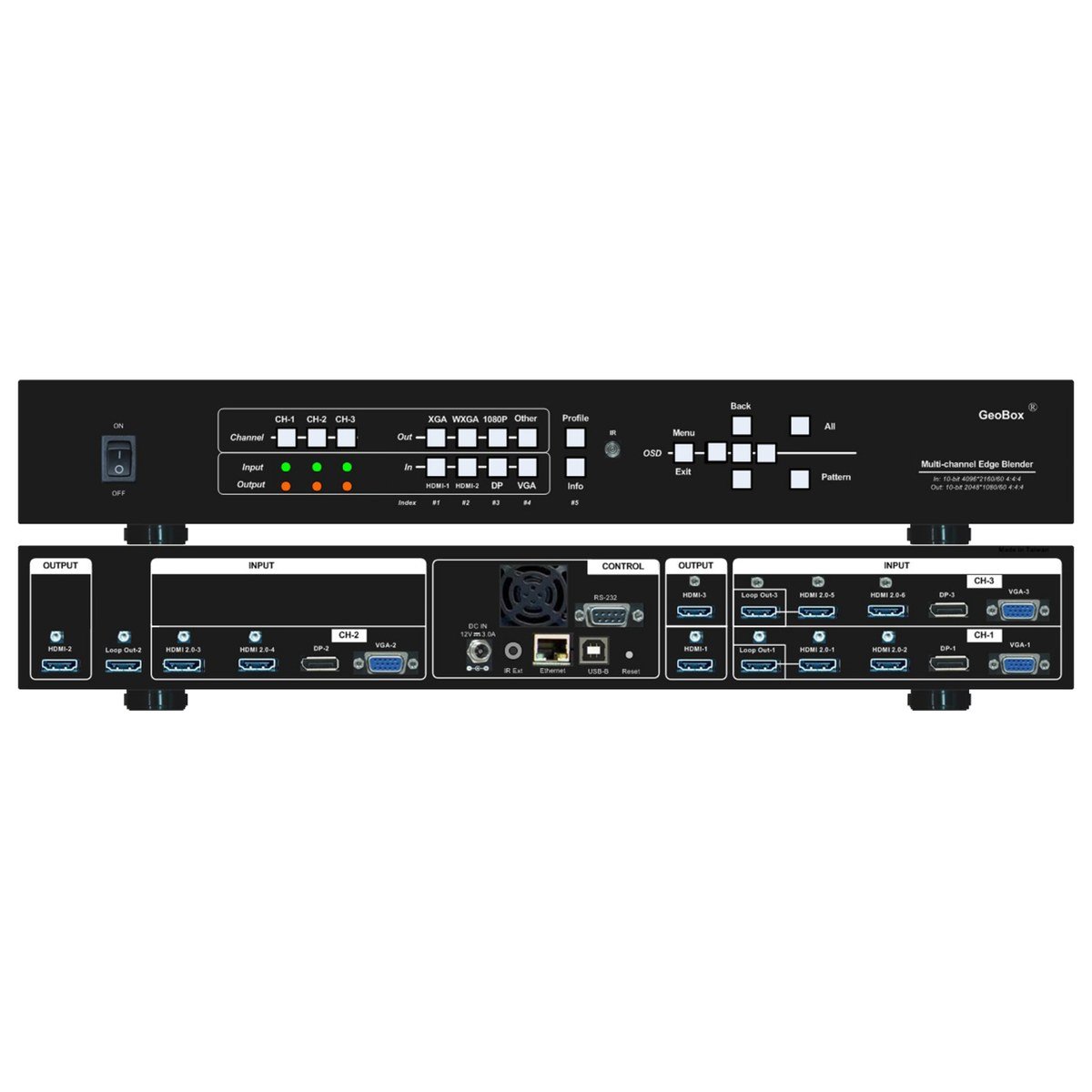

VigilLink GeoBox M813 Three-channel 4K-in / 2K-out Modular Edge Blending Processor

The M813 is the three-projector member of VigilLink's M810 series, a modular edge blending processor built for sophisticated blending, image warping, and stacking without the projection-mapping overhead of the M800EX line. Each of its three processing modules accepts two HDMI, one DisplayPort, and one VGA input and outputs up to WUXGA (2048x1080 @60Hz), so one 5.7 lb chassis handles a three-projector blended array.

A 10-bit engine drives geometry alignment and edge blending to up to 120x68 control points per channel and supports non-VESA standard input timings, which matters for unusual source signals in live-event and museum installs. A built-in PIP/POP multiviewer lets an operator preview or compose multiple sources on the blended output, and control runs through the front keypad, IR remote, USB, a built-in web page, or Ethernet.
