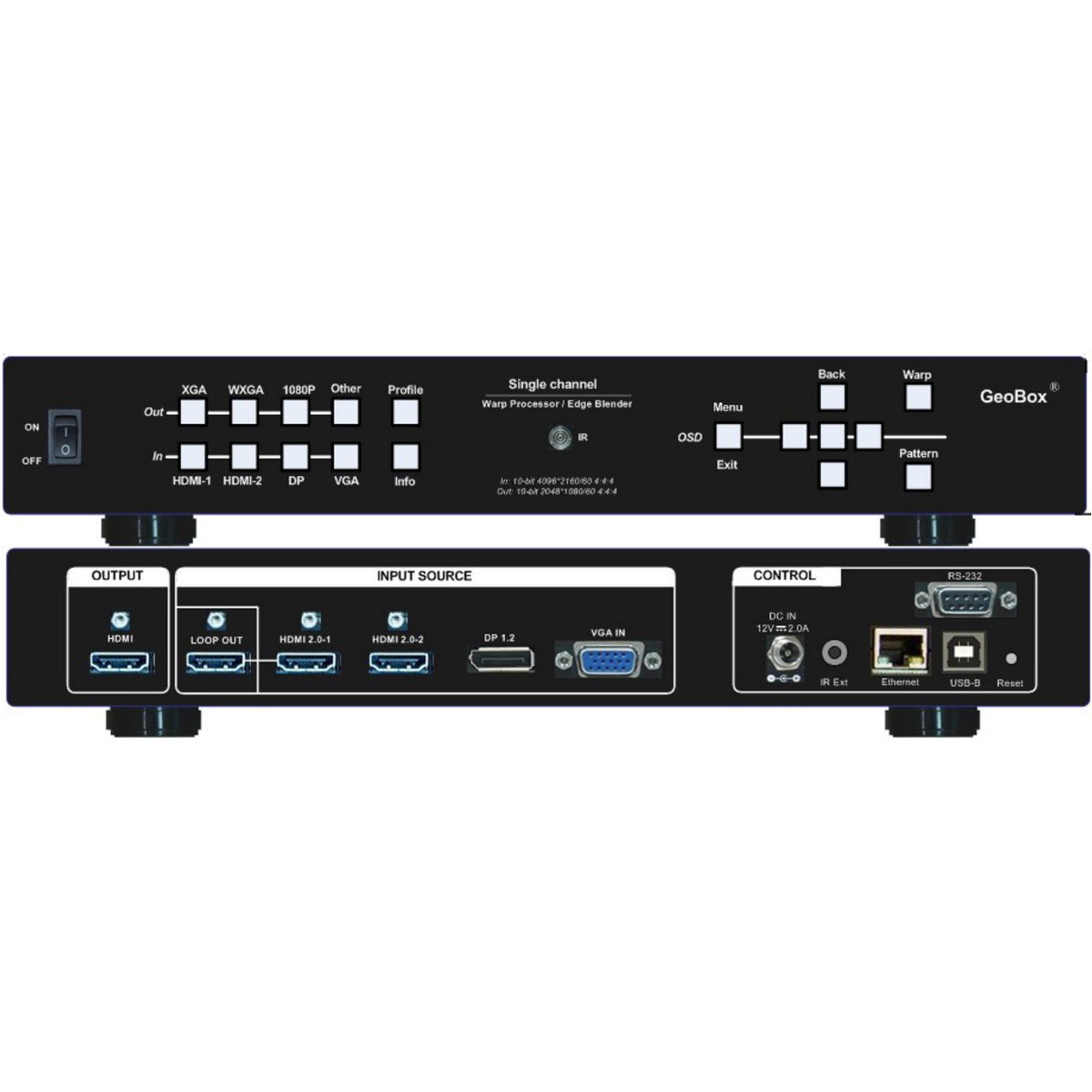

VigilLink GeoBox M811 Modular Single-channel Edge Blending Processor

The M811 handles edge blending for a single channel with the same 120x68-point warp grid as the M801ex, but adds picture-in-picture/picture-outside-picture so a secondary source - a logo, a camera feed, a confidence window - can sit on top of or beside the primary blended image without a separate switcher in the chain. It takes two HDMI 2.0b, one DisplayPort 1.2a, and one VGA input, outputting up to WUXGA/2048x1080 at 60Hz.

Full 4:4:4 color sampling at up to 30-bit depth keeps blended edges free of banding, and the same 33ms two-frame latency as the rest of the M-series keeps it usable with live or interactive content. It shares its 11.9 x 6.5 x 1.7-inch chassis and 3.3 lb weight with the M801ex, drawing 8.4W from a 12V/3.3A supply, and carries a 6-year limited warranty.
