Vaddio Twin Mono AMP Single-Input Two-Channel Amplifier

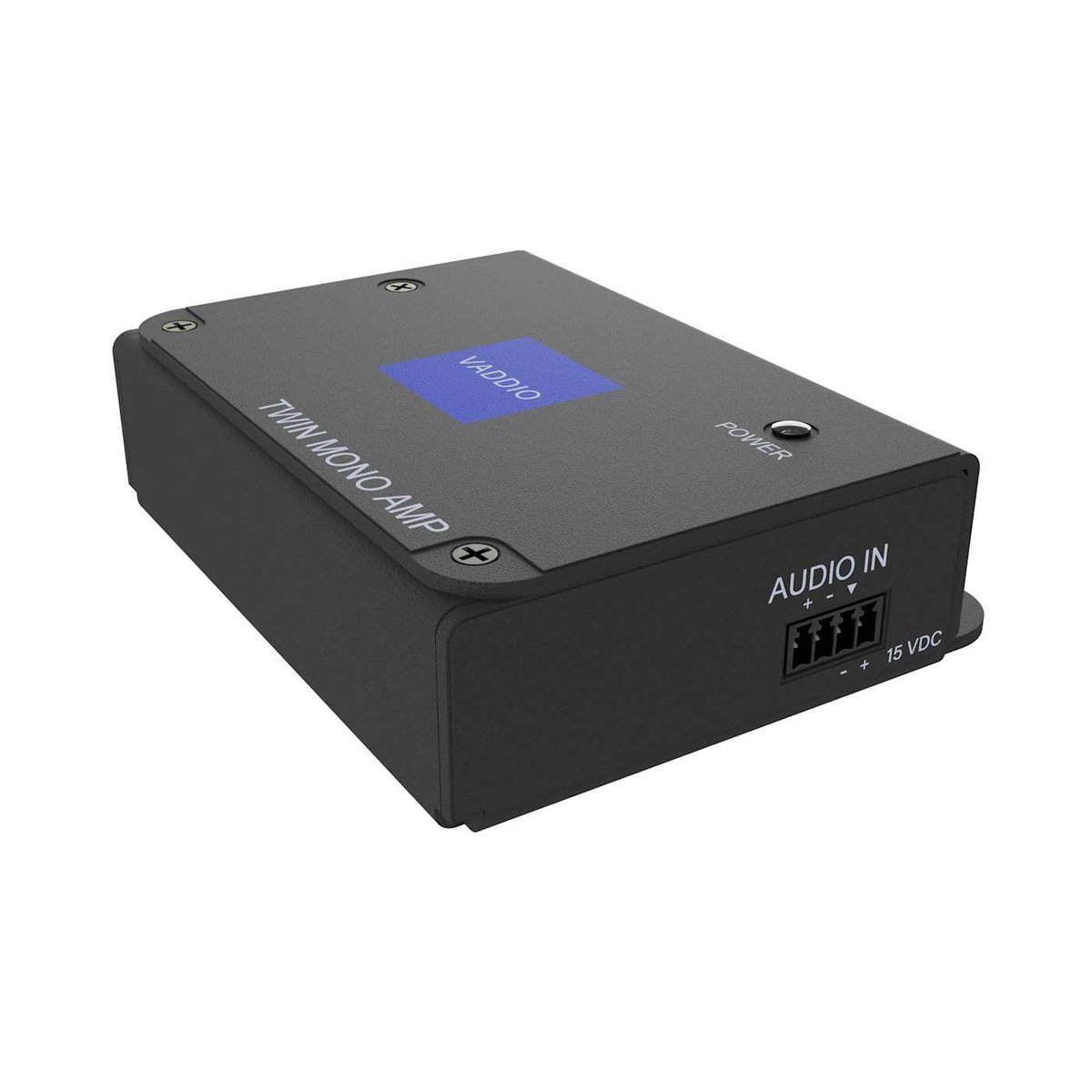

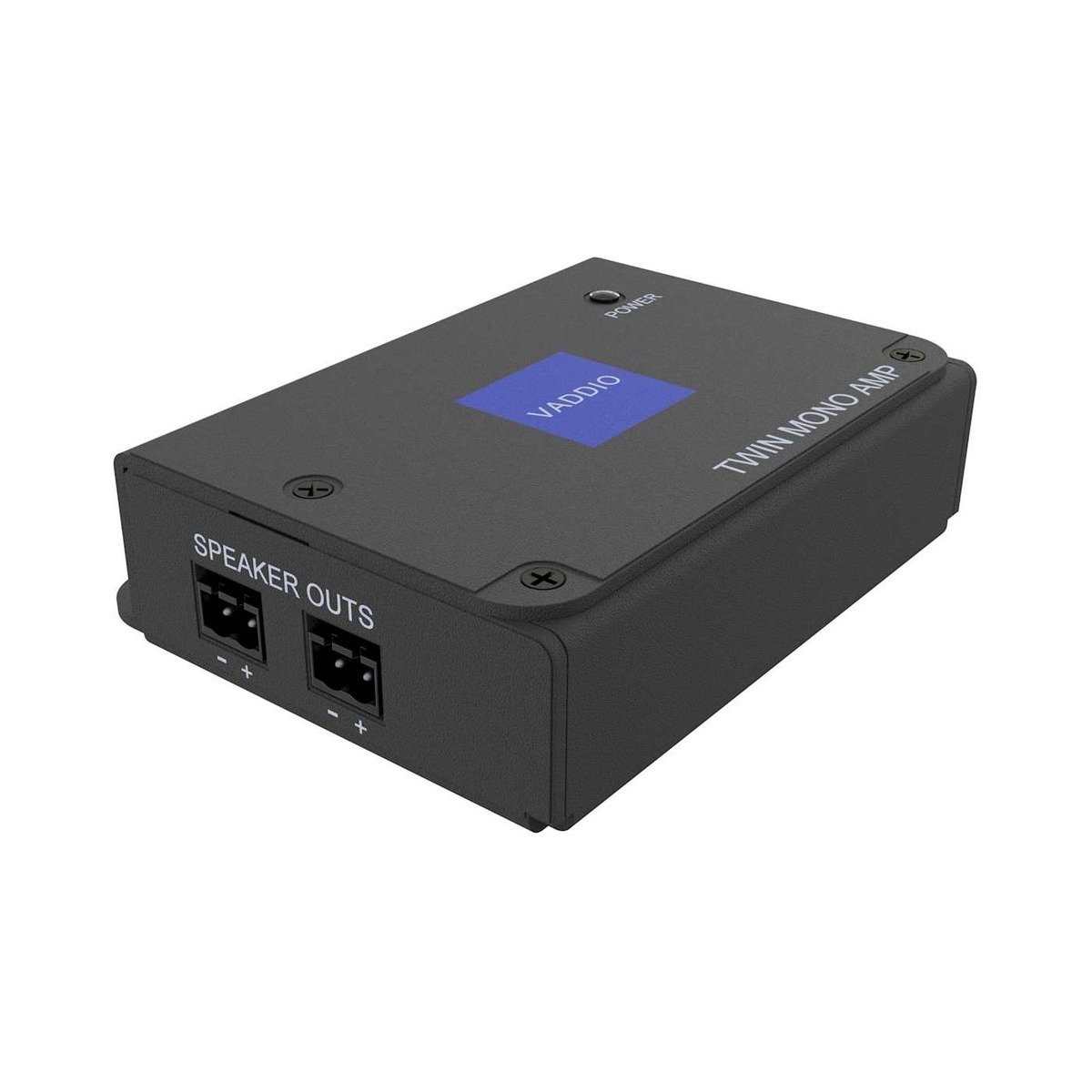

The Twin Mono AMP takes one balanced mono audio input and drives two speakers with it, 15 W per channel into 4 ohms minimum. It is aimed at the ordinary conference-room job of putting sound on both sides of a display without installing a rack amplifier: a mounting flange, a power light, and Phoenix-style connectors on both ends.

It runs on 9 to 20 VDC at 30 W and ships with a 15 V 2 A supply. Vaddio includes an 8 in (20 cm) cable that plugs straight into a ConferenceSHOT AV camera's speaker output, plus a pair of 2-conductor 5 mm Phoenix plugs for making custom lengths on site. The chassis is 4.48 in wide, 1.25 in deep and 3.6 in high at 1.1 lbs (0.5 kg).

Input	Balanced audio, one channel, greater than 100K ohms
Output	Two channels (monophonic)
Output Power	15 W per channel
Minimum Output Impedance	4 ohms per channel
Power Requirements	9 - 20 VDC, 30 W (ships with 15 V 2 A supply)
Dimensions	4.48 in W x 1.25 in D x 3.6 in H (11.4 x 3.2 x 9.1 cm)
Weight	1.1 lbs (0.5 kg)
Included	Twin Mono AMP, 15 V 2 A power supply, 8 in ConferenceSHOT AV audio cable, two 2-conductor 5 mm Phoenix plugs
