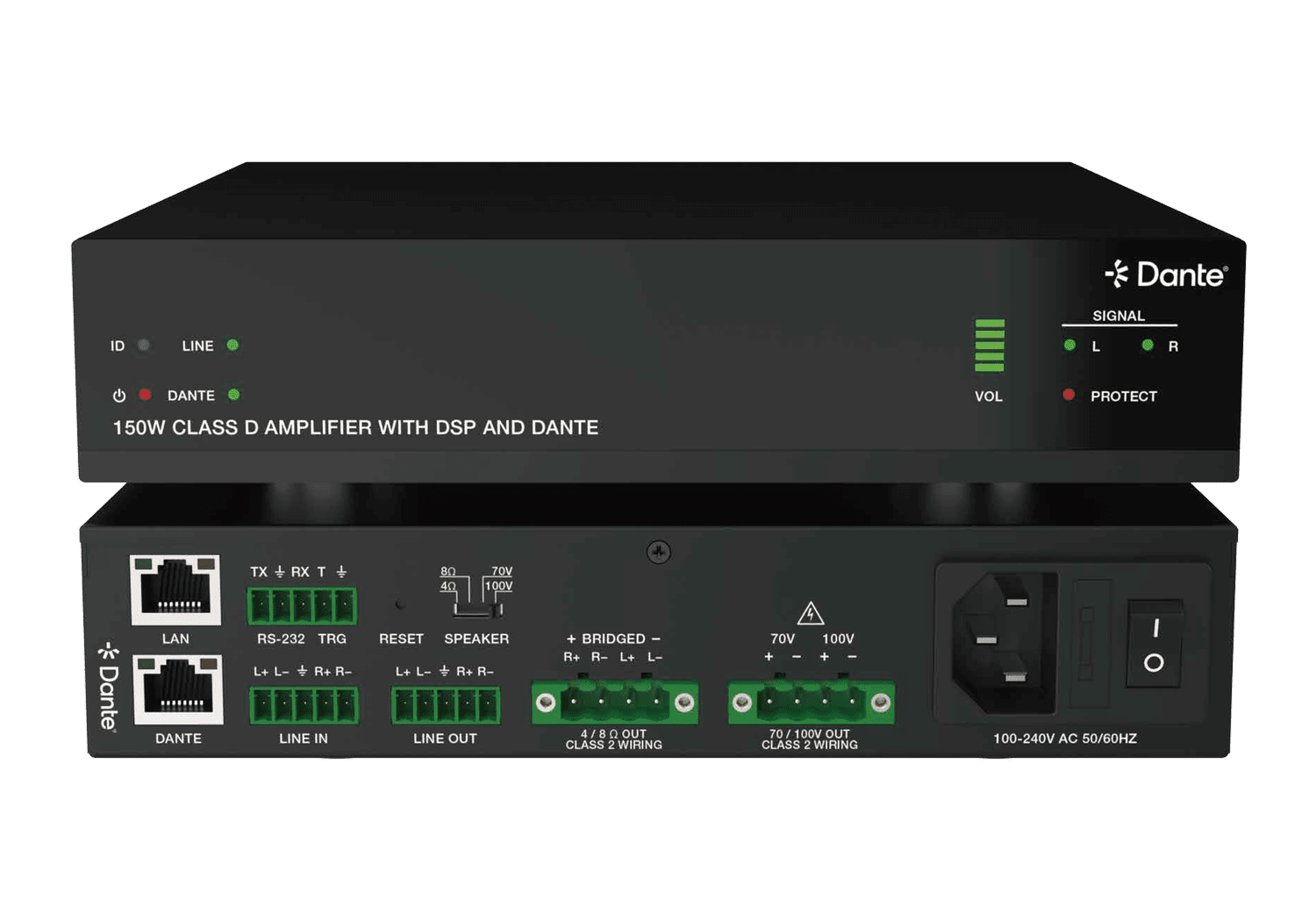

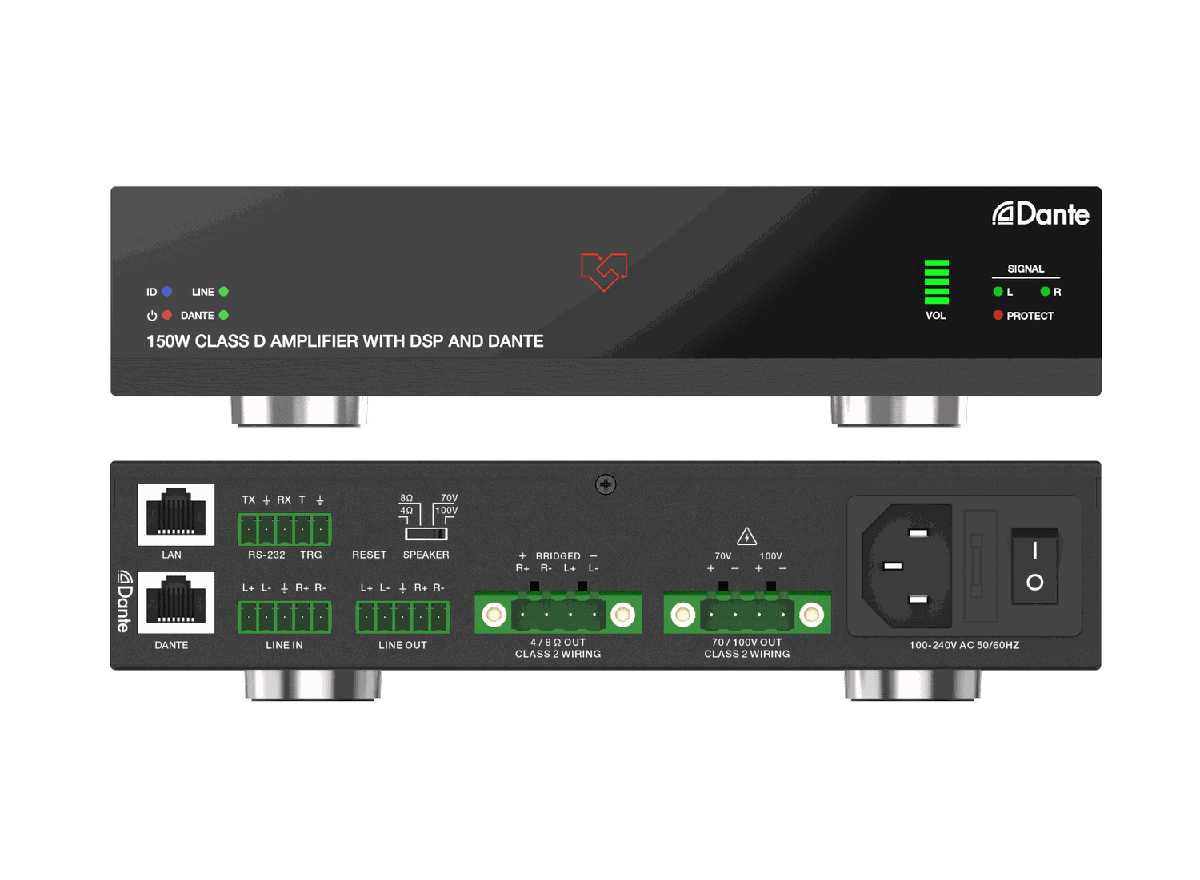

VigilLink VLDT-A2AM150 2-Channel 150W Class D Dante Amplifier with DSP

The VLDT-A2AM150 takes two channels of Dante audio off the network and drives loudspeakers directly, at 2x75W into 4 or 8 ohms or 150W bridged mono. Output mode switches between low impedance and constant voltage, so the same amplifier serves a pair of bookshelf speakers in a huddle room or a 70V/100V ceiling run down a corridor.

Dante input and output run at 48kHz with 24-bit conversion. On-board DSP handles input gain, output EQ, and volume per channel, so the amplifier does its own tuning instead of depending on an upstream processor. That keeps a small system to one network cable and one speaker run.

Audio Formats	Dante: PCM 2-channel, 44.1kHz-96kHz, 16/24-bit Analog Line: Balanced 2-channel, Max 2VRMS Amplifier Output: Max 24.5VRMS (Lo-Z), 70V/100VRMS (Hi-Z)
Analog Audio Output	1x Balanced stereo line output (5-pin 3.81mm Phoenix, Max 2VRMS)
Sampling Rate	48kHz (24-bit A/D and D/A conversion)
Frequency Response	20Hz - 20kHz @ +/-3dB
Control Ports	1x RS-232/Trigger (5-pin 3.81mm Phoenix, 5-12V trigger input) 1x LAN (RJ45) for Web GUI control
Housing	Front Panel: Aluminum Rear Case: Metal Enclosure
Dimensions	240mm [W] x 210mm [D] x 44mm [H] 9.45" [W] x 8.27" [D] x 1.73" [H]
Weight	1.88kg (4.14 lbs)
