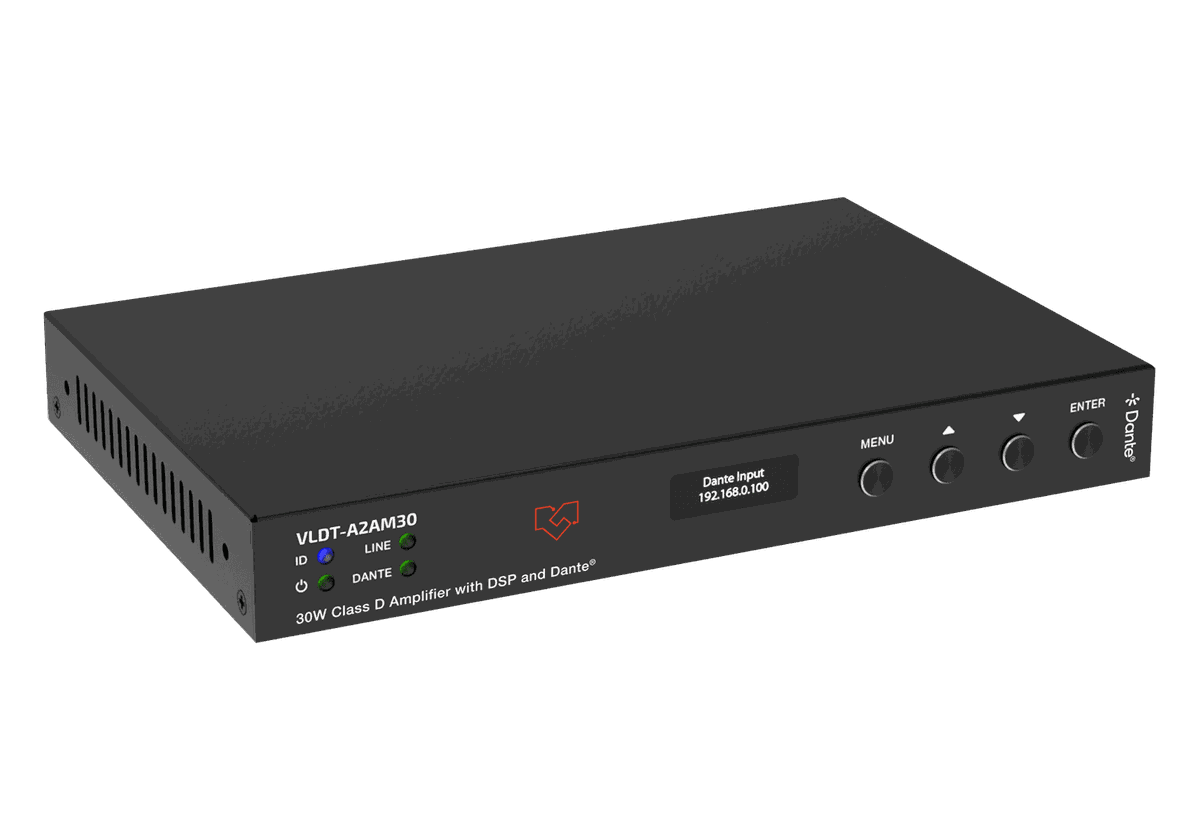

VigilLink VLDT-A2AM30 30W Class D Dante Amplifier with Mic and Line Inputs

The VLDT-A2AM30 is a two-channel Class D amplifier for small rooms, delivering 2x15W into 4 or 8 ohms or 30W bridged mono. It takes two channels of Dante audio plus two channels of balanced or unbalanced analog, and the analog input accepts a microphone with 48V phantom power.

On-board DSP covers gain, ducking, mixing, matrixing, equalization, volume, and delay, which is enough to run a paging or presentation zone without a separate processor. Control comes from front panel buttons, RS-232, TCP/IP, or the built-in web GUI.

Network Bandwidth	100M

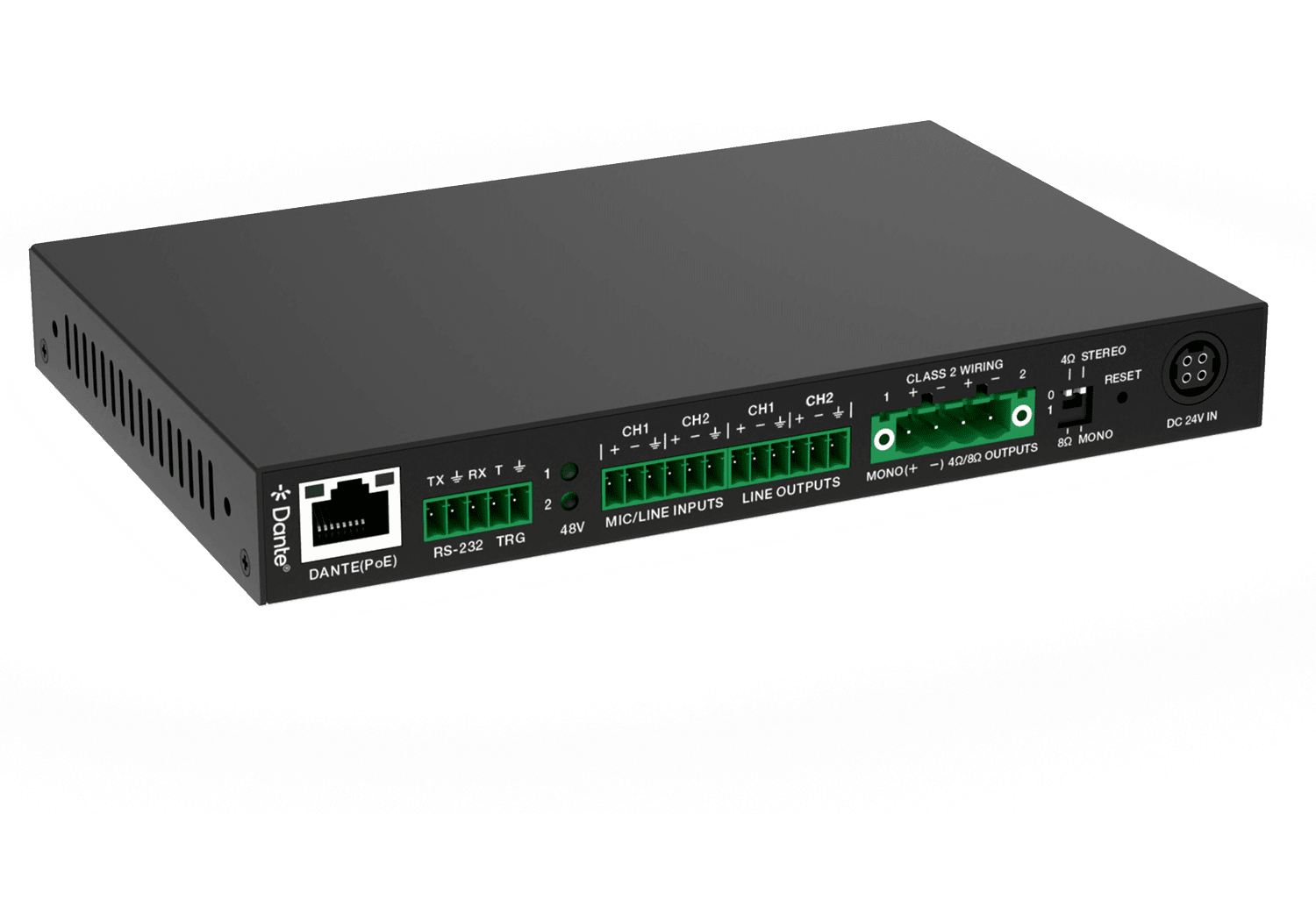

Input	1x MIC/LINE IN [6pin-3.5mm phoenix connector]
Output	1x LINE OUT [6pin-3.5mm phoenix connector]; 1x 4/8Ω AMP OUT [4pin-5.08mm locking phoenix connector]
Transmission Distance	328ft/100m (CAT6/6A/7)
Frequency Response	20Hz to 20kHz (-/+0.5dB)
Dynamic Range	>100dB@0dBu, 1kHzA-weighted
Audio S/N Ratio	>100dB@0dBu, 1kHzA-weighted
Audio THD+N	< 0.01% at +4dBu, 1KHz
