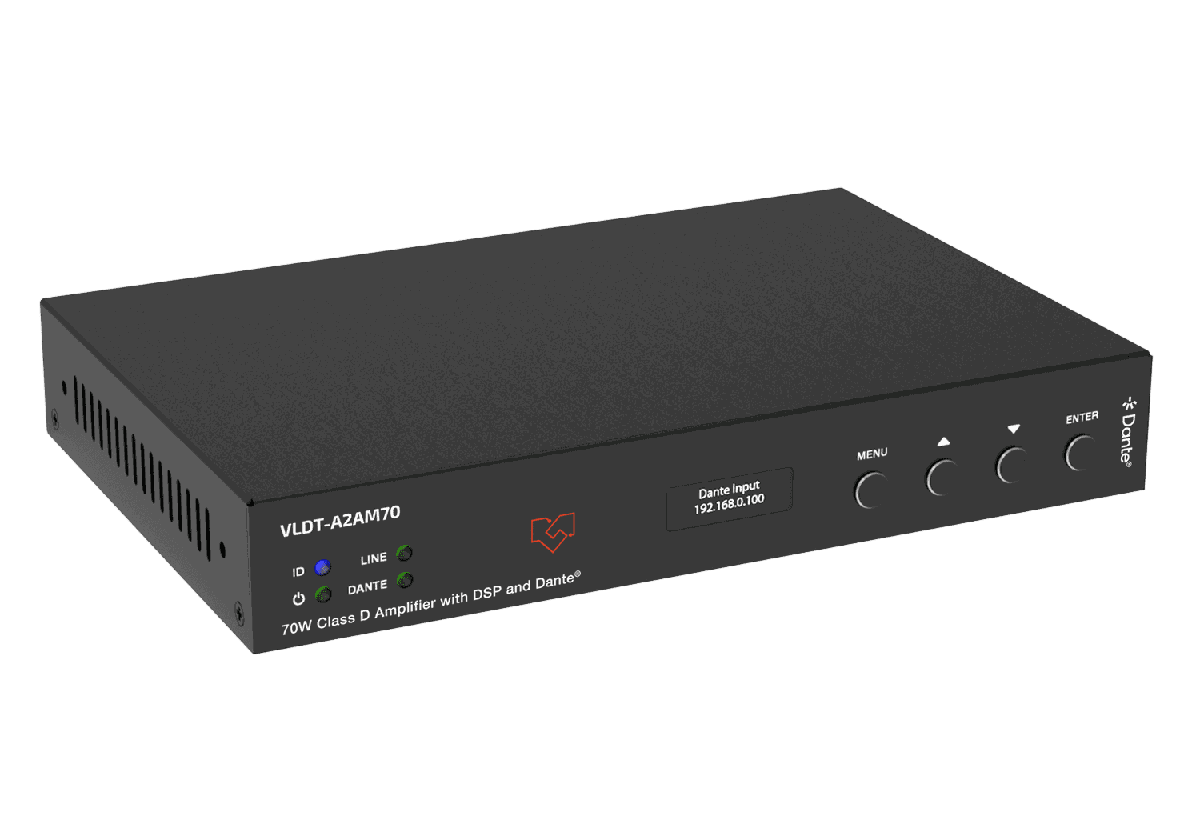

VigilLink VLDT-A2AM70 70W Class D Dante Amplifier with Mic and Line Inputs

The VLDT-A2AM70 is the higher-output member of VigilLink's compact Dante amplifier line, delivering 2x35W into 4 or 8 ohms or 70W bridged mono. It accepts two Dante channels plus two channels of balanced or unbalanced analog, with 48V phantom power available for a microphone on the analog input.

DSP on board handles gain, ducking, mixing, matrixing, equalization, volume, and delay, so a classroom or conference zone can be tuned and left alone. Front panel buttons, RS-232, TCP/IP, and a web GUI all reach the same settings.

Network Bandwidth100M

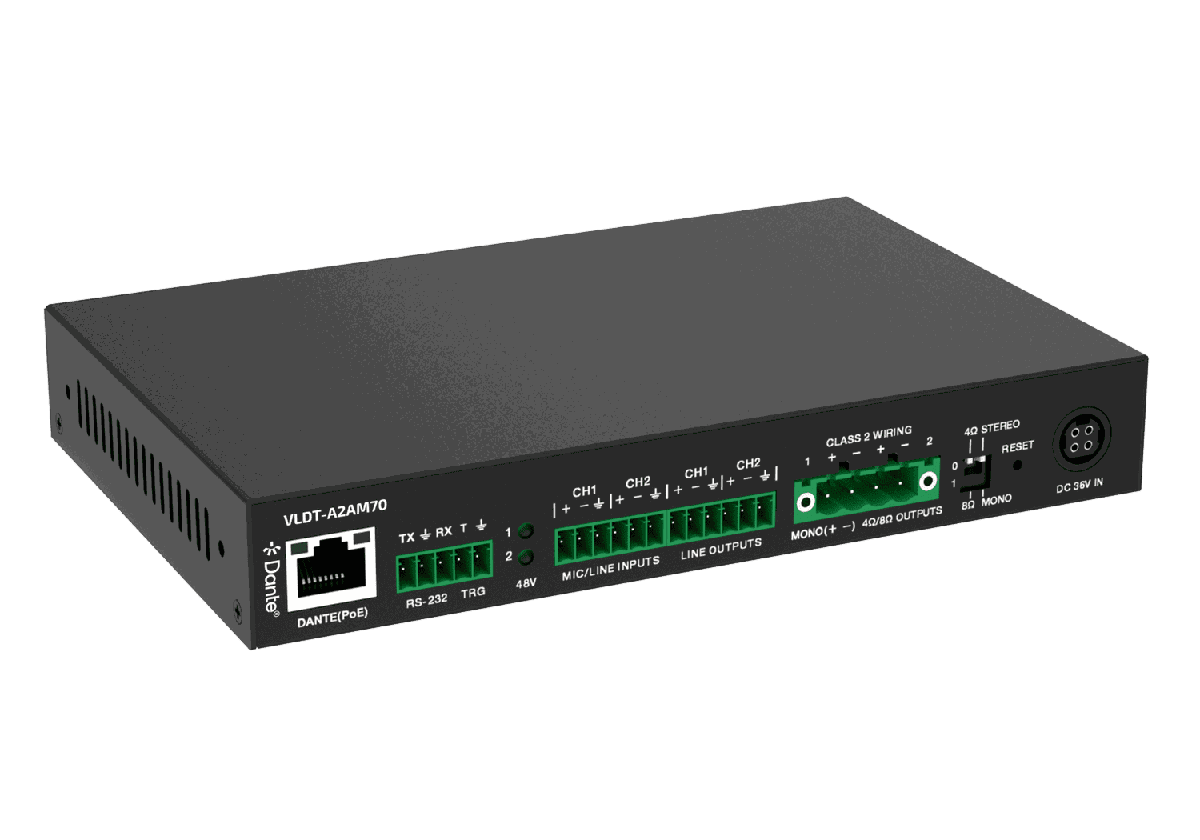

Input1x MIC/LINE IN [6pin-3.5mm phoenix connector]
Output1x LINE OUT [6pin-3.5mm phoenix connector]; 1x 4/8Ω AMP OUT [4pin-5.08mm locking phoenix connector]
Transmission Distance328ft/100m (CAT6/6A/7)
Frequency Response20Hz to 20kHz (-/+0.5dB)
Dynamic Range>100dB@0dBu, 1kHzA-weighted
Audio S/N Ratio>100dB@0dBu, 1kHzA-weighted
Audio THD+N< 0.01% at +4dBu, 1KHz
