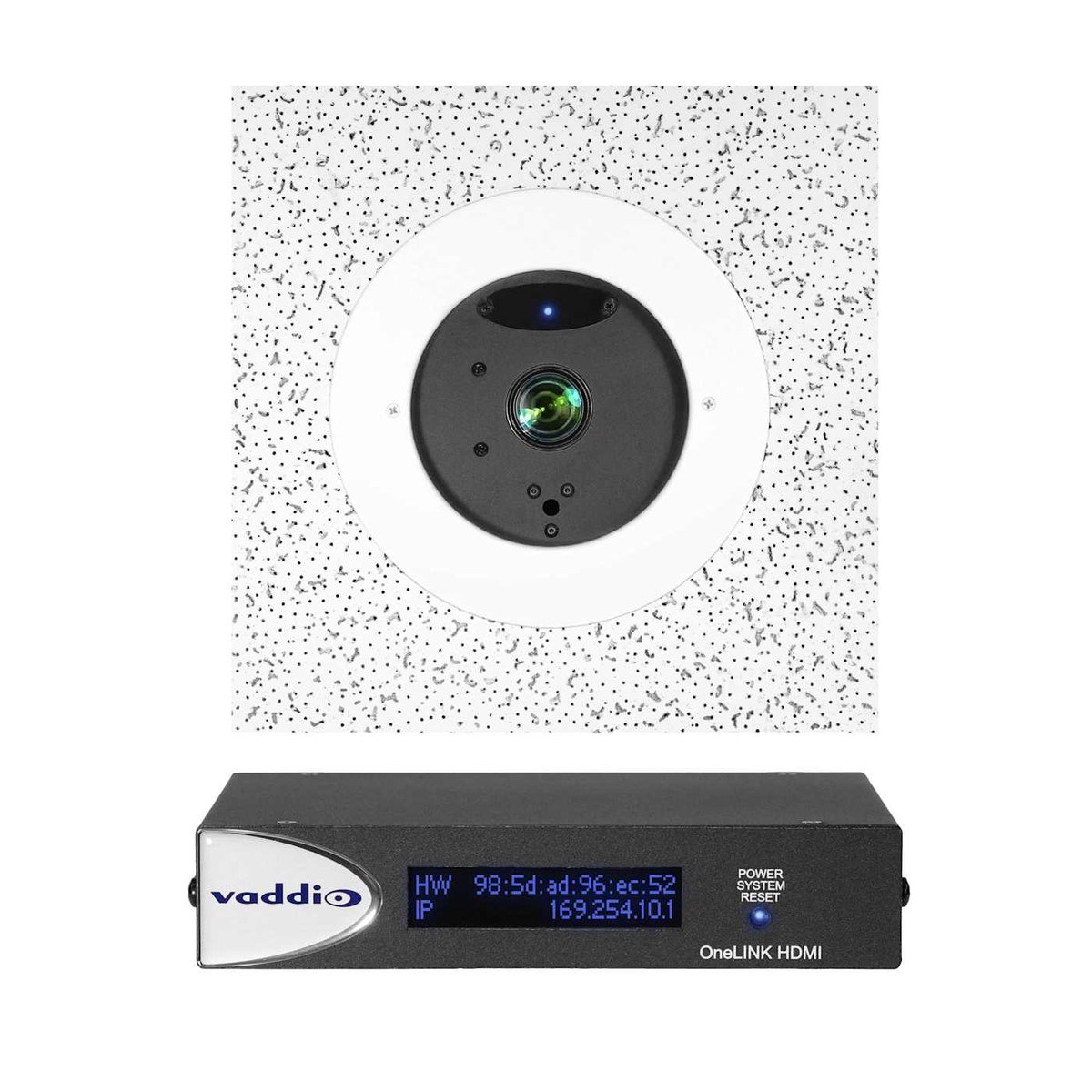

Vaddio DocCAM 20 HDBT OneLINK HDMI System

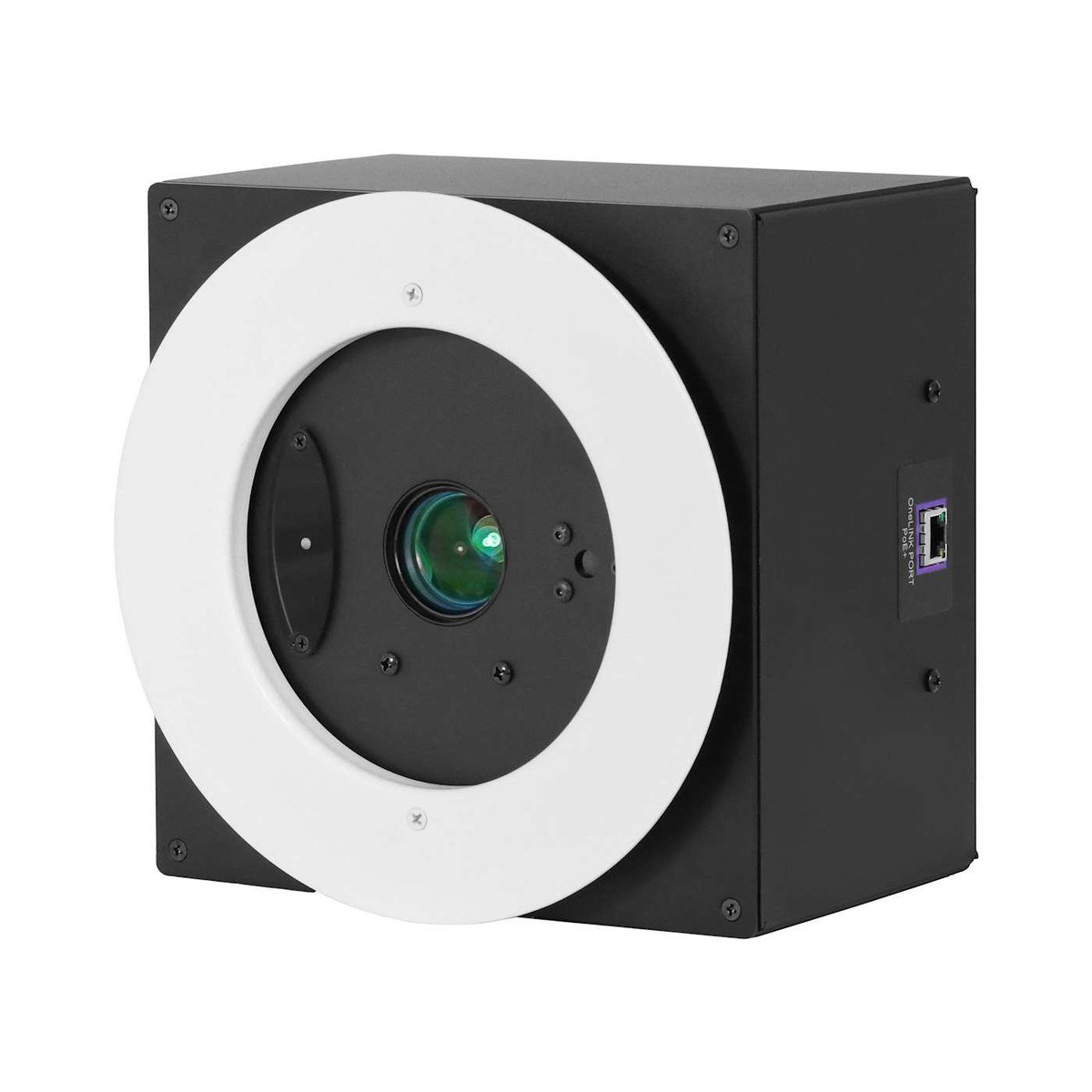

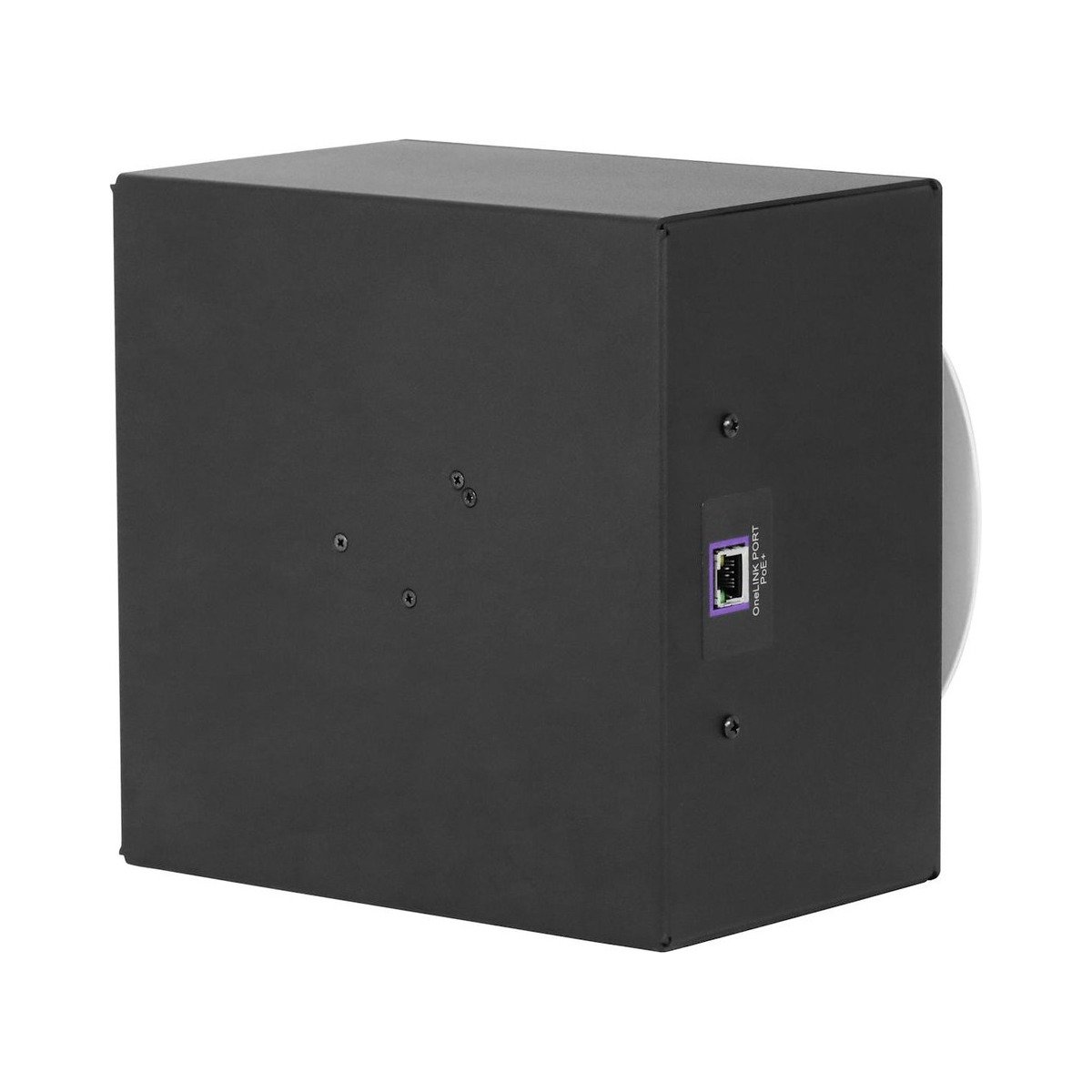

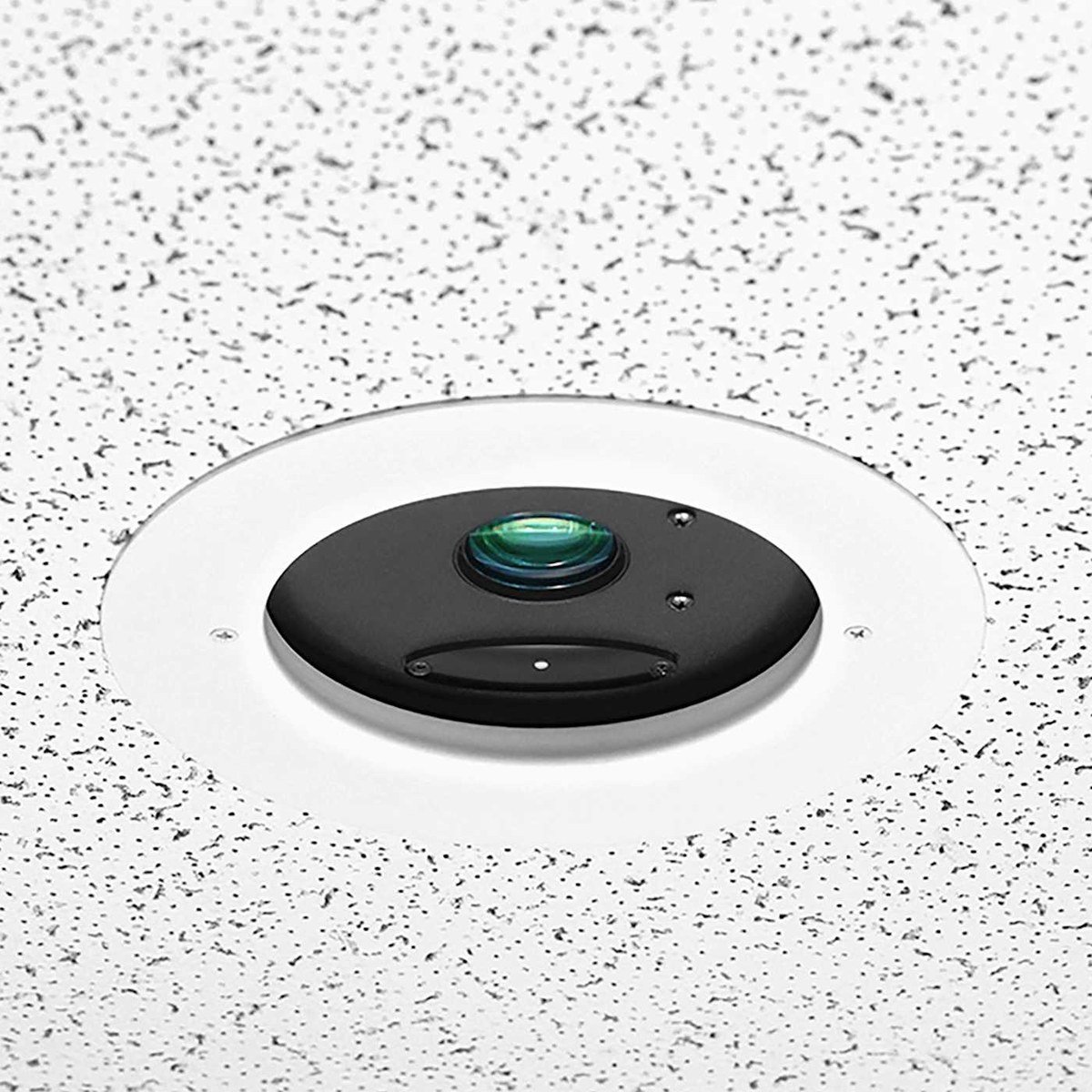

The DocCAM 20 HDBT is a recessed, in-ceiling document camera that looks down on a table or workspace to capture notes, objects, and demonstrations for a video call, training session, or online course. A 1/2.8-type Exmor CMOS sensor delivers native 1080p/60, and the 20x optical zoom covers a 60-degree wide field of view down to 3.3 degrees, wide enough to take in a full worktable and tight enough to isolate a single page. A low-power laser pointer helps center the subject, and the camera can be installed as high as 30 feet above the target.

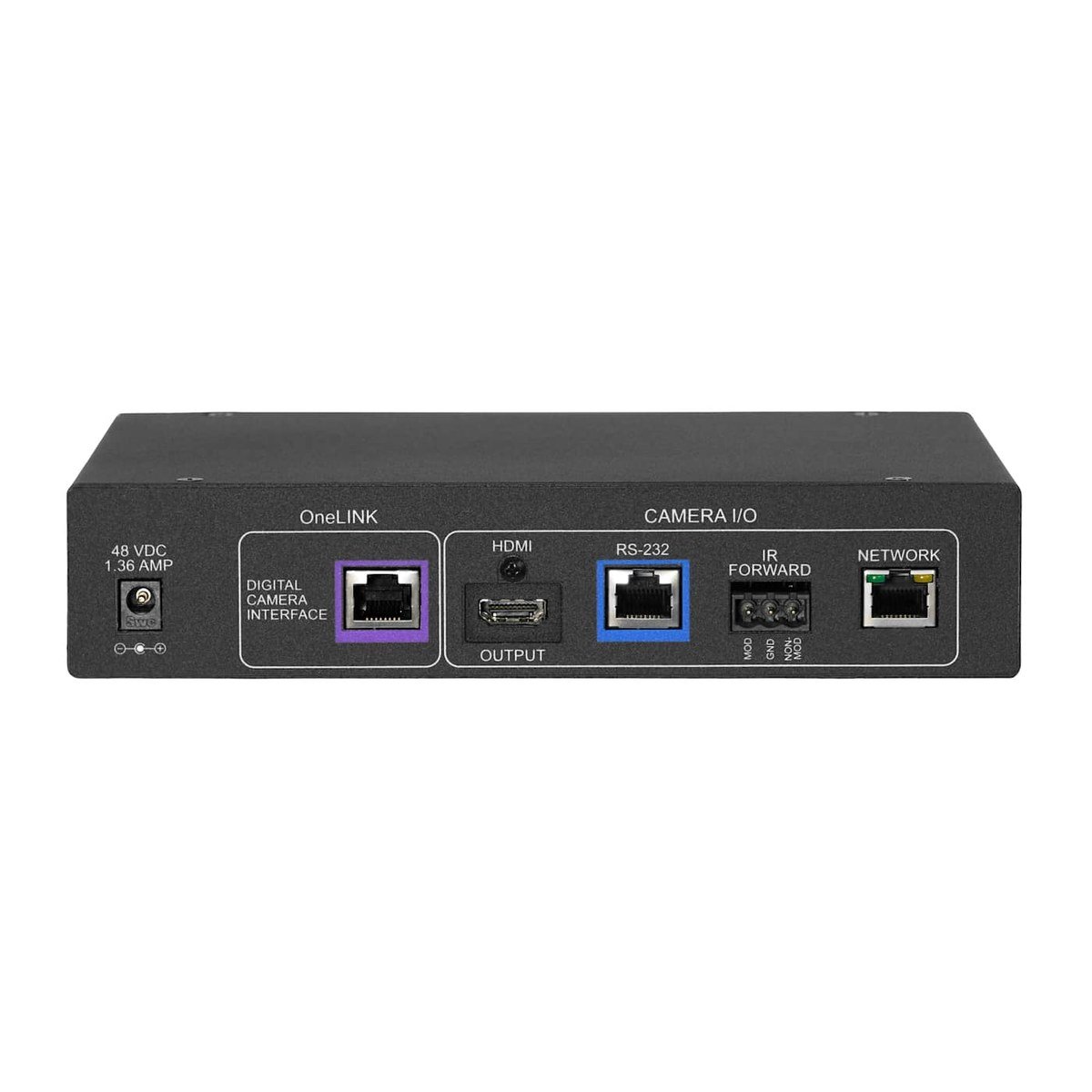

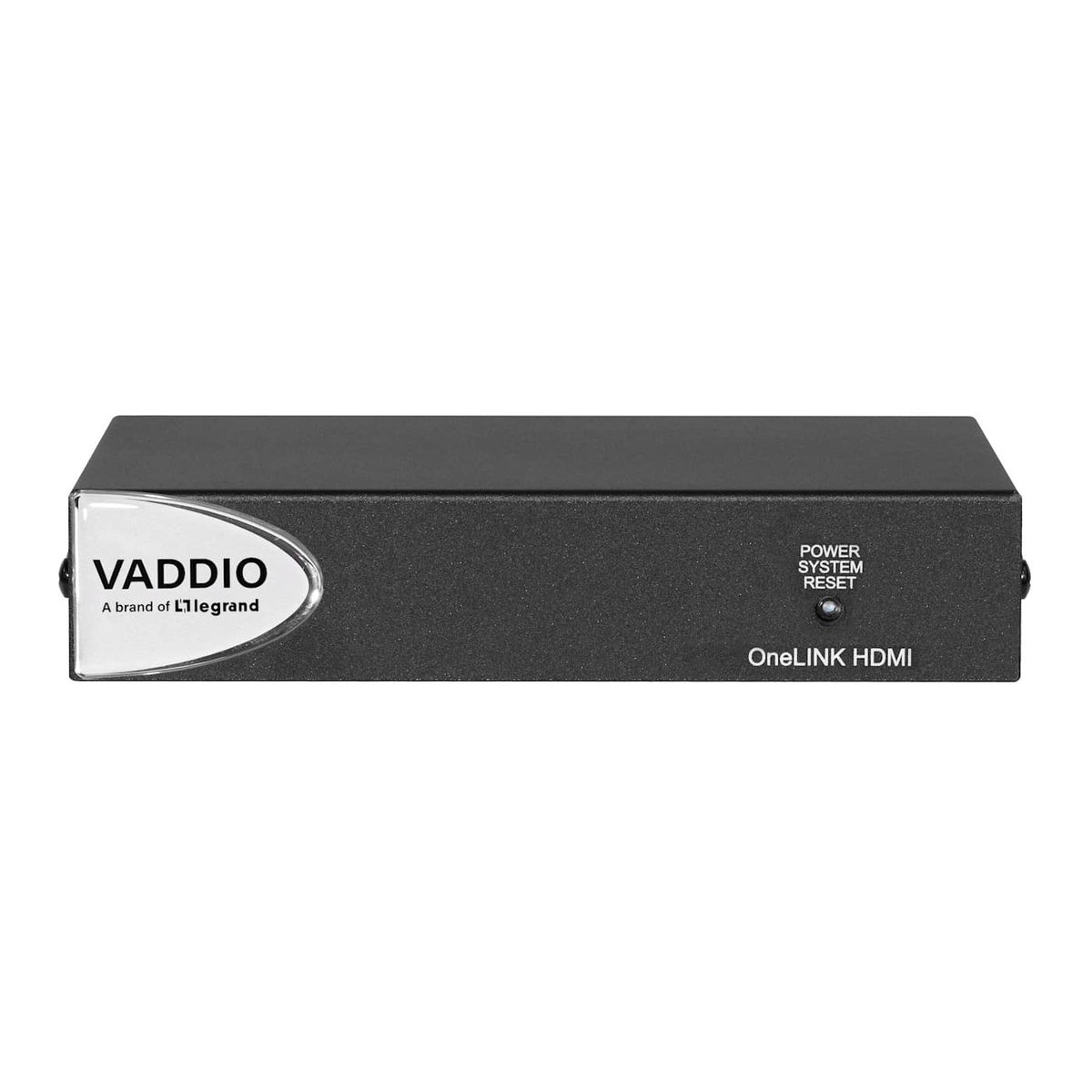

This package includes the OneLINK HDMI interface, which sends uncompressed HDMI video, control, and power to the ceiling over a single Cat-5e cable and passes the camera's IP stream. The camera has one HDBaseT connector and no physical switches, so all setup happens through the web interface, with Telnet, RS-232, and an IR remote for control. The system ships with the DocCAM 20 HDBT camera, a white trim ring, a tile support brace, the IR remote, the OneLINK HDMI interface, a 48V power supply, an EZCamera RS-232 adapter, and an Installation Guide.
