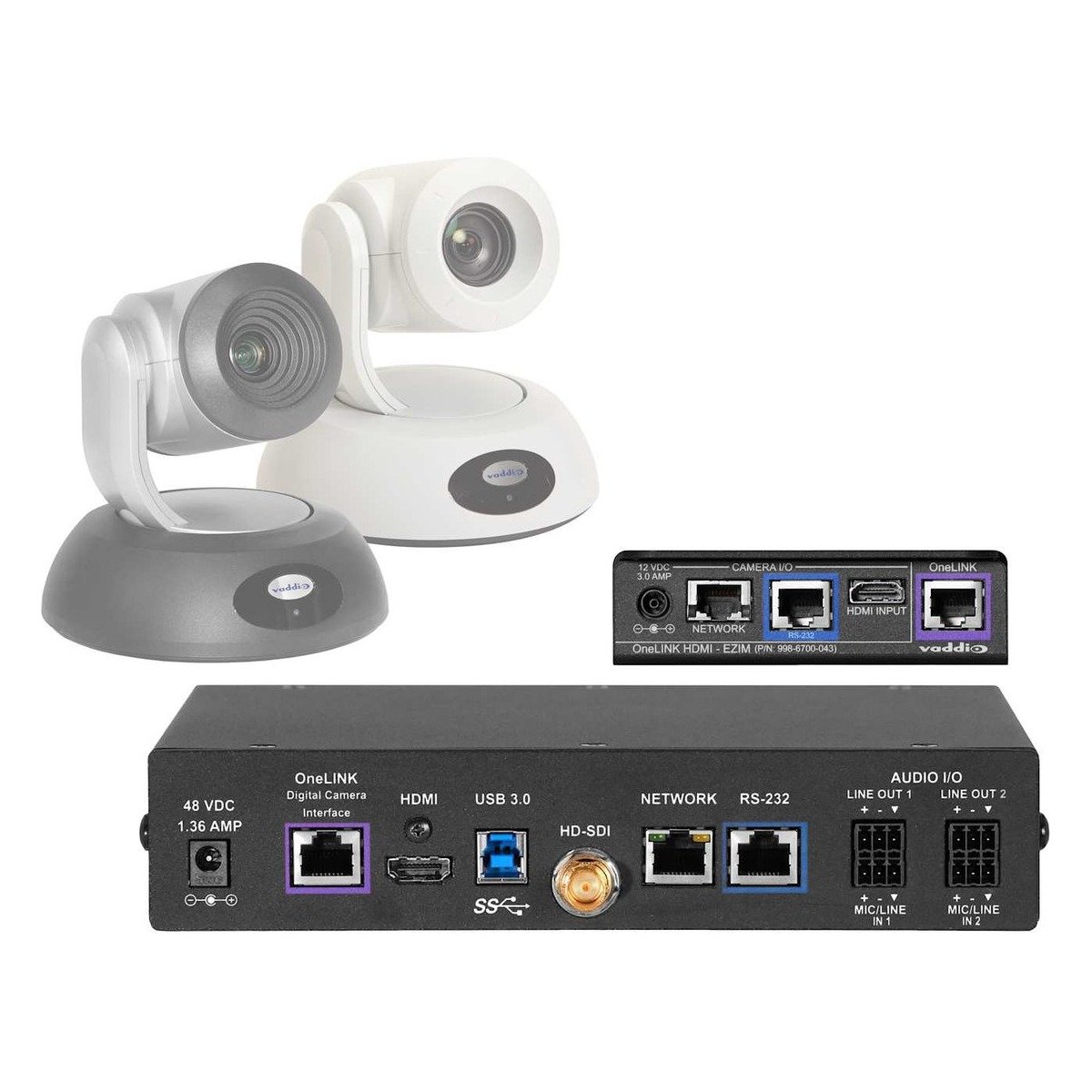

Vaddio Cisco Codec Kit for OneLINK Bridge to RoboSHOT HDMI Cameras

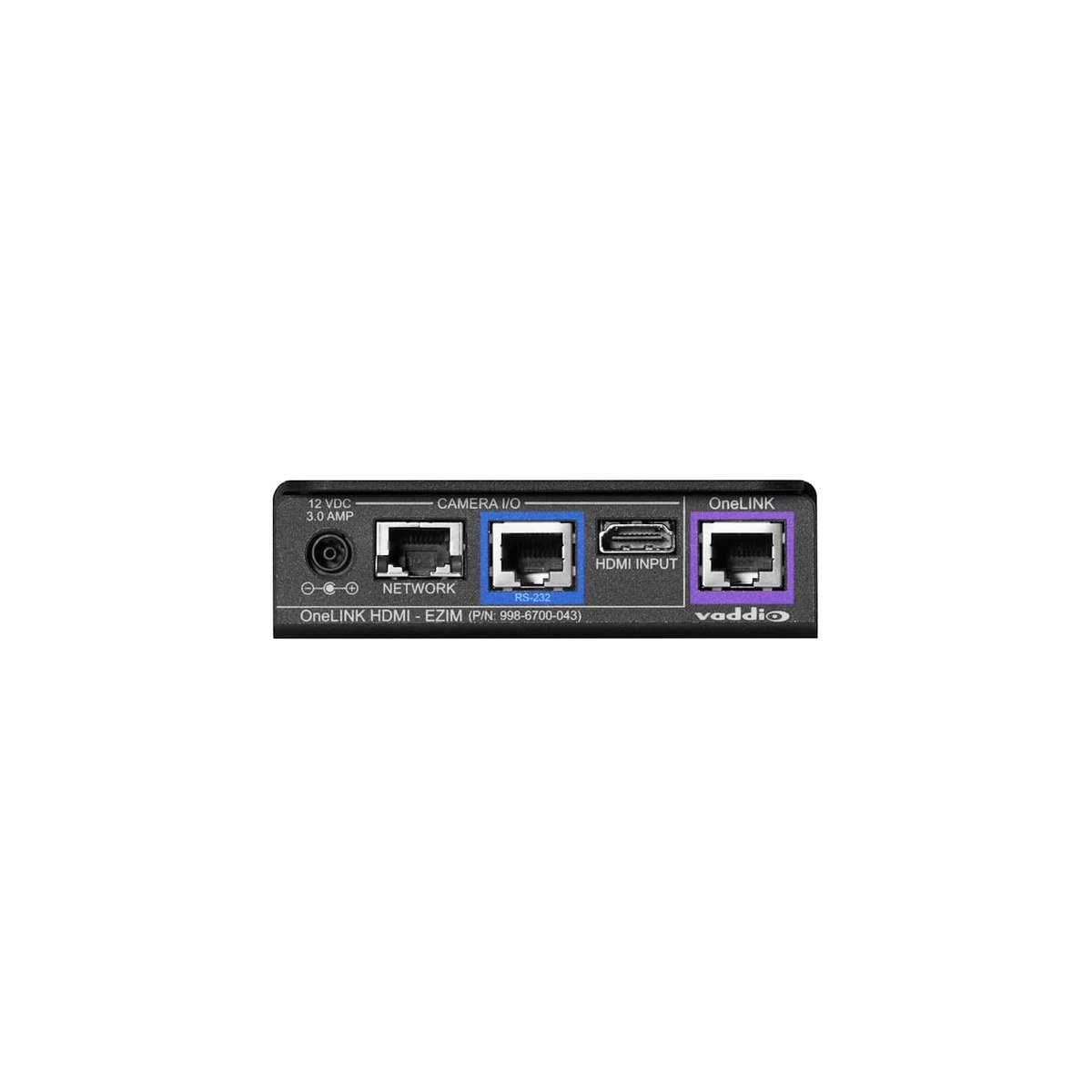

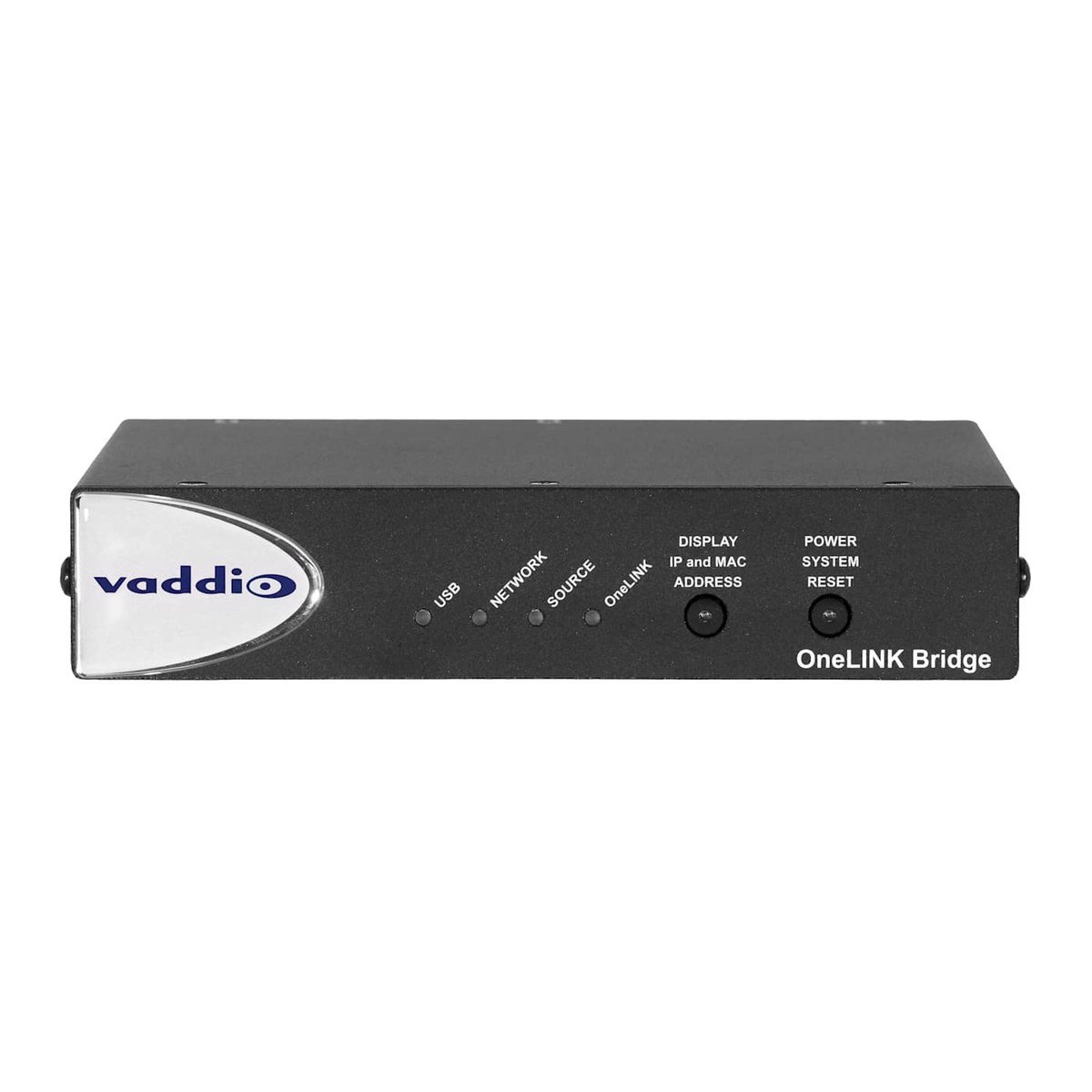

This kit combines a OneLINK Bridge with the parts needed to connect a RoboSHOT HDMI camera to a Cisco codec over a single Cat-5e cable. It targets Cisco Telepresence SX20, SX80, and C-Series codecs and is compatible with the RoboSHOT 12 HDMI and RoboSHOT 30 HDMI cameras. A OneLINK HDMI EZIM converts the camera's HDMI output onto the HDBaseT link, while the OneLINK Bridge carries video, power, and control up to 328 feet and layers on the extras that a codec room wants.

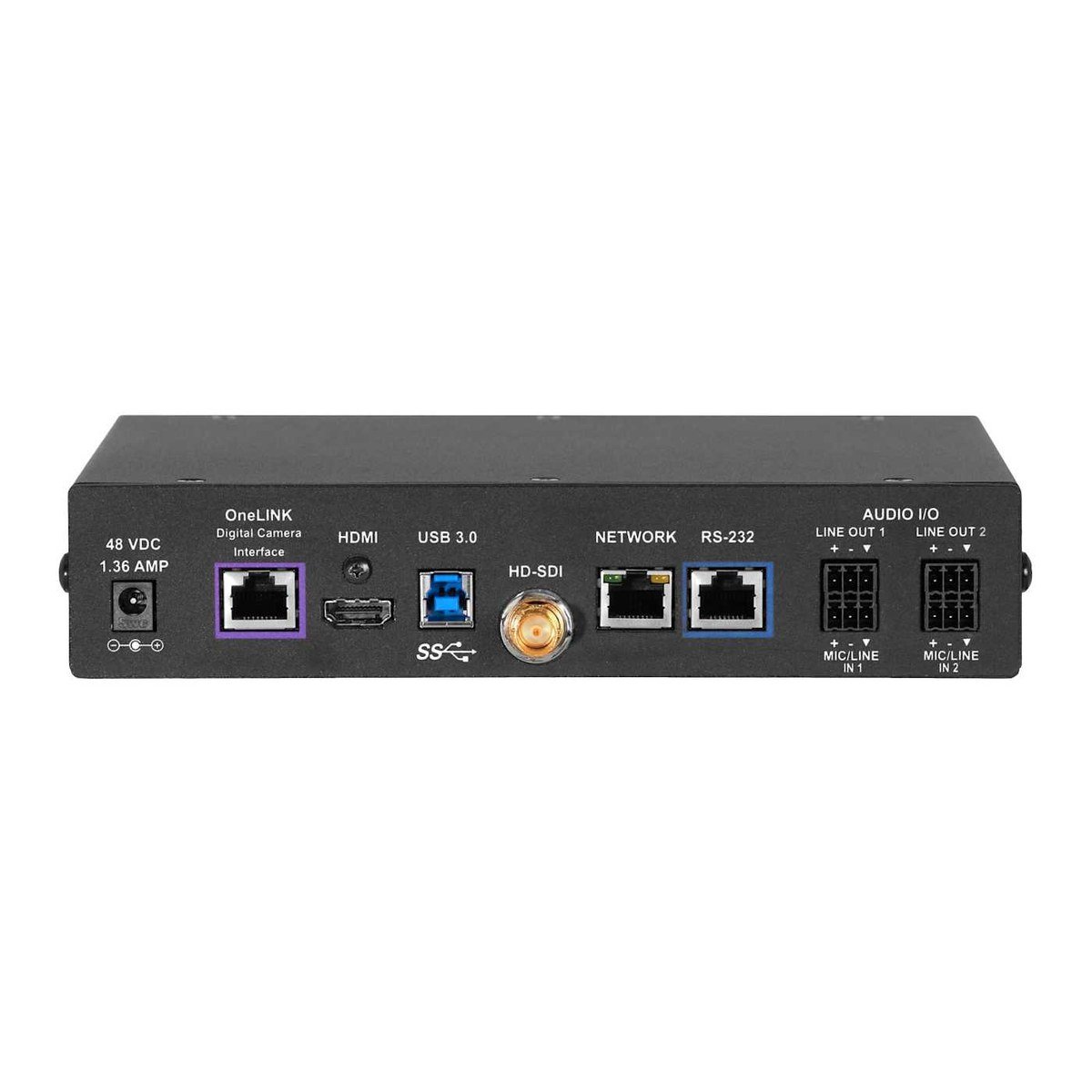

Beyond extension, the Bridge fans the feed out to simultaneous uncompressed USB 3.0, HDMI, and HD-SDI, passes the IP stream when available, and adds two balanced mic/line audio inputs, two line outputs, and a matrix mixer so the room's audio routes through the same box. The kit ships with the OneLINK Bridge interface, the OneLINK HDMI EZIM with mounting screws, a 48V power supply, four Phoenix connectors, a set of Cat-5 cables including a directional cable for the Cisco SX20, short and long HDMI cables, an EIAJ-04 camera power cable, a 6 ft USB 3.0 cable, and an EZCamera RS-232 adapter (998-1002-232) for the Cisco serial ports. A Cisco CAB-PHD4XS2-SPLIT cable must be supplied separately for the SX20.
