Theatrixx xVision HDMI to 12G-SDI Reversible Module - XVVRMHDMI2SDI12G

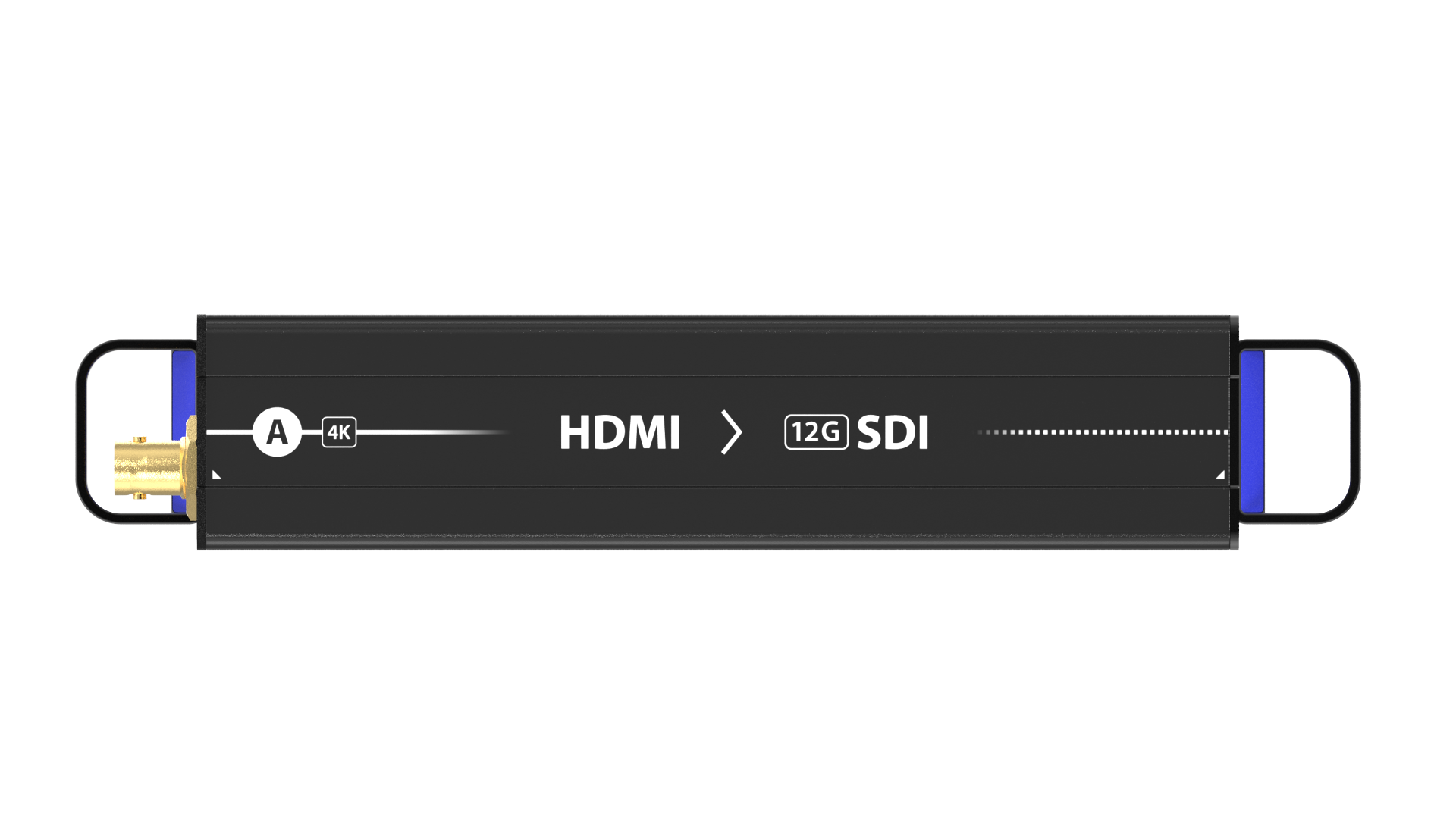

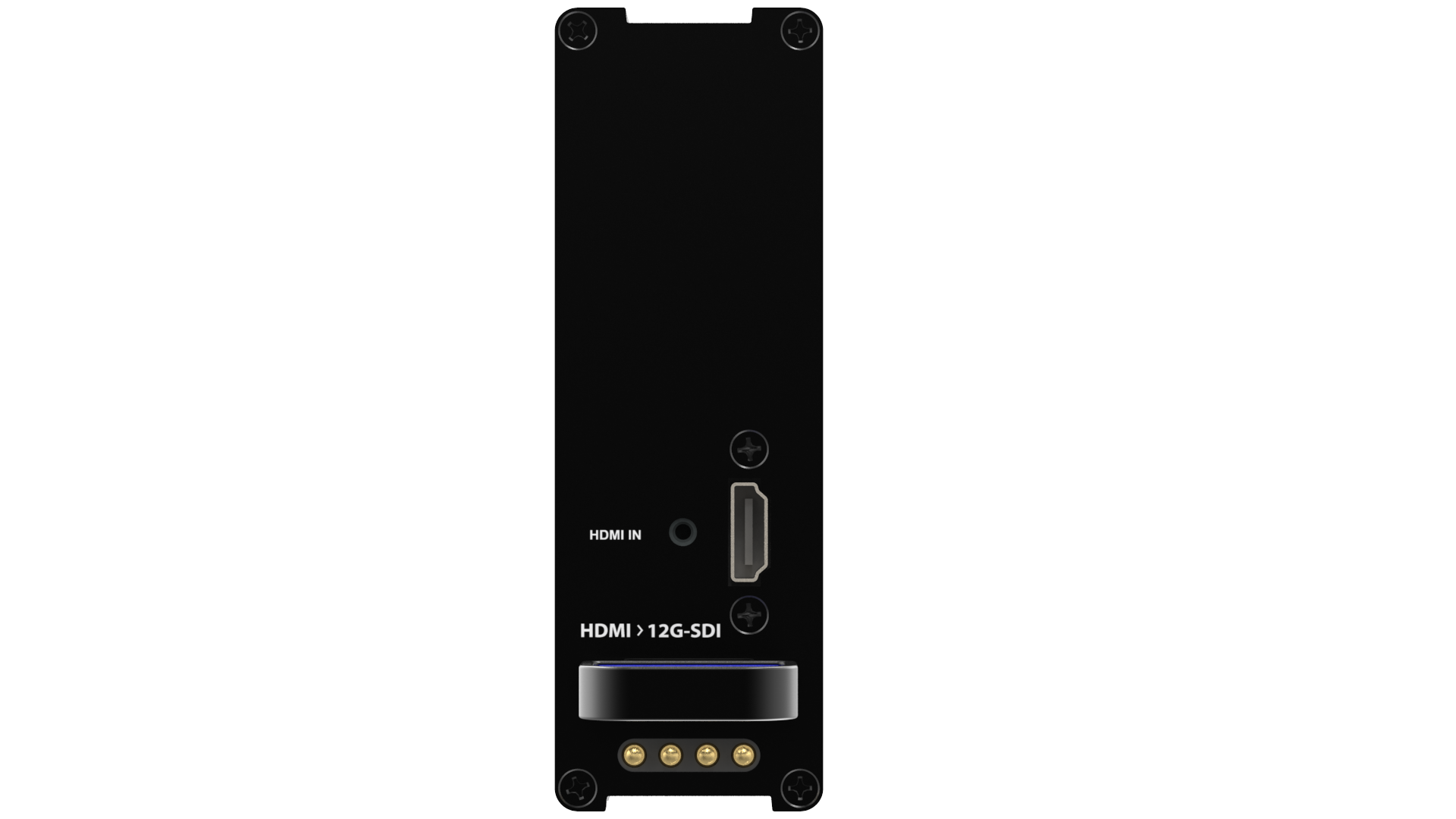

XVVRMHDMI2SDI12G is a Theatrixx xVision reversible module: a rack card that slides into the XVVRF8 8-bay frame and can be fitted facing front or rear, so the connectors land on whichever side of the rack you cable from. It gets a laptop, console or camera HDMI output into the SDI chain. Input is 1 x HDMI 2.0 type A with locking system and output is 2 x 12G/6G/3G/HD/SD SDI BNC. Signal handling follows SMPTE 425 M Level A & B, 424 M Level A, 292 M, 259 M.

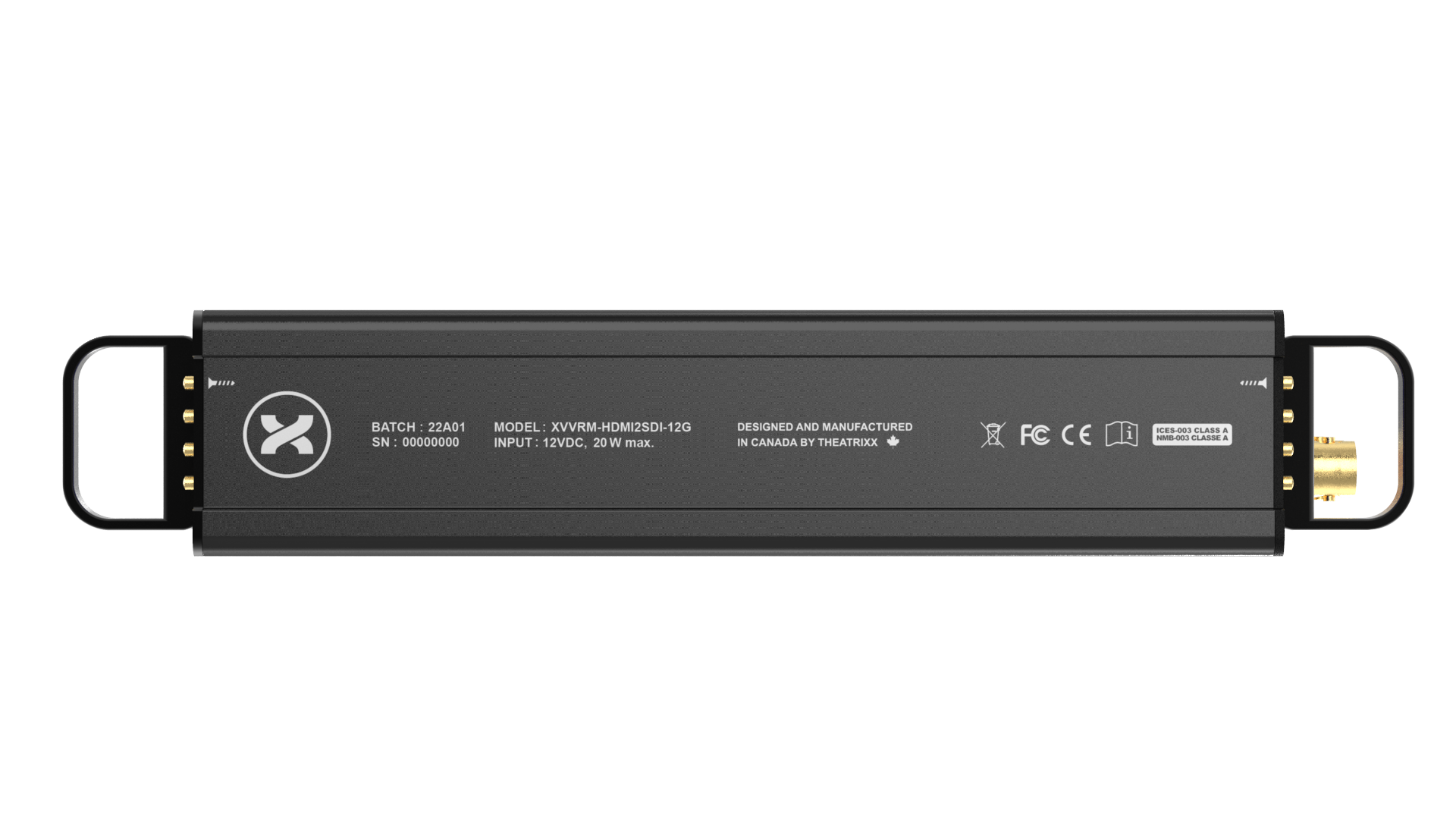

Power is Reversible redundant power fed by XVVRF8, (8-Bay Rackmount Frame). Draw is 20W. The frame supplies redundant power to every slot, so a module has no wall-wart of its own and no separate mains run to lose.
