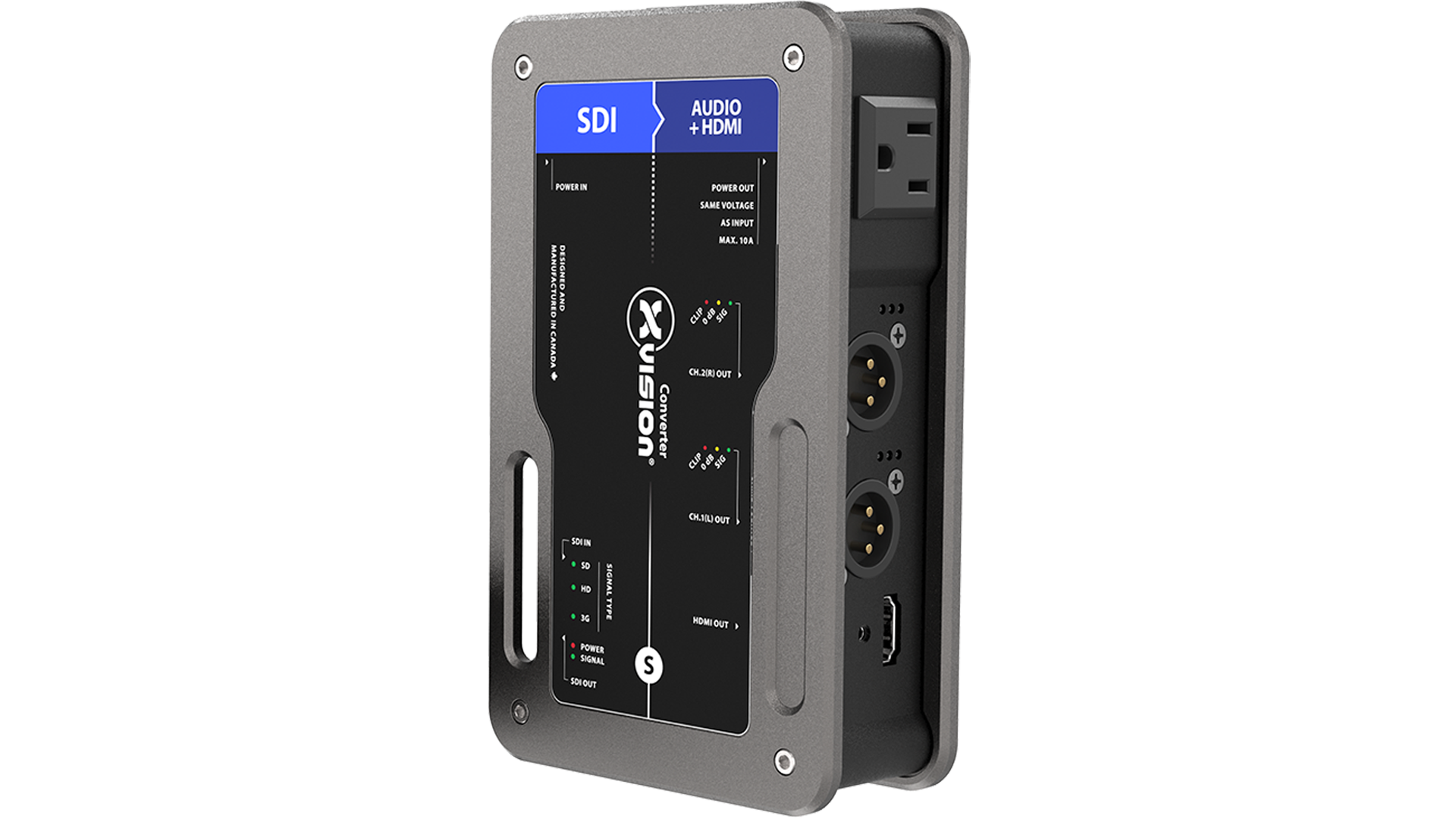

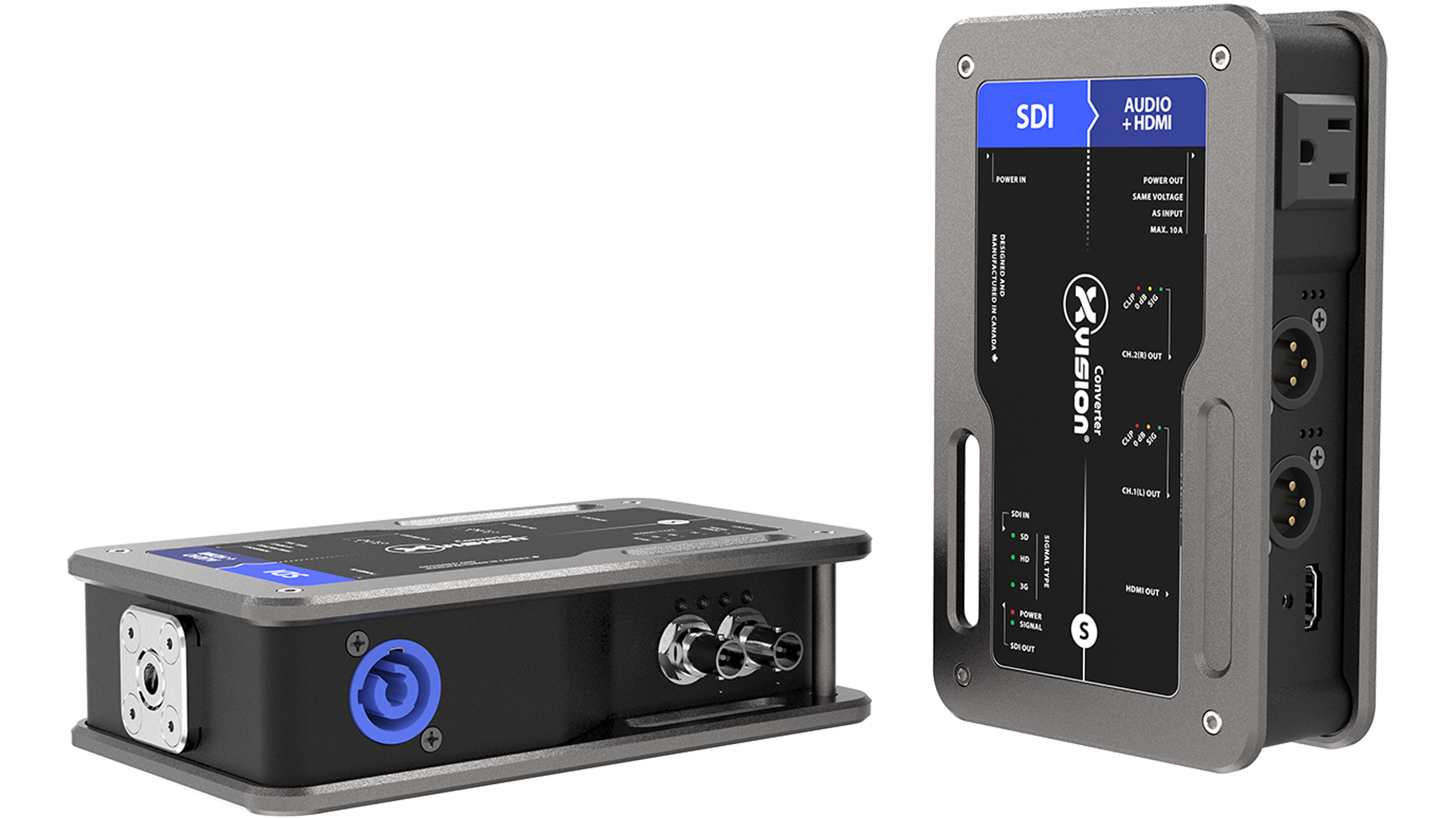

Theatrixx xVision SDI Audio DeEmbedder - XVVSDI2AUDIO

XVVSDI2AUDIO is a standalone Theatrixx xVision converter built for the road rather than the equipment room, with an integrated power supply on a locking powerCON inlet, a magnetic stacking base over a non-skid pad, and color and letter coding on the enclosure so the right box is identifiable under stage light. It folds analog or AES audio into the SDI stream. Input is 1 x 3G/HD/SD SDI BNC and output is 1 x HDMI 1.2 type A with locking system. A reclocked and amplified loop-thru on 1 x 3G/HD/SD SDI BNC lets a local monitor tap the same feed. Signal handling follows SMPTE 425M Level A & B, 424M Level A, 292M, 259M.

Power is Built-in power supply, PowerCON input, Edison Nema 5-15 output (loop-thru). Draw is 15W. Mounting options cover C-clamp, wall plate, LCD bracket and belt adapter, and the courtesy AC outlet on the rear feeds a nearby display or laptop off the same drop.
