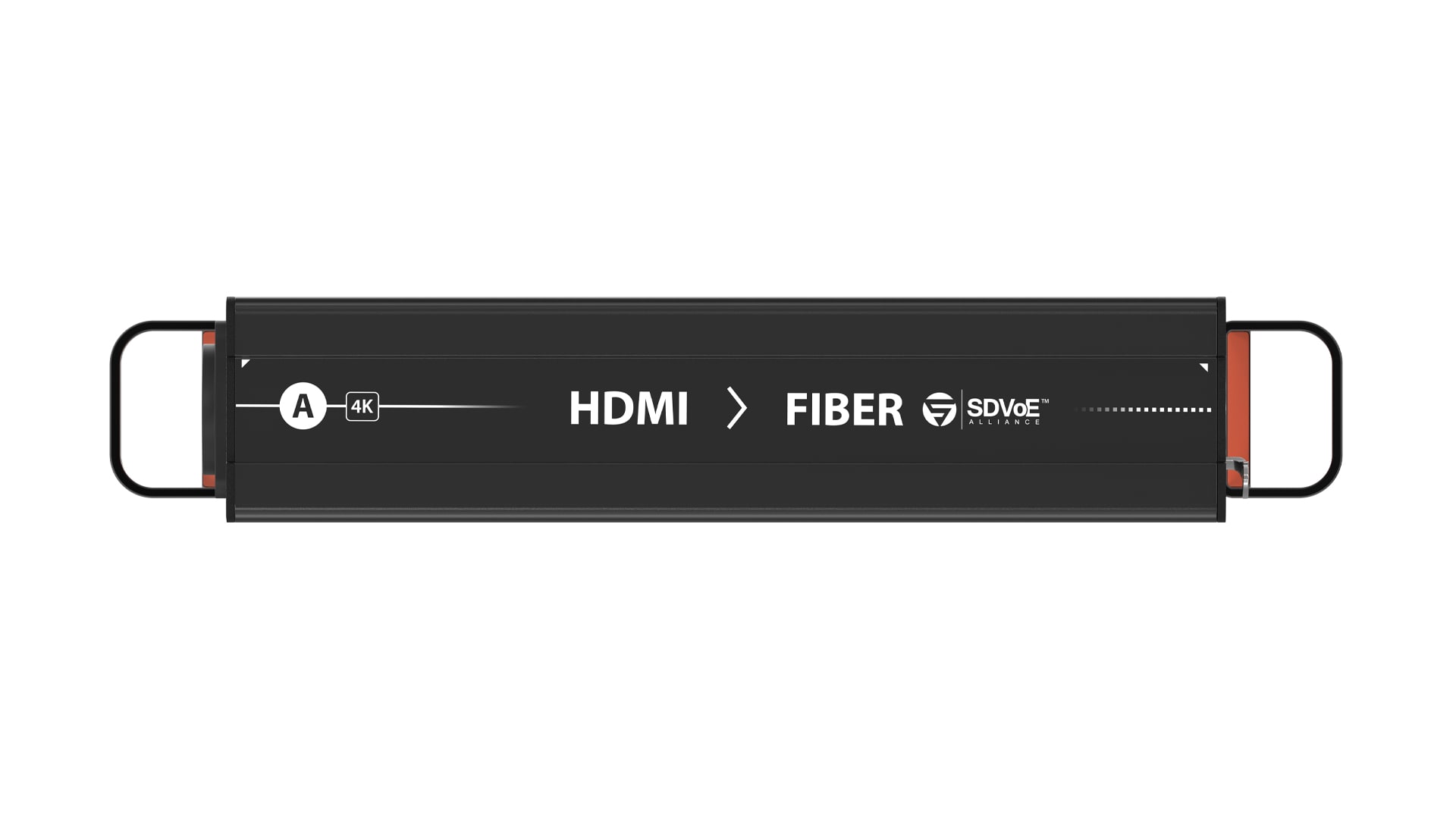

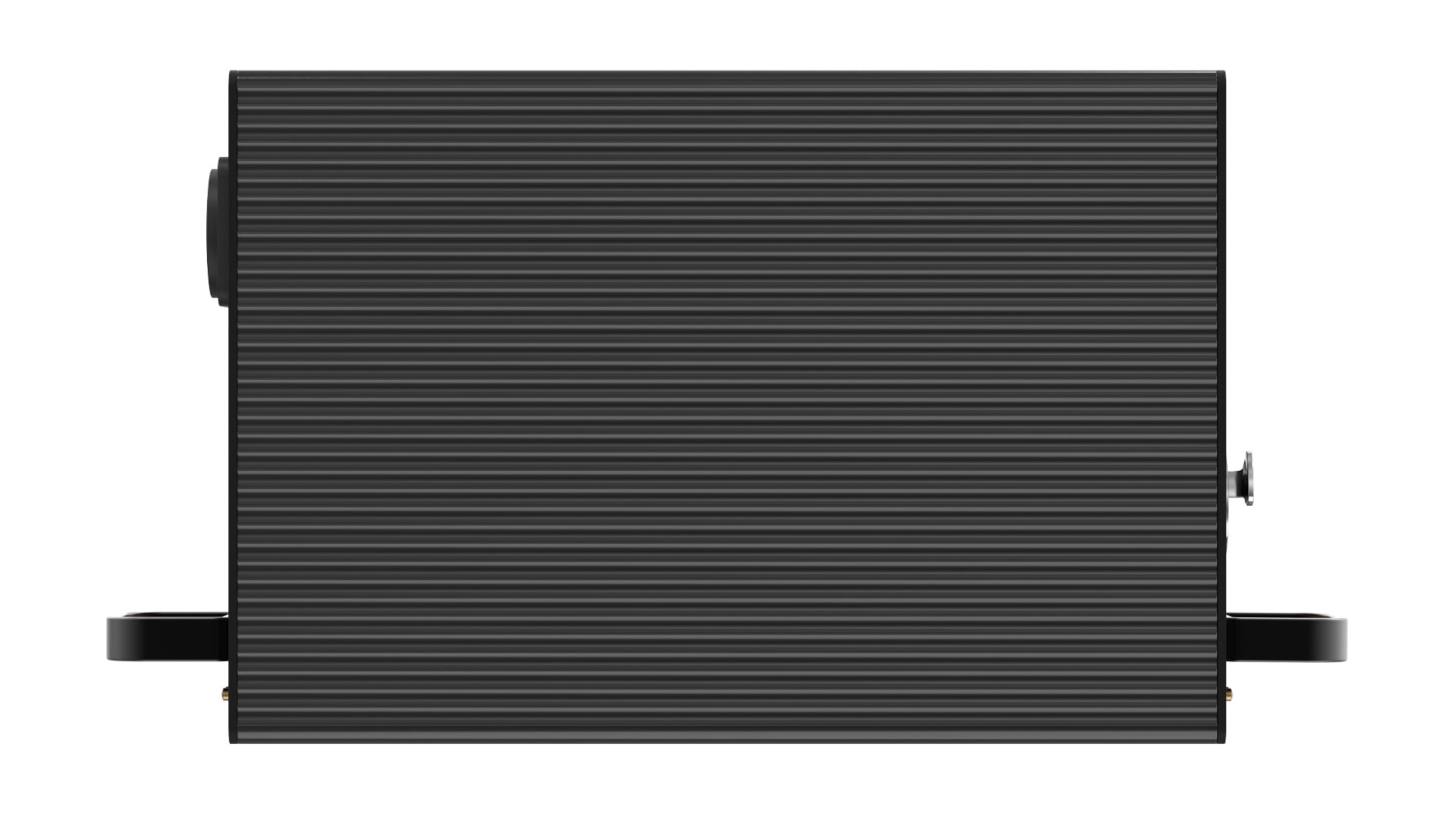

Theatrixx xVision HDMI to Fiber Reversible Module - XVVRMHDMI2FIBER Rack

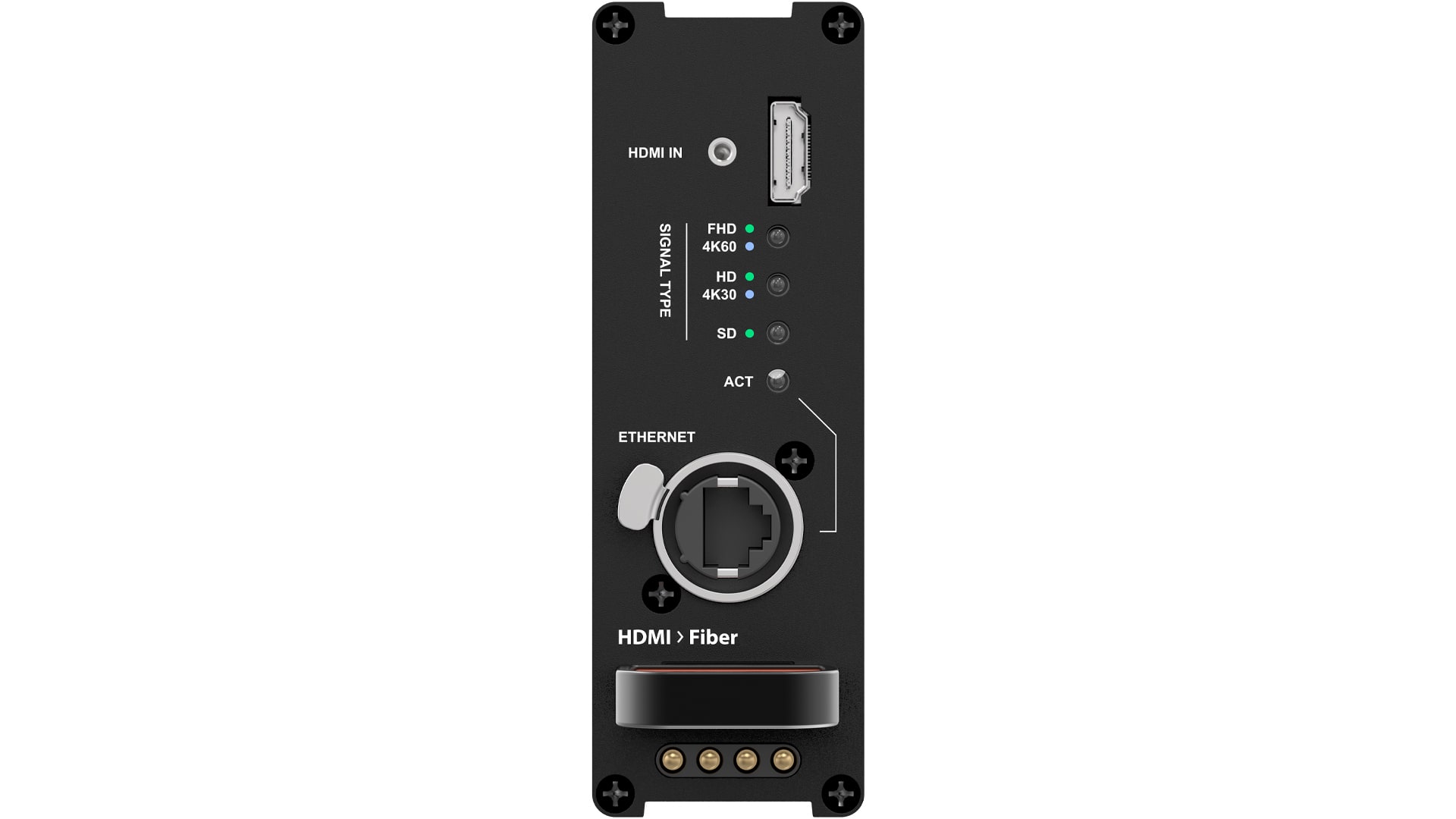

XVVRMHDMI2FIBER is a Theatrixx xVision reversible module: a rack card that slides into the XVVRF8 8-bay frame and can be fitted facing front or rear, so the connectors land on whichever side of the rack you cable from. It gets video onto fiber for a long or electrically isolated run. Input is 1 x HDMI 2.0 type A with locking system and output is optical SDI, singlemode or multimode, on ST, opticalCON DUO or opticalCON QUAD.

Order it by optical build: option 1 selects singlemode (S) or multimode (M) fiber, option 2 selects the connector, ST (1), opticalCON DUO (2) or opticalCON QUAD (3). The variant picker above carries the exact part number and price for each build. Power is Reversible redundant power fed by XVVRF8, (8-Bay Rackmount Frame). Draw is 20W. The frame supplies redundant power to every slot, so a module has no wall-wart of its own and no separate mains run to lose.
