Theatrixx xVision 8-Bay Reversible Frame - XVVRF8

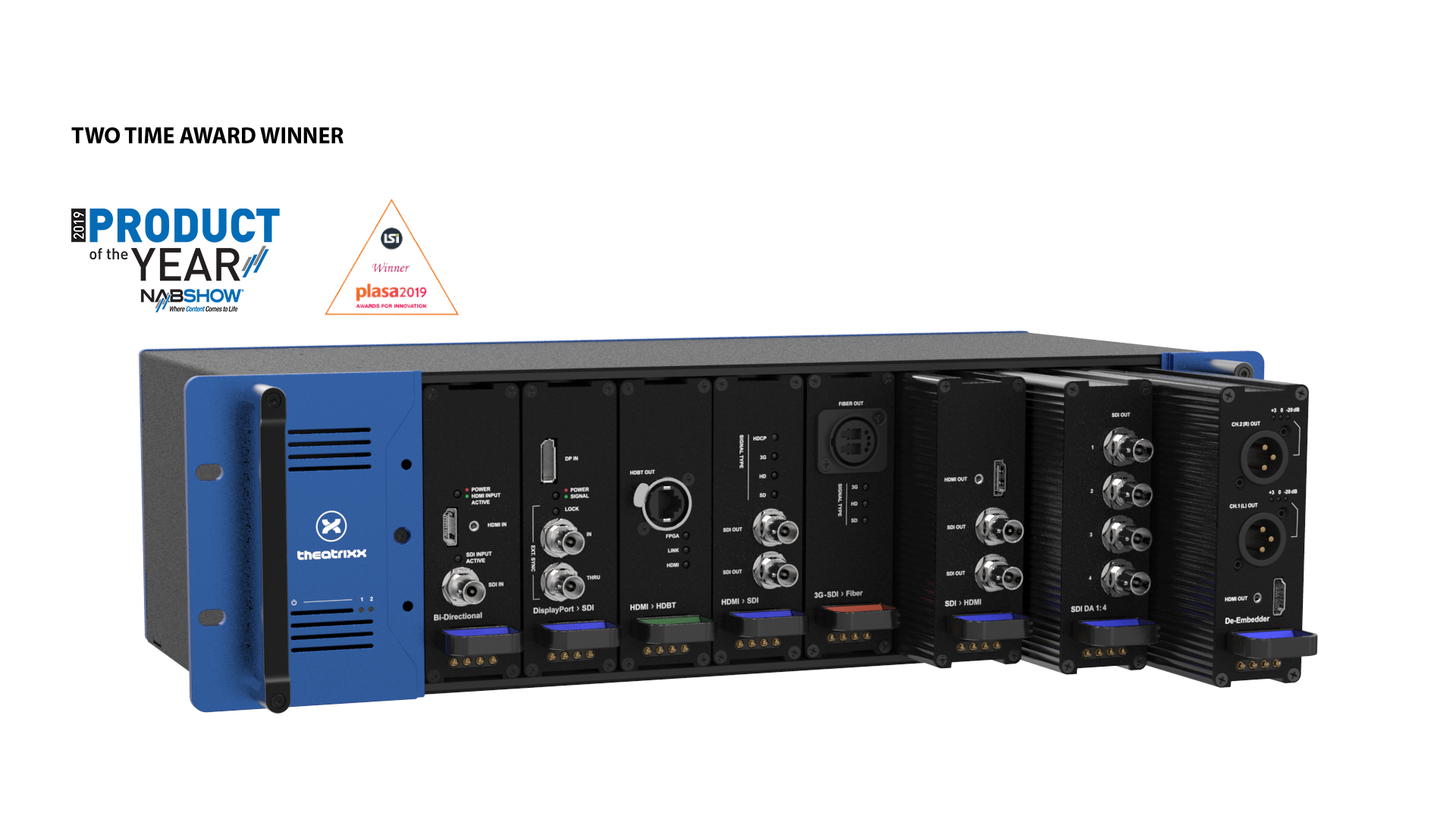

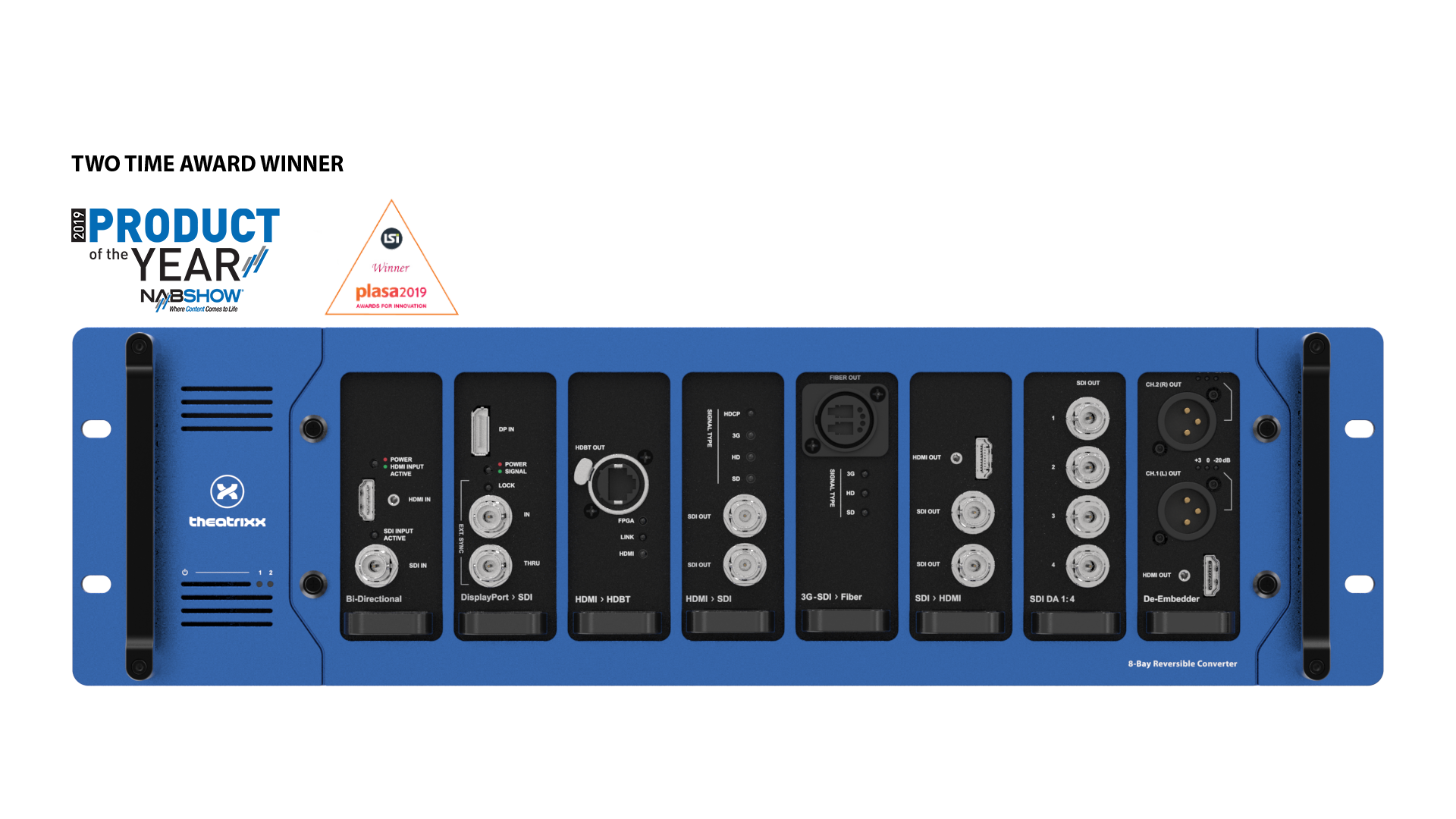

The XVVRF8 is the 3RU, eight-slot host frame the xVision reversible modules plug into. Modules insert either way round, so inputs and outputs can face the front or the rear of the rack depending on how the room is cabled, and every module is fully enclosed rather than an exposed PCB.

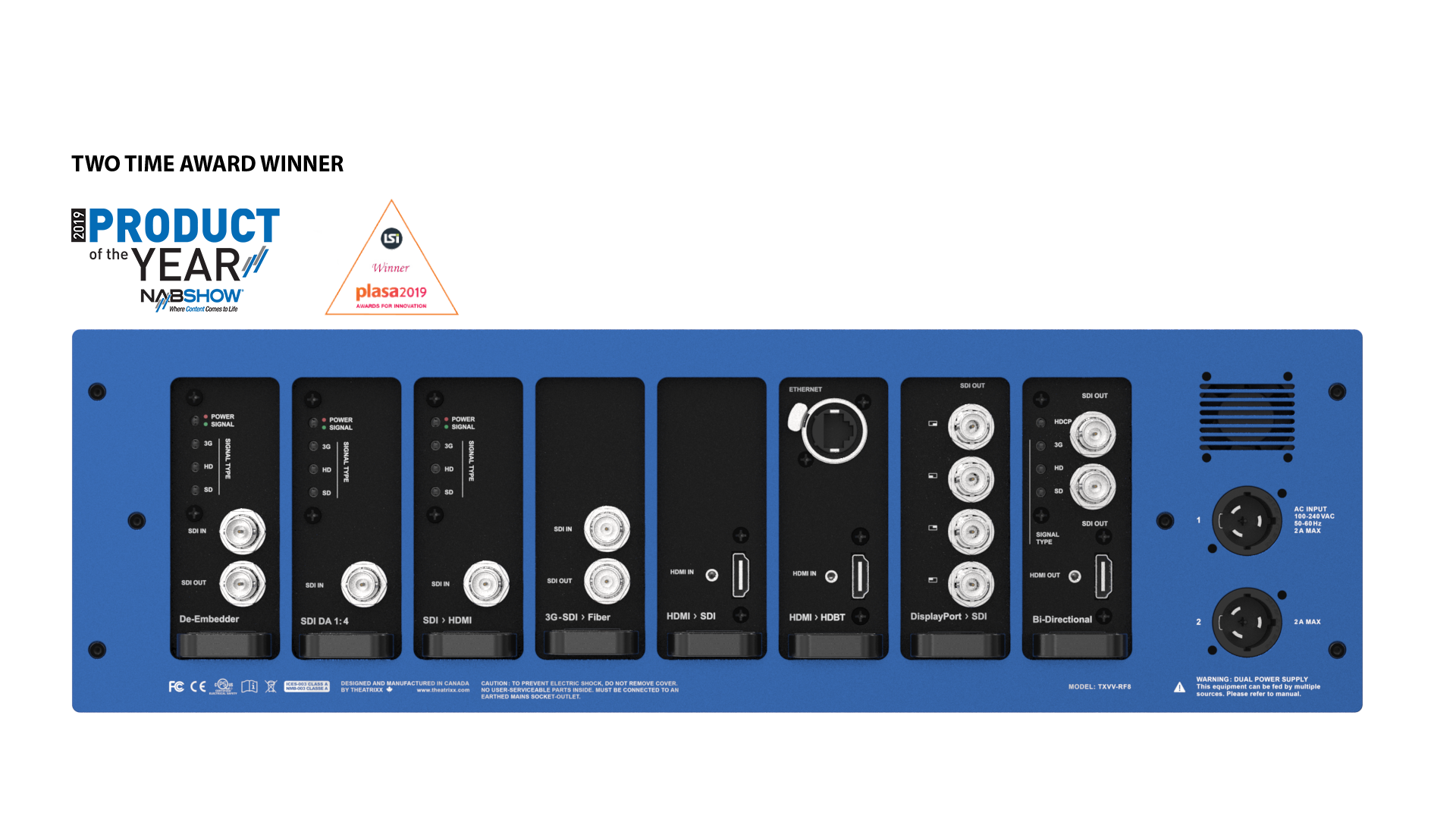

Two oversized power supplies feed the frame through dual locking powerCON TRUE1 inlets and switch over automatically if one fails, with front LEDs showing supply status. DC reaches each module through gold-plated redundant spring pins held by magnets, so there is no internal loom and no external power brick per module. That is the point of the system: one mains feed and one rack space instead of eight wall-warts on a shelf.
