Theatrixx xVision SDI Audio Embedder Reversible Module - XVVRMAUDIO2SDI

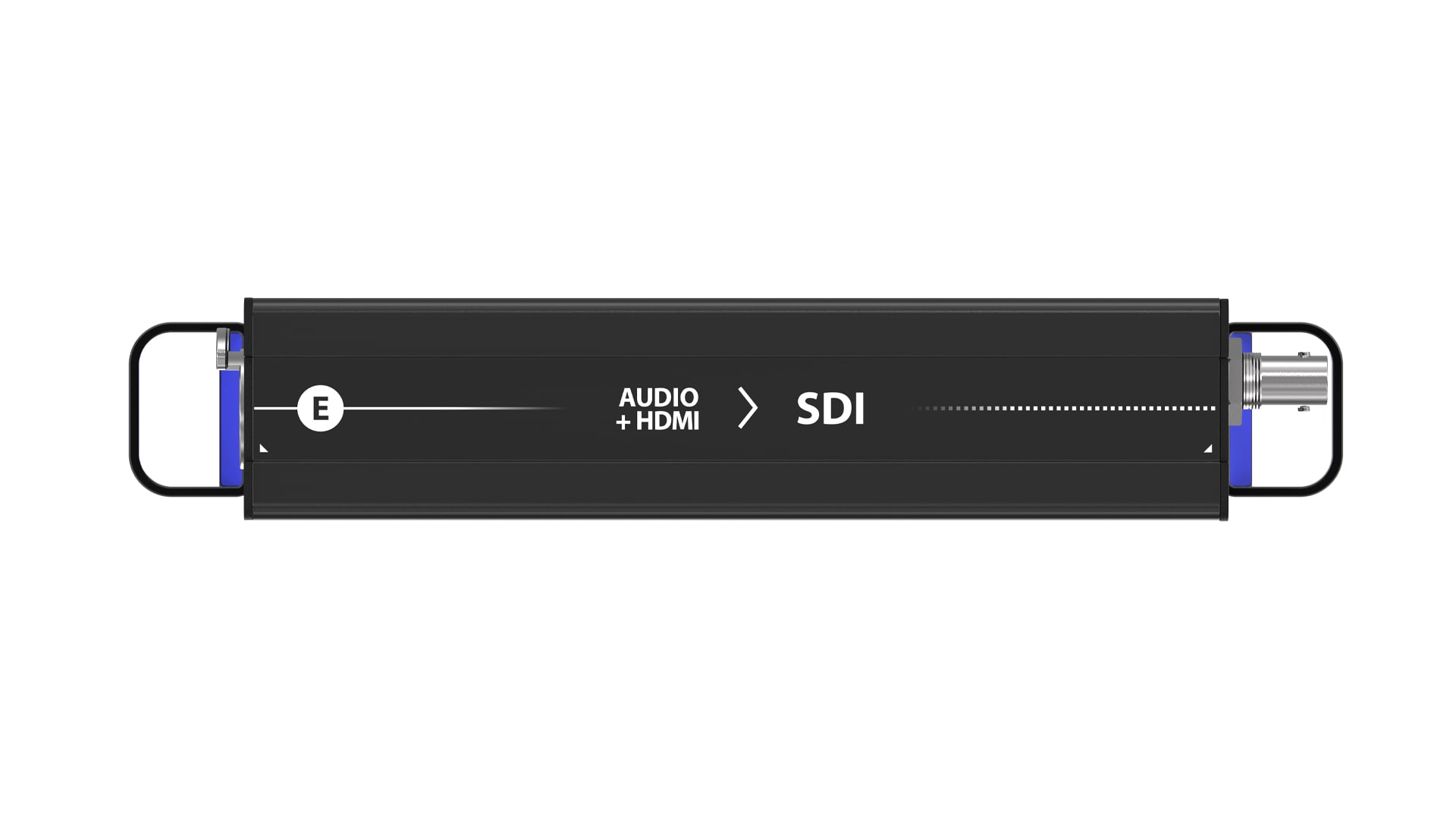

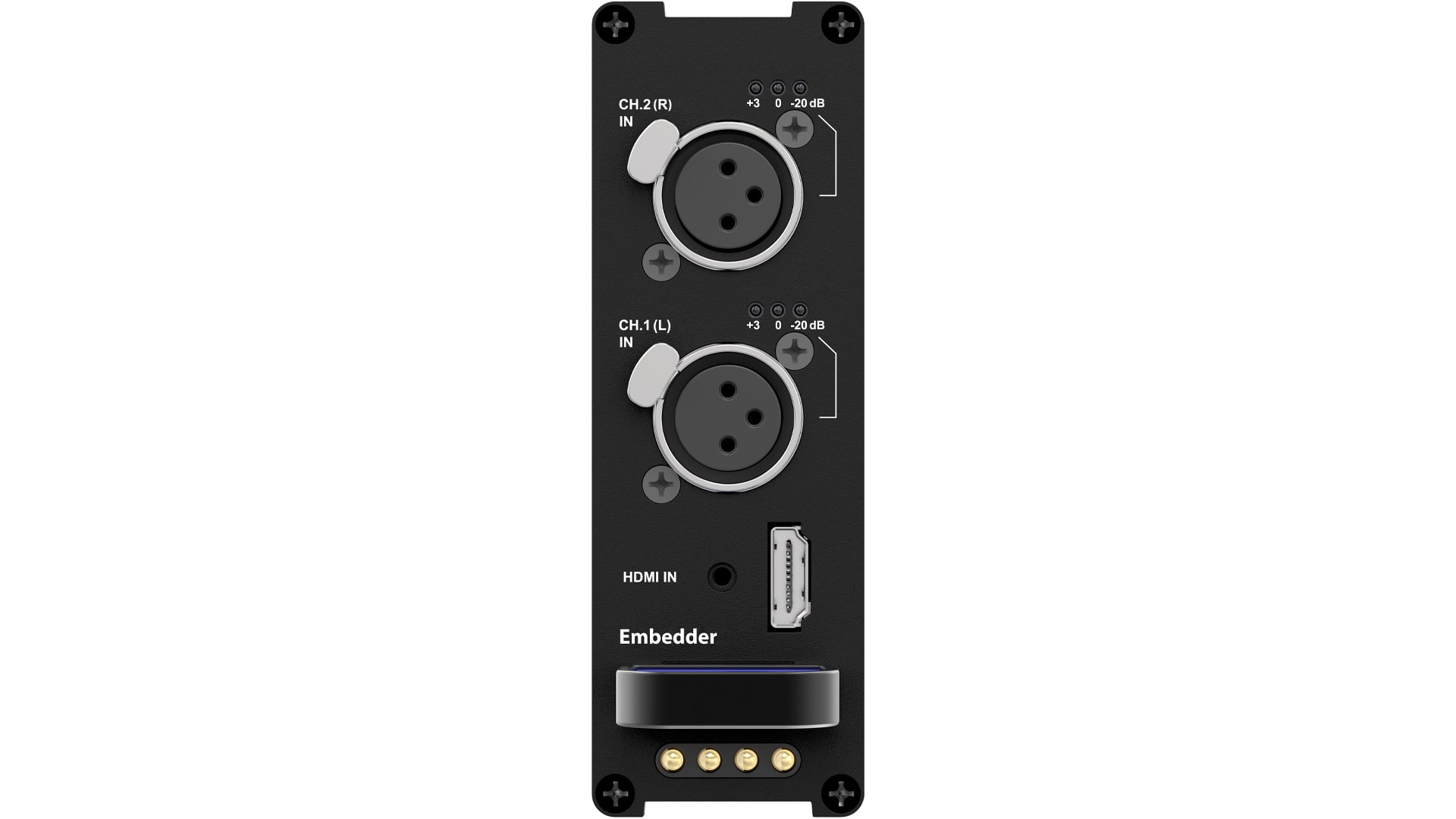

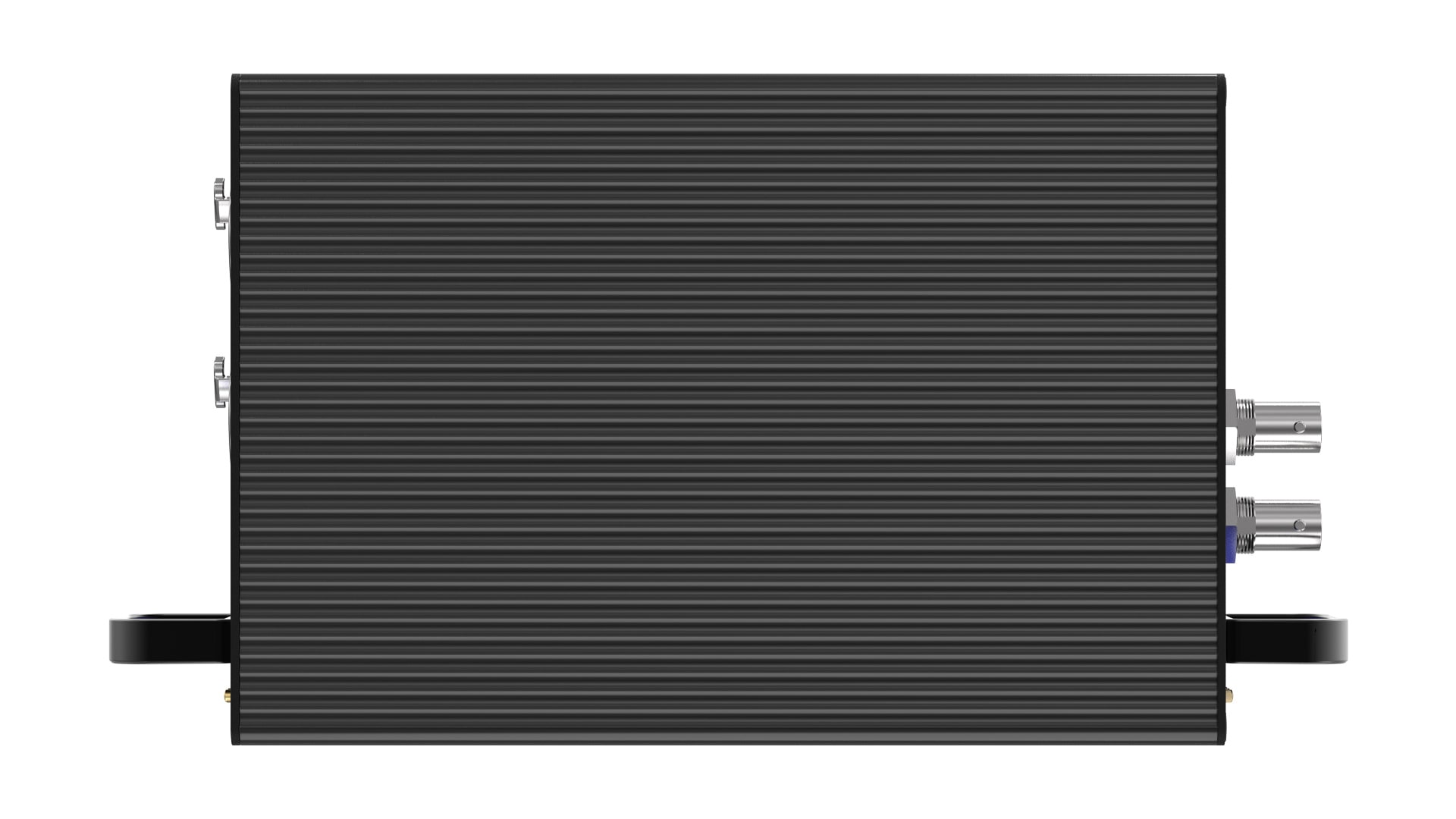

XVVRMAUDIO2SDI is a Theatrixx xVision reversible module: a rack card that slides into the XVVRF8 8-bay frame and can be fitted facing front or rear, so the connectors land on whichever side of the rack you cable from. It folds analog or AES audio into the SDI stream. Input is Auto switching between 1 x 3G/HD/SD SDI, BNC & 1 x HDMI 1.4 type A with locking system and output is 1 x 3G/HD/SD SDI BNC. Signal handling follows SMPTE 425 M Level A & B, 424 M Level A, 292 M, 259 M.

Power is Reversible redundant power fed by XVVRF8, (8-Bay Rackmount Frame). Draw is 20W. The frame supplies redundant power to every slot, so a module has no wall-wart of its own and no separate mains run to lose.
