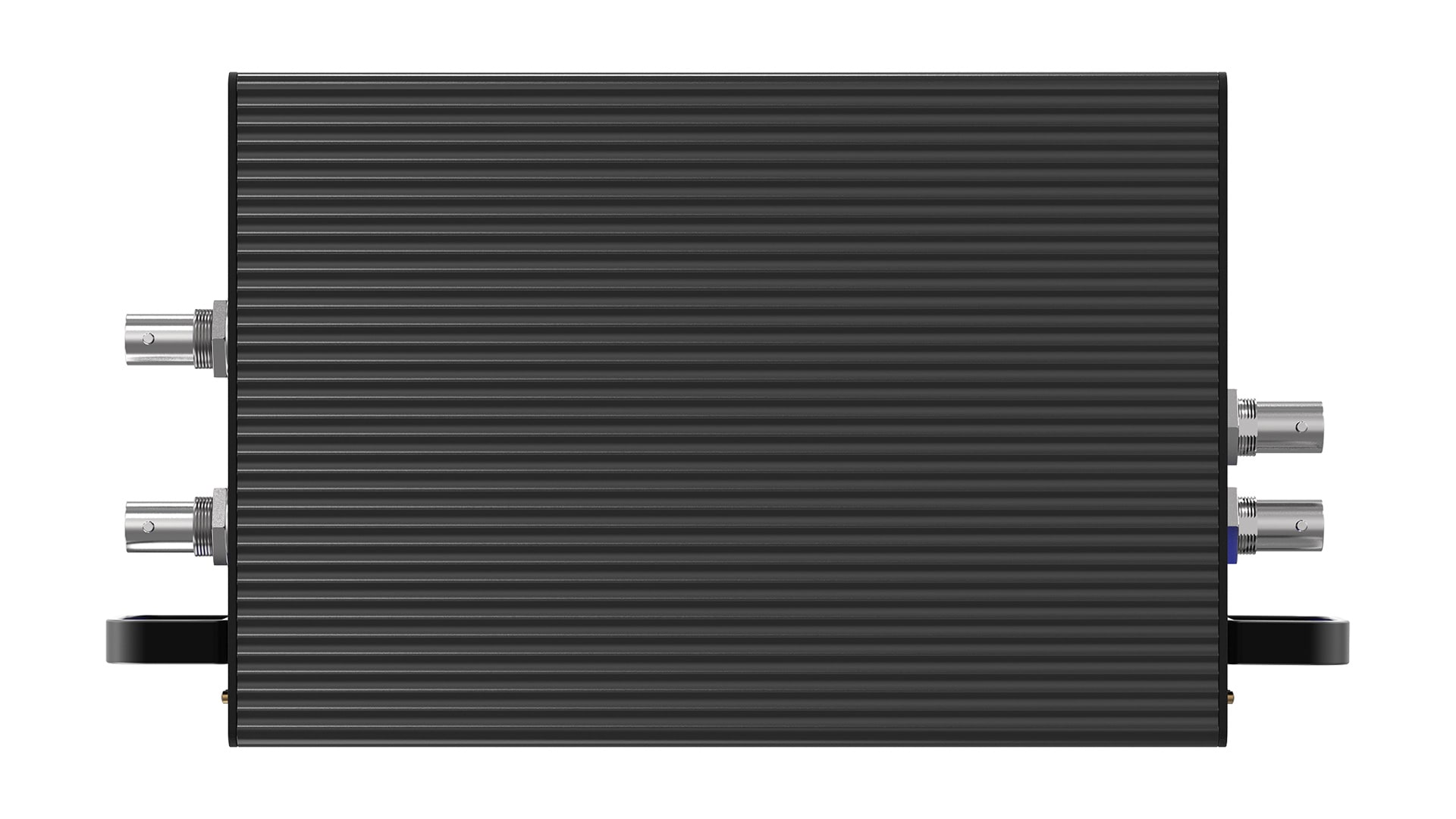

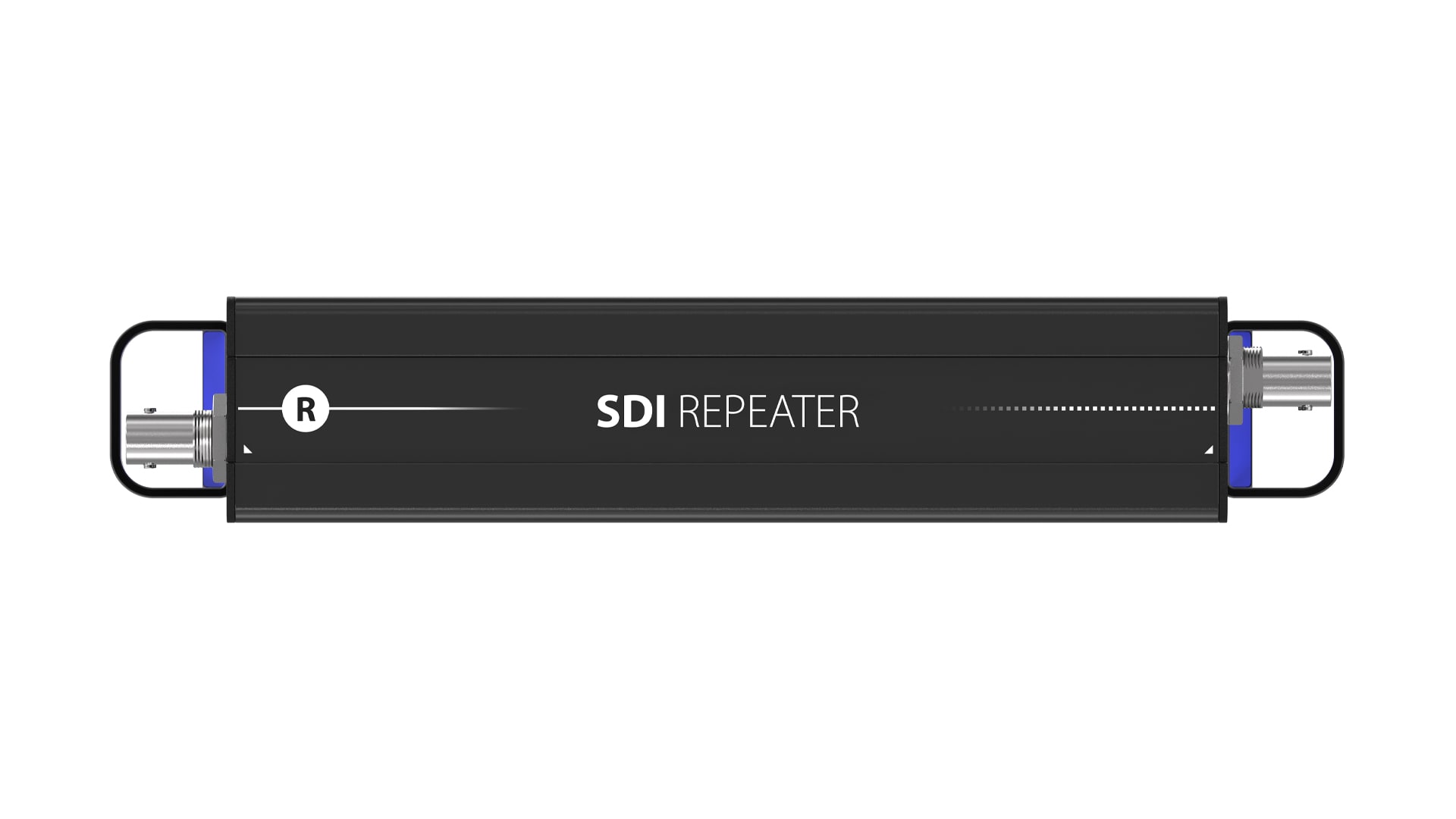

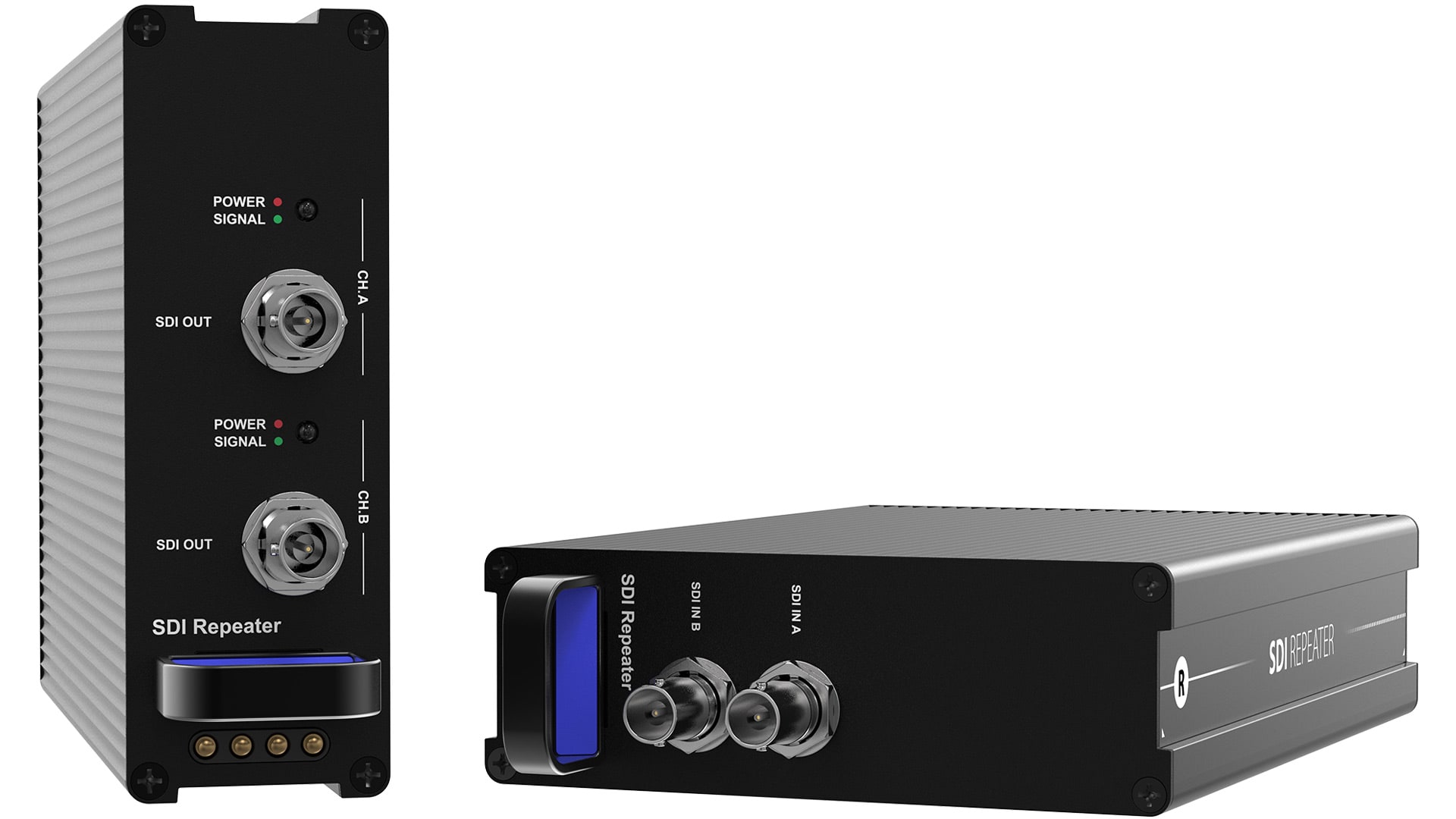

Theatrixx xVision SDI Repeater Reversible Module - XVVRMSDI2SDI

XVVRMSDI2SDI is a Theatrixx xVision reversible module: a rack card that slides into the XVVRF8 8-bay frame and can be fitted facing front or rear, so the connectors land on whichever side of the rack you cable from. It restores signal budget on a long BNC run. Input is 2 x 3G/HD/SD SDI BNC and output is 2 x 3G/HD/SD SDI BNC. Signal handling follows SMPTE 425 M Level A & B, 424 M, 292 M, 259 M.

Power is Reversible redundant power fed by XVVRF8, (8-Bay Rackmount Frame). Draw is 20W. The frame supplies redundant power to every slot, so a module has no wall-wart of its own and no separate mains run to lose.
