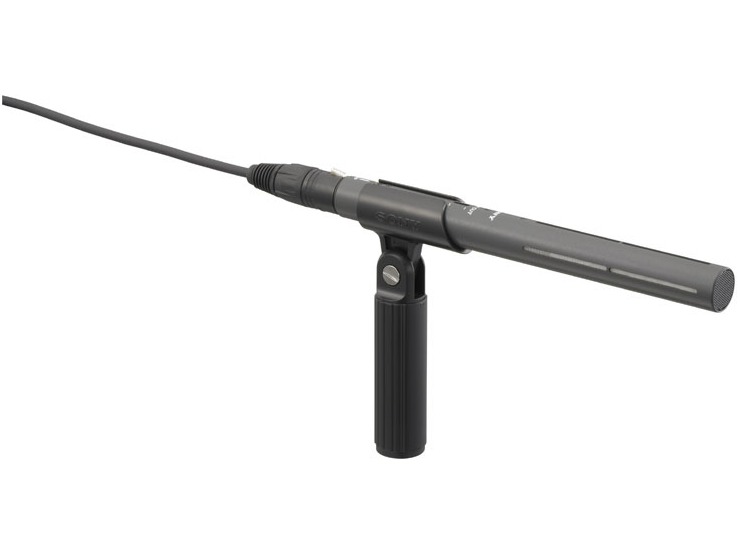

Sony ECM-673 Short Shotgun Condenser Microphone
The ECM-673 is Sony's short shotgun for field and studio production. At about 135 grams it is light enough to leave on a boom through a long day, and the short interference tube keeps it out of a wide frame while still rejecting enough of the room to make dialogue usable. Self-noise of 17 dB SPL or less and a 107 dB dynamic range are the numbers that matter on quiet interior interviews.
The capsule is a mono electret condenser with a supercardioid pattern and a 40 Hz to 20 kHz response, running on 40 to 52 V phantom through an XLR-3-12C male connector. It ships with a windscreen, two stand adaptors and a short XLR-to-XLR cable for mounting directly on a camcorder.
| Capsule Type | Mono Electret Condenser |
|---|---|
| Frequency Response | 40 Hz to 20 kHz |
| Directivity | Uni-directional (super-cardioid) |
| Sensitivity | -36 dB +/-3 dB |
| Output Impedance | 220 ohms+/-20%, Balanced |
| Dynamic Range | 107 dB or more |
| Inherent Noise | 17 dB SPL or less |
| Maximum Input Sound Pressure Level | 124 dB SPL |
| Connector | XLR-3-12C (male) |
| Power Requirements | External, DC 40 V to 52 V |
| Mass | Approx. 4.8 oz Approx. 135 g |
