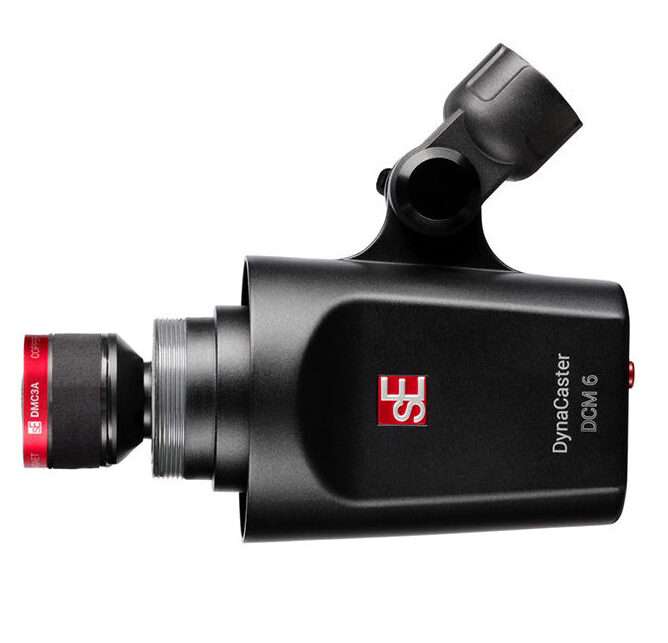

sE Electronics DynaCaster DCM6 Dynamic Broadcast Microphone
The DCM6 brings the DynaCaster idea down to a smaller body. A cardioid dynamic capsule with a copper voice coil and neodymium magnet is paired with a phantom-powered gain stage that raises sensitivity from 2.5 to 79 mV/Pa, so it works on interfaces that cannot deliver clean gain to a bare dynamic.
At 158 x 86 x 62 mm and 518 g it fits a desk arm without dominating the shot, and the 40 Hz to 18 kHz response is voiced for speech. A thread adapter is included; it runs on standard 48 V phantom over a 3-pin male XLR.
- Dimensions158 x 86 x 62 mm (6.22 x 3.39 x 2.44 in), 518 g
- Connector3-pin male XLR
- Polar PatternCardioid
- Frequency Range40 Hz - 18 kHz
- Sensitivity2.5 / 79 mV/Pa (-52 / -22 dBV)
| Capsule | , copper voice coil, neodymium magnet |
|---|---|
| Polar Pattern | |
| Frequency Range | 40 Hz - 18 kHz |
| Sensitivity | 2.5 / 79 mV/Pa (-52 / -22 dBV) |
| Impedance | 600 / 135 Ohms |
| Powering | +48 V phantom, 3.1 mA |
| Dimensions | 158 x 86 x 62 mm (6.22 x 3.39 x 2.44 in), 518 g |
| Connector | 3-pin male |
| Weight | 518 g / 18.27 oz. |
DynamicA microphone type that needs no power and handles loud sources well.
CardioidA pickup pattern that hears what is in front of the microphone and rejects sound from behind it.
XLRThe three-pin balanced audio connector used on professional microphones and mixers.
