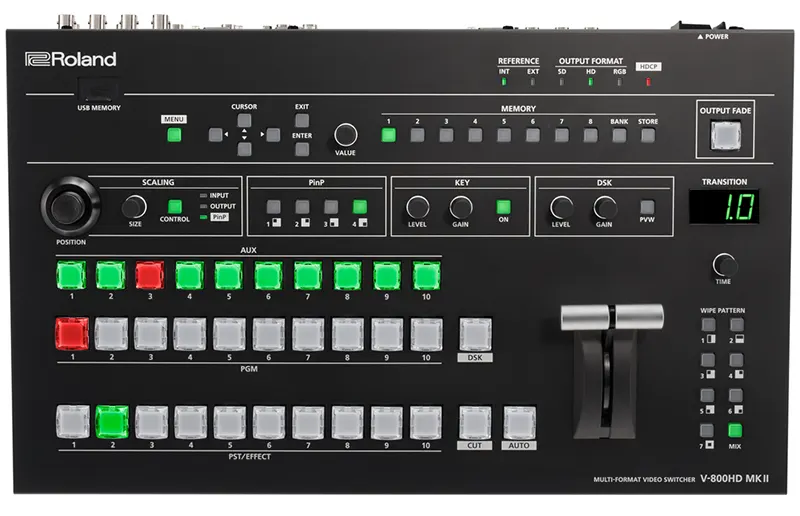

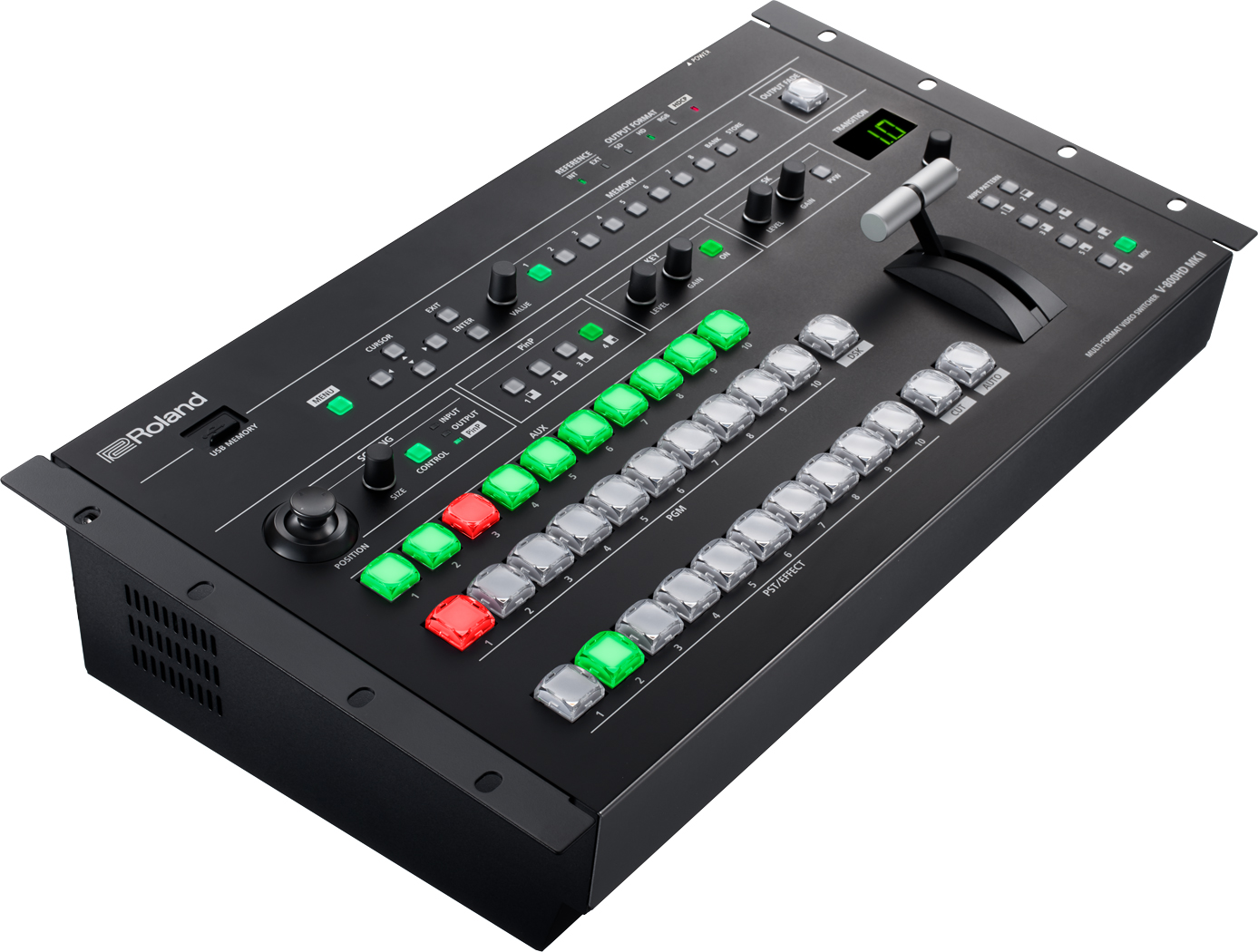

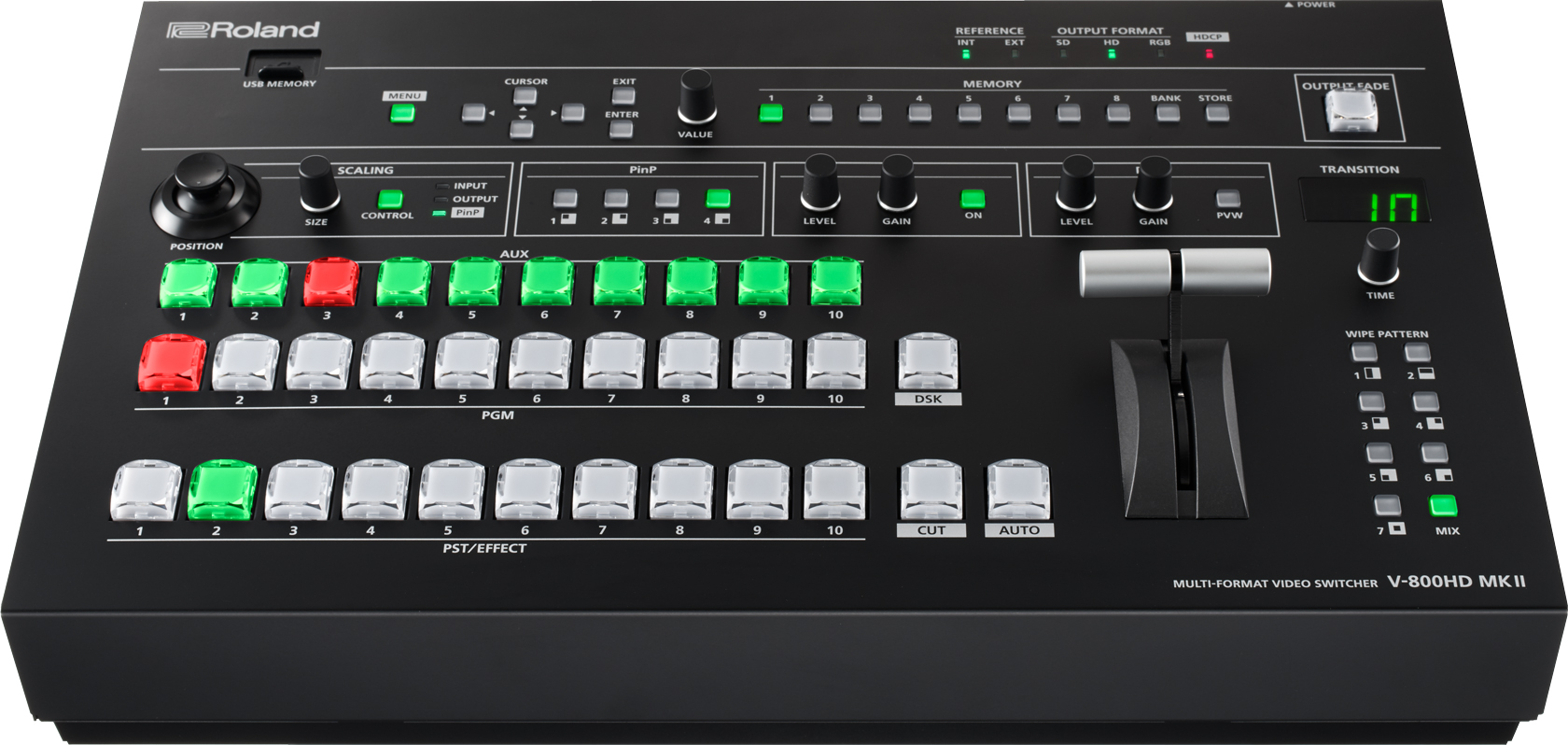

Roland V-800HD MK II Multi-format Video Switcher

Video Processing

Processing
4:4:4 (Y/Pb/Pr, RGB), 10-bit

Supported Formats

Video
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p,1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* SDI and Composite input can input the same frame rate as a setup menu setting.

PC
640 x 480/60 Hz (*1), 800 x 600/60 Hz (*1) (*3), 1024 x 768/60 Hz (*1),1280 x 768/60 Hz (*1), 1280 x 1024/60 Hz (*1), 1366 x 768/60 Hz (*1),1400 x 1050/60 Hz (*1), 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz (*2)
* Conforms to VESA DMT Version 1.0 Revision 10
*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz
*2 Reduced blanking
*3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation.

Still Image
Windows Bitmap File (.bmp)
* Maximum 1900 x 1200 pixels, 24-bit per pixel, uncompressed

Input/Output Level and Impedance

Composite
1.0 Vp-p, 75 ohms

Analog HD/RGB
0.7 Vp-p, 75 ohms (H, V : 5 VTTL)

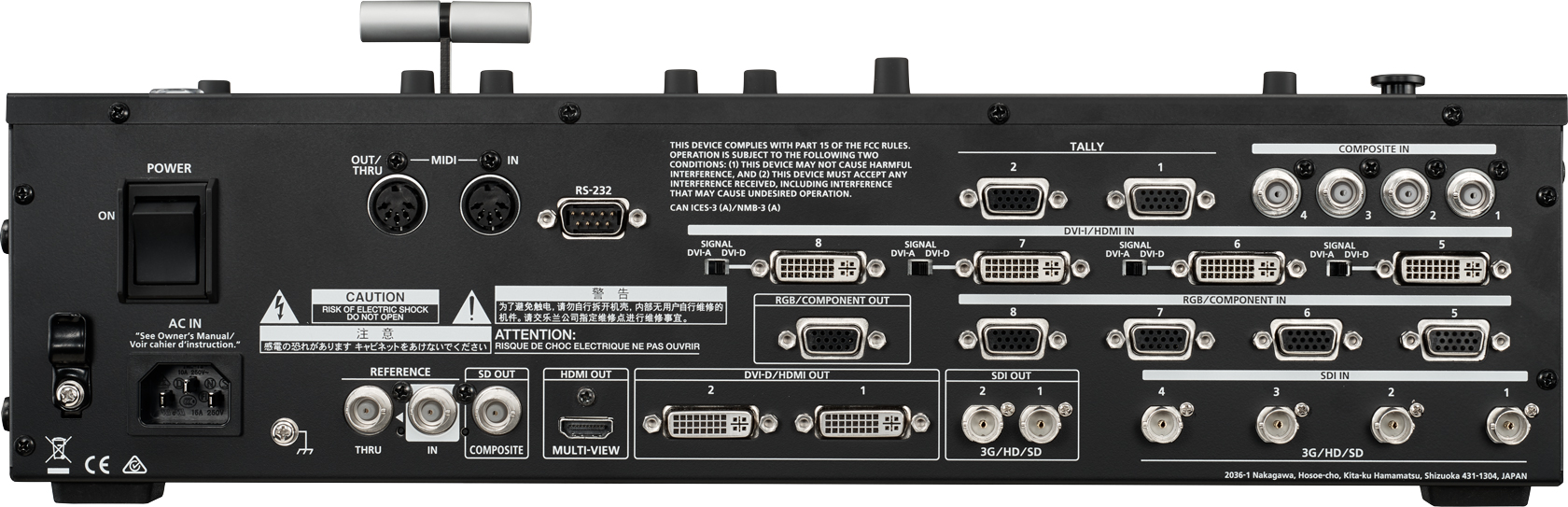

Input Connectors

3G/HD/SD-SDI
BNC type x 4
* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C

DVI-I/HDMI
DVI-I type x 4
* Select DVI-A or DVI-D/HDMI using switch per channel

Analog Video (HD)
Component (Mini D-sub 15-pin type) x 4
* Combined use with Analog RGB

Analog Video (SD)
Composite (BNC type) x 4
* Select Composite or SDI using menu per channel

Analog RGB
Mini D-sub 15-pin type x 4
* Combined use with Analog Video (HD)
* Select DVI-D/HDMI or Analog RGB using menu per channel

Output Connectors

3G/HD/SD-SDI
BNC type x 2 * Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C

DVI-D/HDMI
DVI-I type x 2, HDMI x 1 (for multi-view monitor)

Analog Video (HD)
Component (Mini D-sub 15-pin type) x 1
* Combined use with Analog RGB

Analog Video (SD)
Composite (BNC type) x 1
* Combined use with Analog Video (HD)
* Does not synchronize with Reference Input.

Analog RGB
Mini d-sub 15-pin type x 1
* Combined use with Analog Video (HD)

Other Connectors

Tally
Mini D-sub 15-pin type x 2
* Input (max) : 12 V, 200 mA Open collector Type

Reference
BNC type (IN, THRU) * Black Burst (Sync to frames), Bi-Level, Tri-Level

MIDI
5 pin DIN type (IN, OUT/THRU)

RS-232
D-sub 9 pin type x 1

USB port (host)
A type x 1 (for USB memory)

Effects

Transition
Mix, Cut, Wipe (9 patterns)

Composition
PinP, DSK, Chrominance Key, Luminance Key, External Key

Others
Output Fade, Output Freeze

Others

Power Supply
AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)

Power Consumption
75 W/0.7 A (115 V, 117 V)
75 W/0.4 A (220 V, 230 V, 240 V)

Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

Accessories
Owner's Manual, Power cord, Rack-mount angle x 2

Size and Weight

Dimensions
482 (W) x 275 (D) x 116 (H) mm
19 (W) x 10-7/8 (D) x 4-5/8 (H) inches
* When rack mount angles are fitted.

Weight
5.5 kg
12 lbs 3 oz
