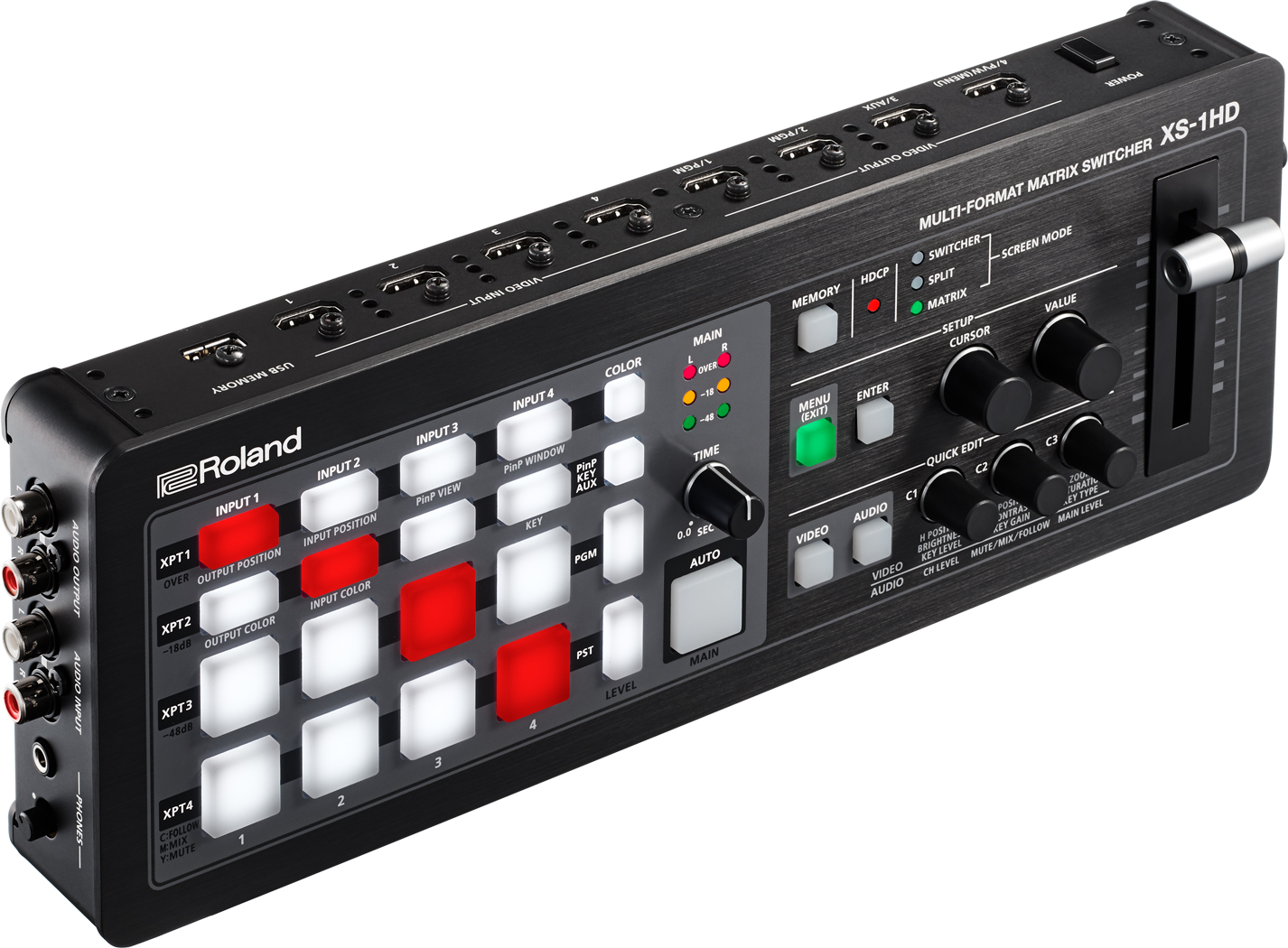

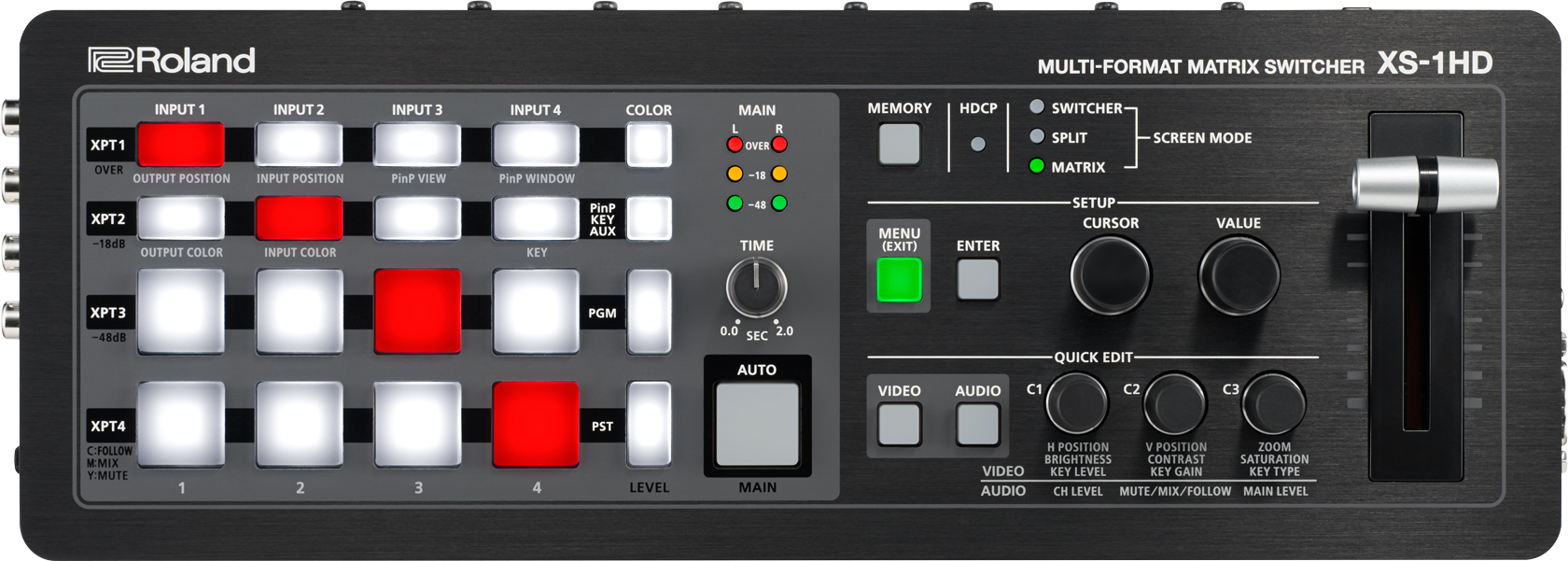

Roland XS-1HD Multi-format Matrix Switcher

• A table-top matrix switcher that's the width of a 13" laptop, equipped with four HDMI inputs and outputs
• High-quality 4:4:4/10-bit processing at up to WUXGA/1080p
• Frame synchronizer and scaler on all inputs
• Three operation modes Matrix Mode allow switching of 4 sources to any of 4 outputs
• Switcher Mode allows PinP, key-compositing, and dissolve transitions
• Split Mode allows PinP of up to three inset windows
• Built-in eight-channel digital audio mixer handles audio from four HDMI signals and stereo analog input
• Built-in EDID emulator, and HDCP-compliant
• Still images can be loaded from a USB flash drive

Video

Processing
4:4:4 (Y/Pb/Pr, RGB) /10 bits
4:2:2 (Y/Pb/Pr) /10 bits

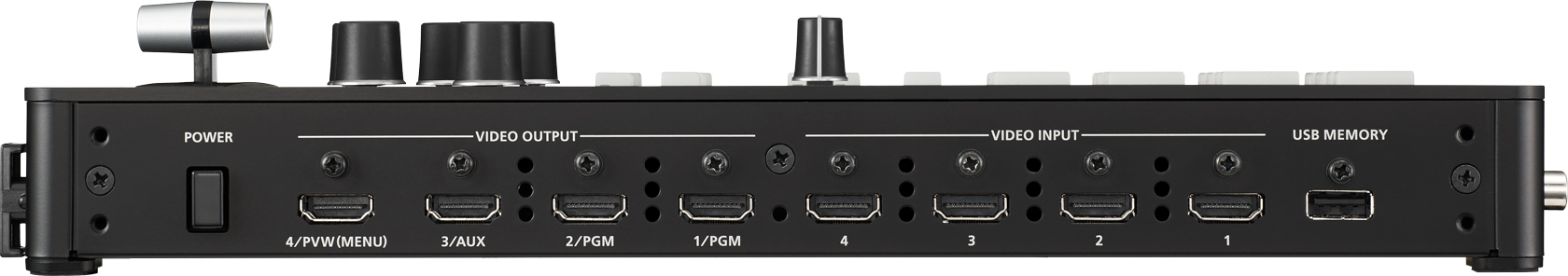

Input Connectors
HDMI : HDMI type A x 4 (HDMI INPUT 1--4)
*HDCP Supported

Output Connectors
HDMI : HDMI type A x 4 (HDMI OUTPUT 1--4)
*HDCP Supported

Formats
480/59.94i (*1), 576/50i (*1), 480/59.94p (*1), 576/50p (*1), 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 800 x 600/60 (*1), 1024 x 768/60 (*2), 1280 x 720/60 (*2), 1280 x 800/60 (*2), 1366 x 768/60 (*2), 1280 x 1024/60 (*2), 1400 x 1050/60 (*2), 1600 x 1200/60, 1920 x 1080/60, 1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.

Effects
Output Mode : Switcher, Split, Matrix
Transition : Mix, Cut (*3)
Composition (Keyer) : 1 (*3)
Others : HDCP Supported, Test Pattern Generator.
(*3) These effects depends on Output Mode.

Still Image
Internal Memory : 1
Maximum Size : 1920 x 1200 pixels
Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed

Audio

Sampling Rate
24 bits/48 kHz

Input Connectors
HDMI : HDMI type A x 4
AUDIO INPUT : RCA pin type

Output Connectors
HDMI : HDMI type A x 4
AUDIO OUTPUT : RCA pin type
PHONES : Stereo mini type

Input Level
AUDIO INPUT : -10 dBu (Maximum : +8 dBu)

Input Impedance
AUDIO INPUT : 15 k ohms

Output Level
AUDIO OUTPUT : -10 dBu (Maximum : +8 dBu)
PHONES : 72 mW + 72 mW (32 ohms)

Output Impedance
AUDIO OUTPUT : 1 k ohm
PHONES : 10 ohms

Formats
HDMI : Linear PCM, 24 bits, 48 kHz, 2 ch

Processing
Mixer : 4 ch (Delay : Maximum 500 ms, Audio Follow)
Test Tone Generator

Others

External Connectors
REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control
USB MEMORY : USB A type x 1 (USB Memory)

Preset Memory
16
*Auto Memory Function

Power Supply
AC Adaptor

Current Draw
2.1 A

Power Consumption
25 W

Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

Dimensions
328 (W) x 117 (D) x 57 (H) mm
12-15/16 (W) x 4-5/8 (D) x 2-1/4 (H) inches

Weight
1.2 kg 2 lbs 11 oz

Accessories
Owner's Manual
AC adaptor
Power cord

Notes
* 0 dBu = 0.775 Vrms
