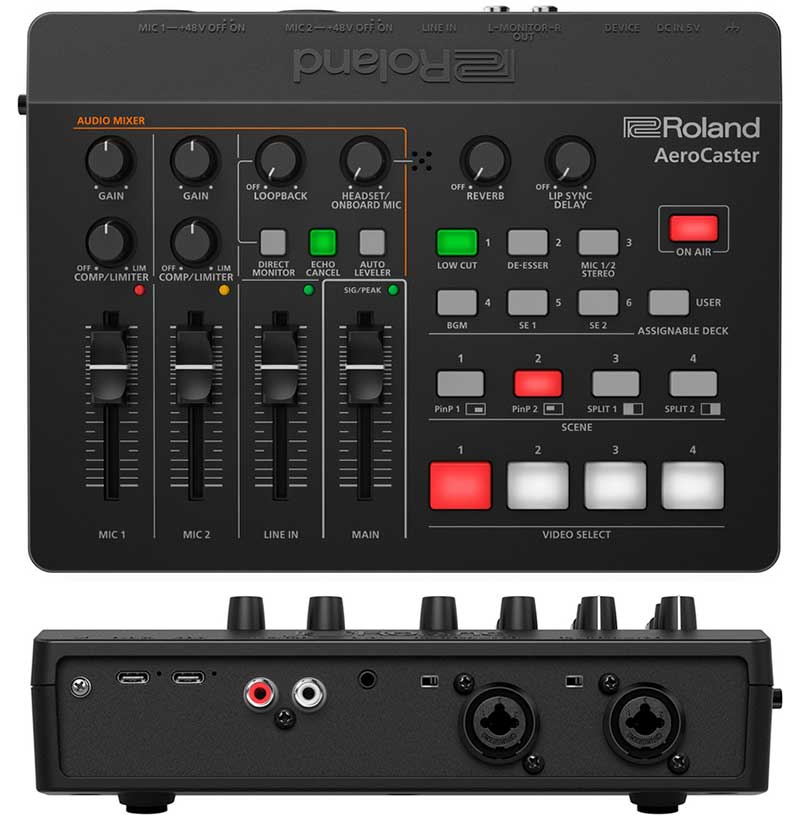

Roland VRC-01 Aerocaster - AV Streaming Mixer

AeroCaster VRC-01

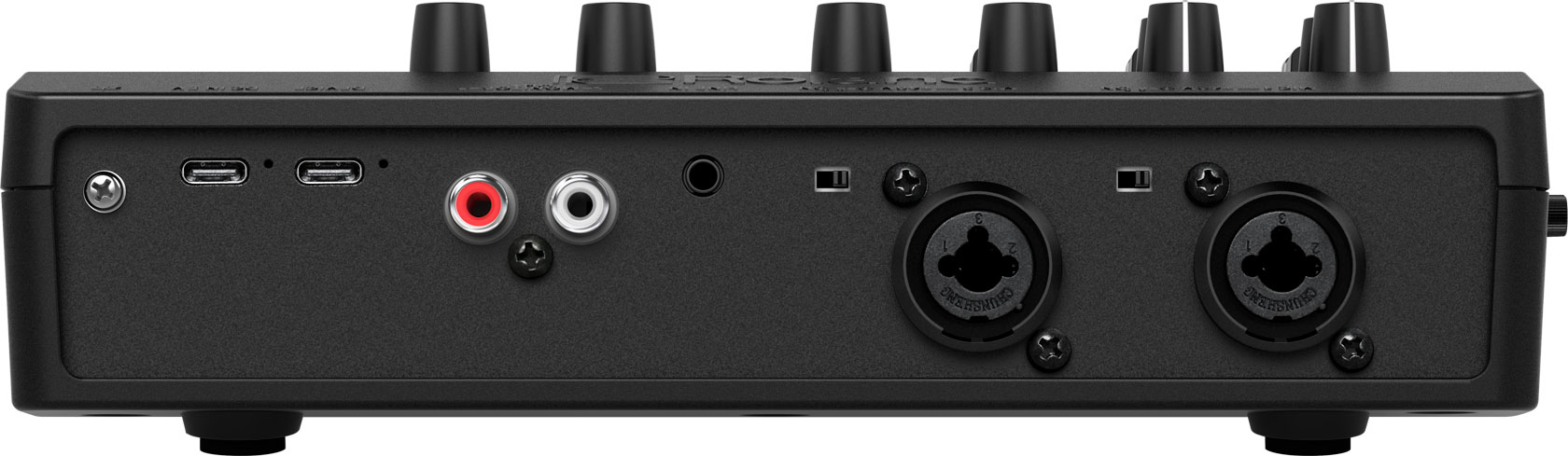

Connectors
MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max)
LINE IN jack: Stereo miniature type
MONITOR OUT jack: RCA phono type
PHONES/HEADSET jack: Stereo miniature type (Stereo, CTIA-type)
DC IN 5V port: USB Type-C (R)
DEVICE port: USB Type-C (R)

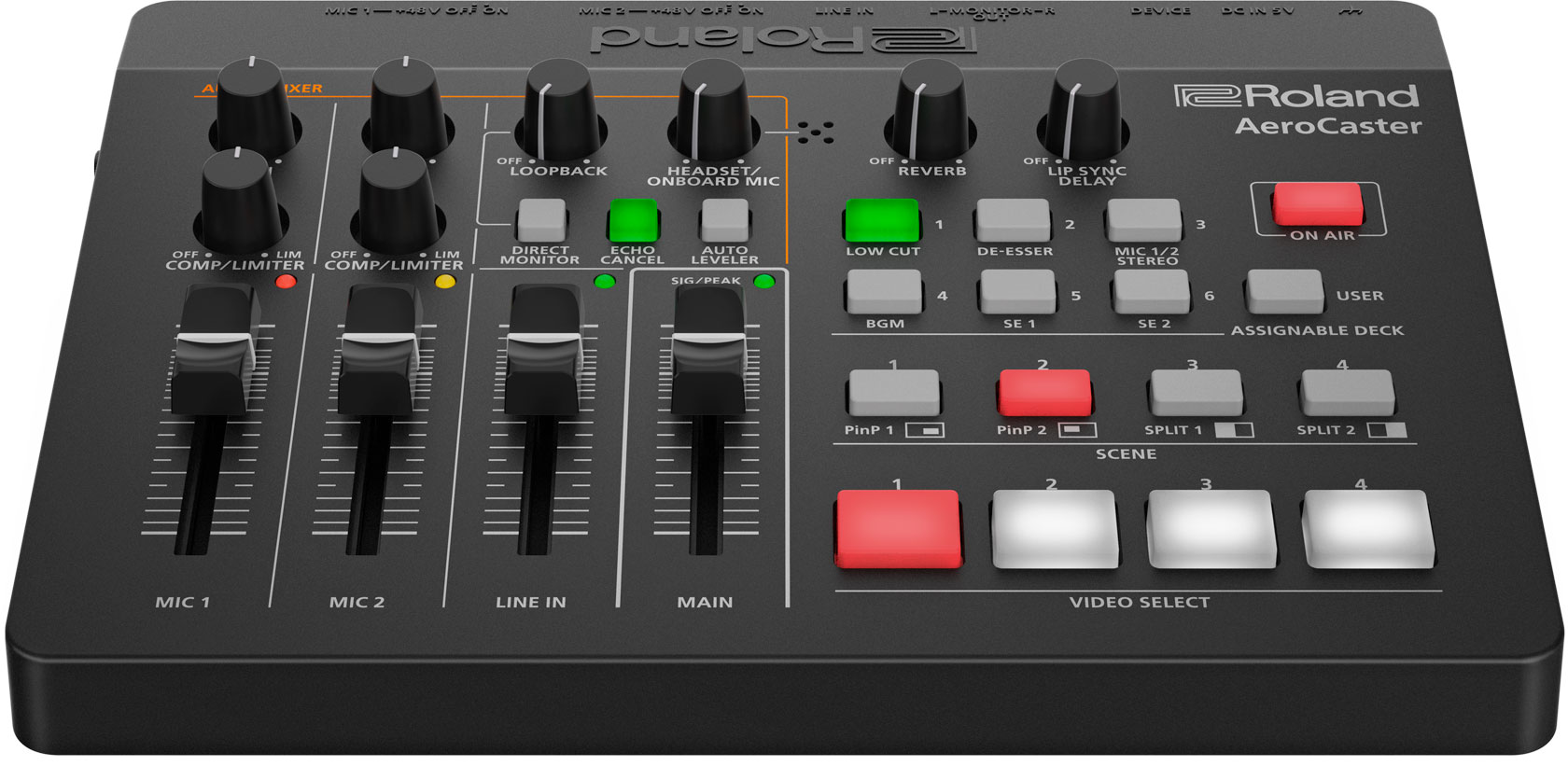

Controller
MIC 1 LEVEL fader
MIC 2 LEVEL fader
LINE IN LEVEL fader
MAIN LEVEL fader
MIC 1 COMP/LIMITER knob
MIC 2 COMP/LIMITER knob
MIC 1 GAIN knob
MIC 2 GAIN knob
LOOP BACK knob
HEADSET/ONBOARD MIC knob
REVERB knob
LIP SYNC DELAY knob
PHONES/HEADSET knob
MIC 1 +48V switch
MIC 2 +48V switch
Indicator
POWER
DEVICE
SIG/PEAK
Nominal Input Level
MIC 1, 2 jacks: -60 to +4 dBu (Maximum input level: +24 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +10 dBu)
Input Impedance
MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN < 24 dBu)
LINE IN jacks: 15 k ohms
Nominal Output Level
MONITOR OUT jacks: -10 dBu (Maximum output level: +10 dBu)
PHONES/HEADSET jack: 15 mW + 15 mW (32 ohms load)
Output Impedance
MONITOR OUT jacks: 1 k ohms
Audio Effects
Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter
Power Supply
USB AC adaptor (commercially available)
* Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more.
USB Bus power
Current Draw
700 mA (AC adaptor)
500 mA (USB bus power)
Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions
220(W) x 166(D) x 60(H) mm
8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches
Weight (without cables)
600 g
1 lb 6 oz
Accessories
Leaflet "Read Me First"
USB Type-C to Lightning cable
USB Type-C to USB Type-A cable

* 0 dBu = 0.775 Vrms

AeroCaster LIVE

Video Input
Satellite camera
Browser source
Built-in camera (iPad).
* 5 inputs in total
* Satellite cameras can be used with AeroCaster Camera or Web browser.
* Need to install the “AeroCaster Camera” App on your iPhone and Android Phone.
* “Browser source” use PC or mobile devices (iOS, Android OS) via Google Chrome web browser.
* Codec:H.264 Bitrate:Up to 20Mbps
Video Processing
RGB 4:4:4, 8-bit
1080/60p
* Depends on iPad internal processing
* Video input will be converted automatically.
Input Formats
Up to 1080/30p
* Automatically adjusts resolution and frame rate according to network bandwidth.
Output Formats
Up to 1080/60p
* Reccommend Apple USB-C Digital AV Multiport Adapter or Apple Lightning-Digital AV Adapter.
Still image and video and audio playback
Up to 100.
* Use still images and videos saved in the iPad.
* File format conforms to iOS Photo Library.
* PNG alpha channel supported.
* Support mp4(aac), m4a(aac), mp3, wav as audio source.
Scene
Up to 30.
* Text, Media (Overlay), PinP, SPLIT, QUAD are either can be registered.
Video Effects
Transition: CUT, MIX (DISSOLVE), WIPE
DSK (overlay): Text, Media
Composition: PinP, KEY (Luminance Key, Chroma Key), Simple telop function
* PNG alpha channel composition supported
Audio Processing
Sampling Rate: 24 bits, 48 kHz
Streaming Platform
YouTube Live
Facebook Live
Twitch
* Custom RTMP supported
Recording
Format : MP4 (H.264/AAC)
Bitrate : 1Mbps∼10Mbps
Other Functions
(Zoom, Exposure, White Balance, Focus, LED Light, Stabilization)
* Depends on smart phone or tablet

Operating conditions

AeroCaster LIVE (for iPad)
Operating System:
iOS 14 or later
CPU:
Apple A12 processor or better (A12Z or better is recommended)
AeroCaster Camera (for iPhone, iPad)
Operating System:
iOS 13 or later
CPU:
Apple A10 processor or better (iPhone 7 or higher recommended)
AeroCaster Camera (for Android)
Operating System:
Android 10 or later
CPU:
Models with H.264 hardware encoder
Others:
Screen resolution 1280x720 or higher
Equipped with two or more cameras in front and rear

* Switching between 3 or more camera lenses is supported only for Xperia and Google Pixel series

* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
