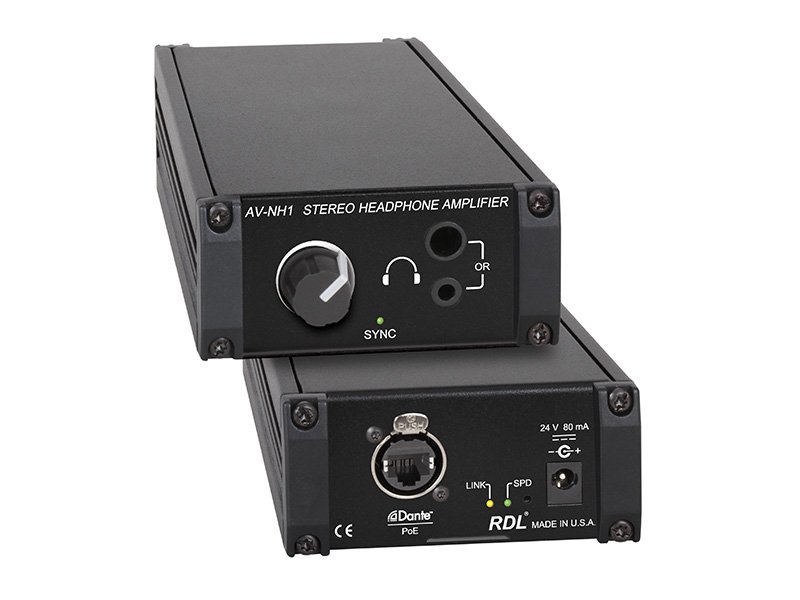

RDL AV-NH1 Dante Network to Stereo Headphone Amplifier

The RDL AV-NH1 pulls a stereo pair straight off a Dante network and drives it into a pair of headphones, a local monitor feed for an engineer or talent position. It accepts a Dante stream at up to 24-bit / 96 kHz and applies no coloration of its own, so what you hear on the headphones is what is on the network. A single adjustable level control sets the volume for both output jacks at once.

Connection to the network is on an RJ45 Neutrik etherCON port, with LED indicators for sync status and for Ethernet link and speed. Headphones connect on both a 1/4-inch and a 3.5 mm TRS jack, each delivering 100 mW into 100 ohms at a 0 dBFS network level. The AV-NH1 can run from a PoE network switch or an external 24 Vdc supply; with both present it runs from the external supply and switches to PoE if that supply is lost. It is built in the USA in a metal enclosure and needs no software to configure.

  • Network ConnectorRJ45 Neutrik etherCON, Dante, up to 24-bit / 96 kHz
  • Headphone Outputs1/4 in. and 3.5 mm TRS, shared level control
  • Output Power100 mW into 100 ohms per channel at 0 dBFS
  • PowerPoE or external 24 Vdc (seamless changeover)
  • FunctionDante network to stereo headphone amplifier
FunctionDante network to stereo headphone amplifier
Network ConnectorRJ45 Neutrik etherCON, Dante, up to 24-bit / 96 kHz
Sample Rates44.1, 48, 88.2, 96 kHz
Headphone Outputs1/4 in. and 3.5 mm TRS, shared level control
Output Power100 mW into 100 ohms per channel at 0 dBFS
IndicatorsSync status, Ethernet link and speed LEDs
Power or external 24 Vdc (seamless changeover)
ConstructionDurable metal enclosure, made in USA
RDL Dante AoIP Interfaces: Hands-On Review (AV-NH1 at 2:01)
