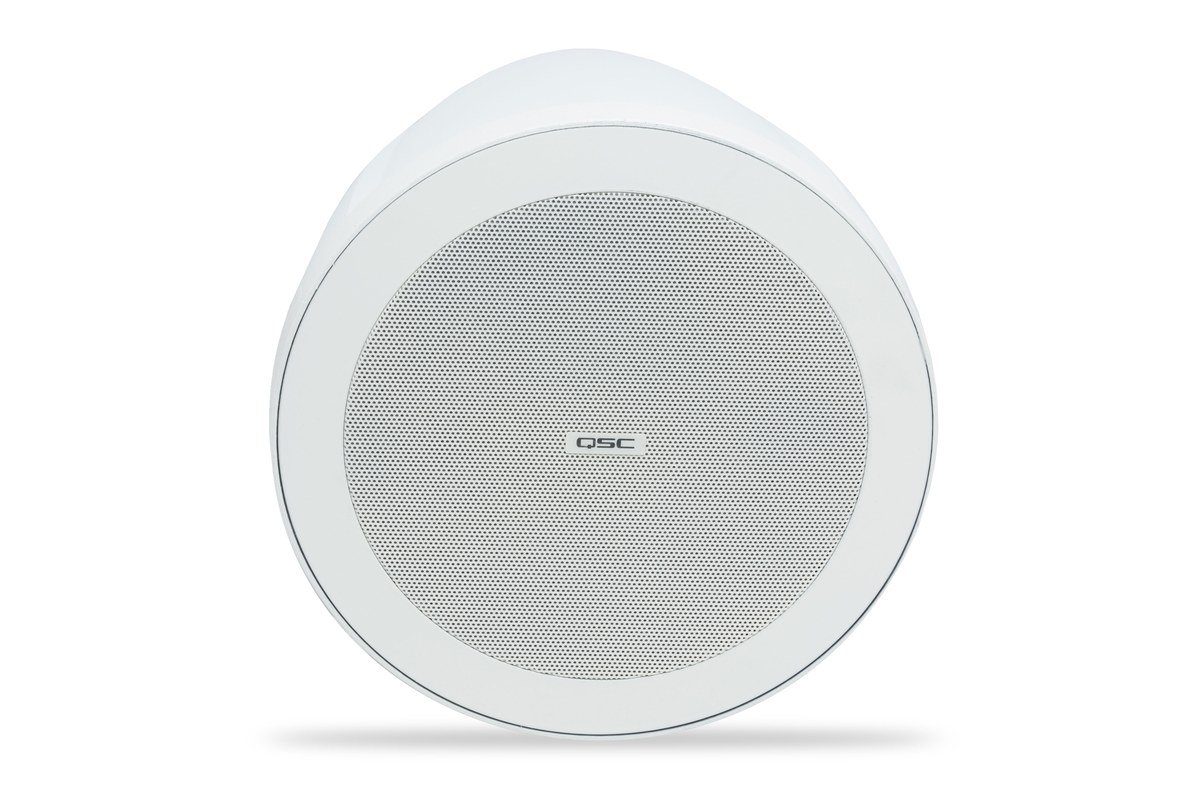

QSC AD-P6T AcousticDesign 6.5 inch Pendant-Mount Loudspeaker
The AD-P6T is the pendant answer for rooms with no ceiling to cut into: exposed structure in restaurants, warehouses converted to retail, atriums and lobbies where the deck is thirty feet up and a ceiling speaker is not an option. A 6.5 inch two-way driver complement hangs on an aircraft cable at whatever height puts the coverage where people actually are.
It runs on 70 or 100 V distributed lines with a 16 ohm bypass position for low-impedance use, and the enclosure is available in black or white so it can either disappear against a dark deck or read as part of a white ceiling. It ships ready to hang, with a quick start guide and QSC's published EASE and CLF data for modelling.
| Effective frequency range | 55 Hz - 20 kHz |
|---|---|
| Rated noise power / voltage | 60 watts / 31 volts (rms) |
| Maximum continuous SPL [dB] | 106 |
| Transformer taps / impedance | 16 ohms (in bypass setting) 7.5W (70V); 15W (100V) Tap: 667 ohms 15W (70V); 30W (100V) Tap: 333 ohms 30W (70V); 60W (100V) Tap: 167 ohms 60W (70V); N/A (100V) Tap: 83 ohms |
| HF transducer | 19 mm [0.75-inch] aluminum dome tweeter |
| LF transducer | 165 mm [6.5-inch] weather treated paper cone woofer |
