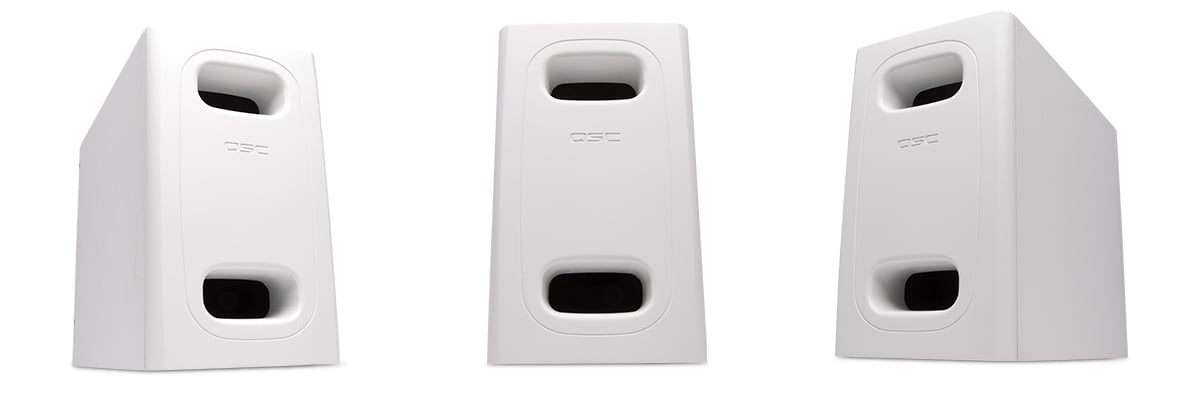

QSC AD-S.SUB AcousticDesign Surface Mount Subwoofer
The AD-S.SUB is the subwoofer half of QSC's mix-and-match AcousticDesign SUB/SAT system, using a 6.5 inch driver in a surface-mount enclosure to carry bass for a run of AD-S.SAT satellite speakers so the small satellites can stay compact. A built-in transformer selector on the rear panel sets 70V or 100V distributed taps or a mono/stereo low-impedance input, with dedicated outputs to feed up to two satellite speakers directly.
Finished in black or white to match the AD-S.SAT and the rest of the AcousticDesign surface-mount family, it is built for background music systems in retail, hospitality, and office spaces where a full two-way surface speaker is more than the room needs.
| Frequency Range | 45 Hz - 150 Hz |
|---|---|
| Sensitivity | 86 dB |
| Maximum SPL | 106 dB continuous / 112 dB peak |
| Power Handling | 100 W / 20 V (rms) |
| Dimensions | 13.8 x 8.2 x 17 in (350 x 209 x 432 mm) |
| Net Weight | 23.6 lb (10.7 kg) |
| Outputs | Dedicated satellite outputs, hi-Z and low-Z transformer selector |
