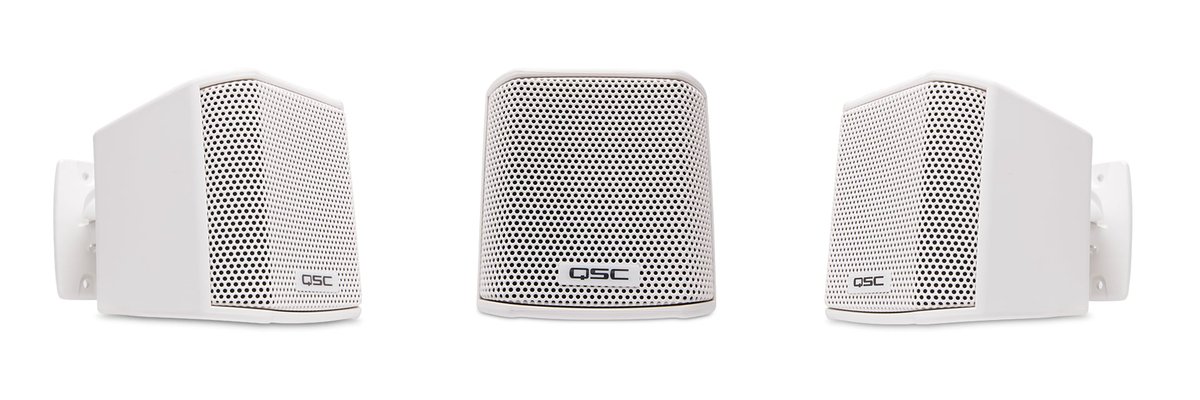

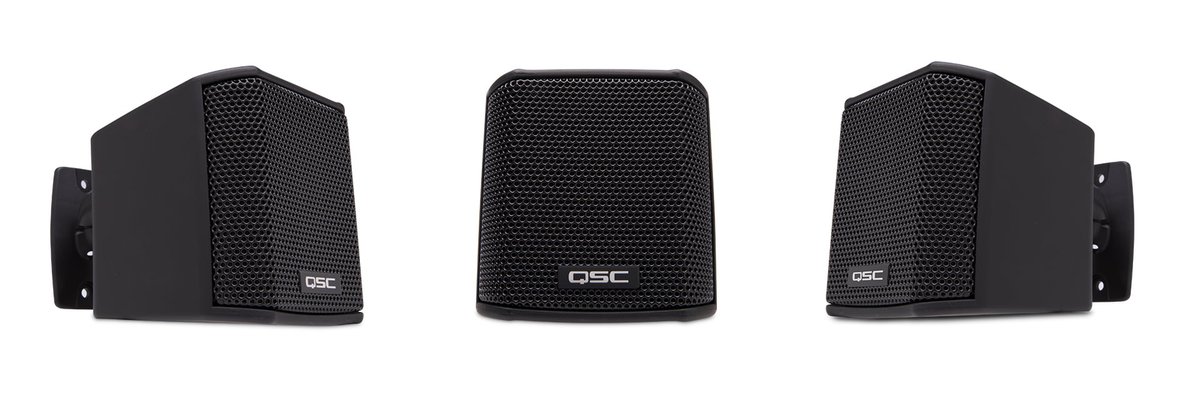

QSC AD-S.SAT AcousticDesign Surface Mount Satellite Speaker
The AD-S.SAT is a small surface-mount satellite speaker built around a single 2.75 inch driver, sized to disappear on a wall while covering background music and paging in retail aisles, hallways, and small offices. Its wide 170 degree conical coverage lets a handful of units blanket a room evenly at close listening distances.
Designed as the satellite half of QSC's mix-and-match AcousticDesign SUB/SAT system, it pairs with the AD-S.SUB subwoofer for a distributed system that keeps bass out of the small satellite enclosures. Finished in black or white to match the AD-S.SUB and the rest of the surface-mount family.
| Frequency Range | 150 Hz - 20,000 Hz |
|---|---|
| Sensitivity | 82 dB |
| Coverage | 170 degrees conical |
| Maximum Peak SPL | 96 dB @ 1M |
| Dimensions (incl. bracket) | 3.6 x 3.5 x 5.4 in (92.5 x 89 x 136 mm) |
| Net Weight | 0.95 lb (433 g) |
