MuxLab 500882 USB/HDMI Video Selector and Mixer

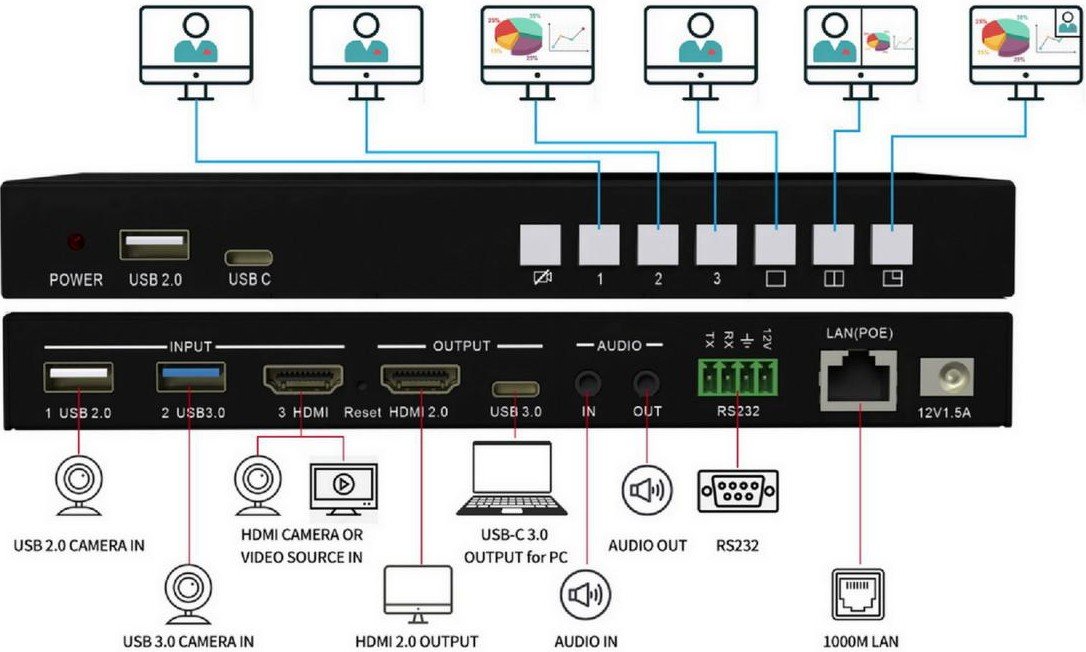

The 500882 selects and mixes between a USB 3.0 camera, a USB 2.0 device, and an HDMI source, laying them out as picture-in-picture or side-by-side, and outputs the result as a standard UVC/UAC stream over USB-C that any conferencing app sees as a single webcam.
A local HDMI output at 2.0 lets the room see the same program the remote call receives, and PoE support means the unit can be powered from network infrastructure instead of a dedicated adapter in a rack.
| Video Resolution | Picture-in-picture, side-by-side, and big-and-small layouts |
|---|---|
| Input | One USB 3.0, one USB 2.0, one HDMI 1.4 source |
| Output | HDMI 2.0 for local monitoring |
| Control | Front panel buttons, RS232, and Ethernet |
| Power | 12VDC @ 1.5A, with PoE support |
| Signal Format | USB-C output (UAC/UVC) for streaming |
