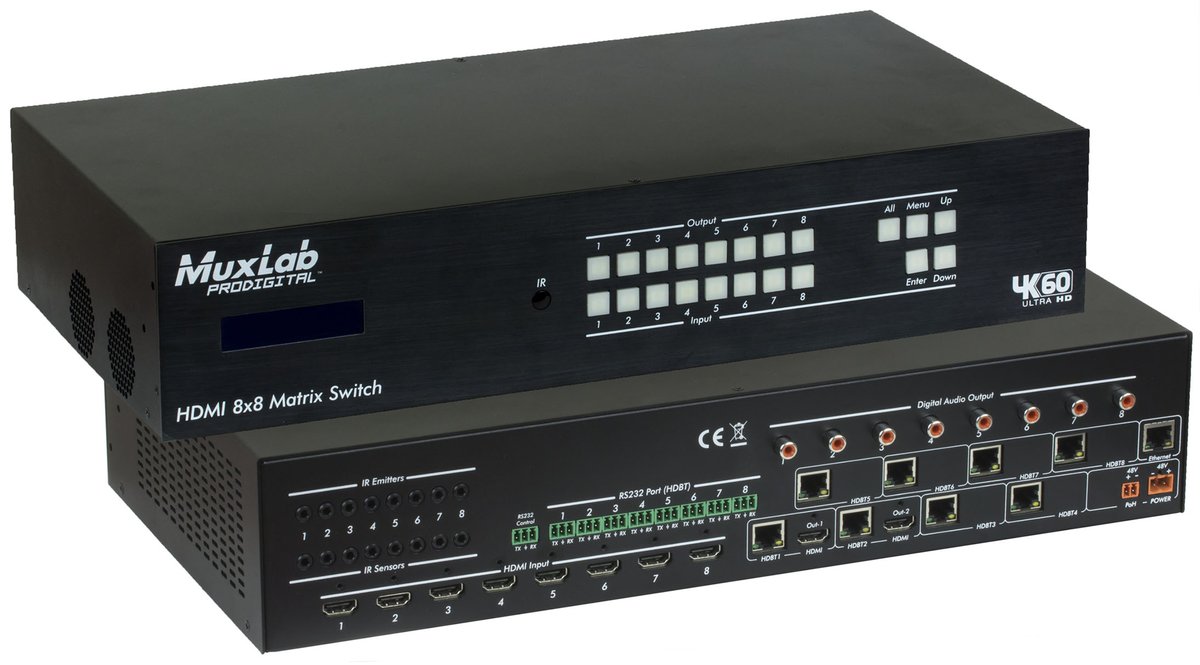

MuxLab 500413 HDMI 8x8 Matrix Switch, HDBT, 4K/60

The 500413 connects eight HDMI sources to eight HDBaseT outputs, with the first two outputs also mirrored on local HDMI ports. It supports HDMI 2.0 at 4K/60 4:2:0 and HDCP 2.2, reaching 70m at 1080p and 40m at 4K over structured cable.

PoH powers compatible receivers over the same cable, and the matrix works with the 500454-PoE-RX HDBaseT receiver. Eight audio output channels are available for de-embedding to a house system, which suits a bar, sports venue, or lecture block where audio and video route separately.

Standard	HDMI 2.0
Signal Format	and video resolution HDMI 2.0 (4K/60 4:4:4 for HDMI outputs & 4K/60 4:2:0 for HDBT outputs) and HDCP 1.4 & 2.2
Video Bandwidth	10.2Gbps (HDBT), 594Gbps (HDMI) Maximum Pixel Clock 297MHz (HDBT), 594MHz (HDMI)
Audio	Digital Audio: PCM, Dolby TrueHD, DTS-HD Master Audio
Power Supply	Two (2) 110-240VAC to 48VDC power supplies
Enclosure	Metal enclosure Bracket Includes rack and wall mount bracket
Temperature	Operating: 0 deg to 40 deg C Storage: -20 deg to 80 deg C
Humidity	Up to 90% non-condensing
