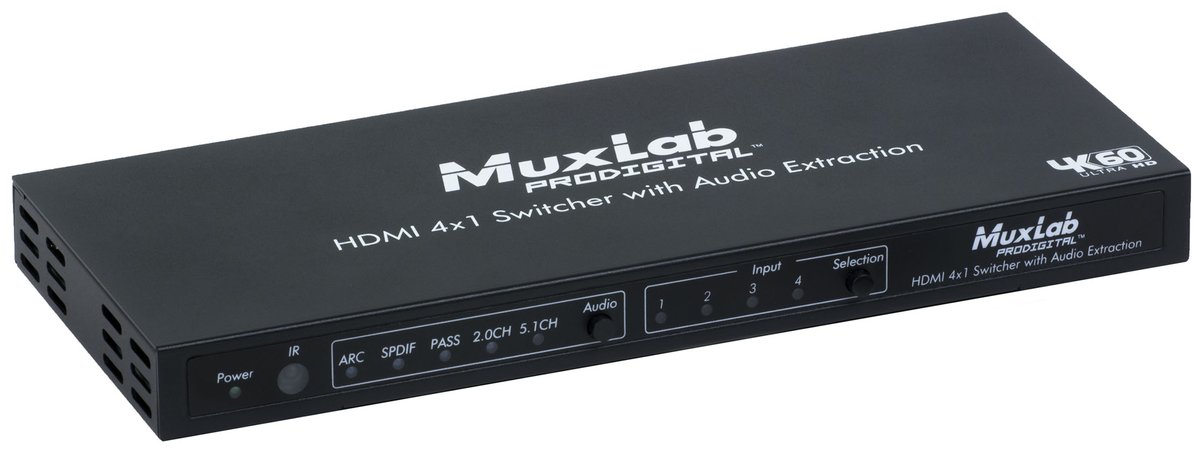

MuxLab 500437 HDMI 4x1 Switcher with Audio Extraction, 4K/60

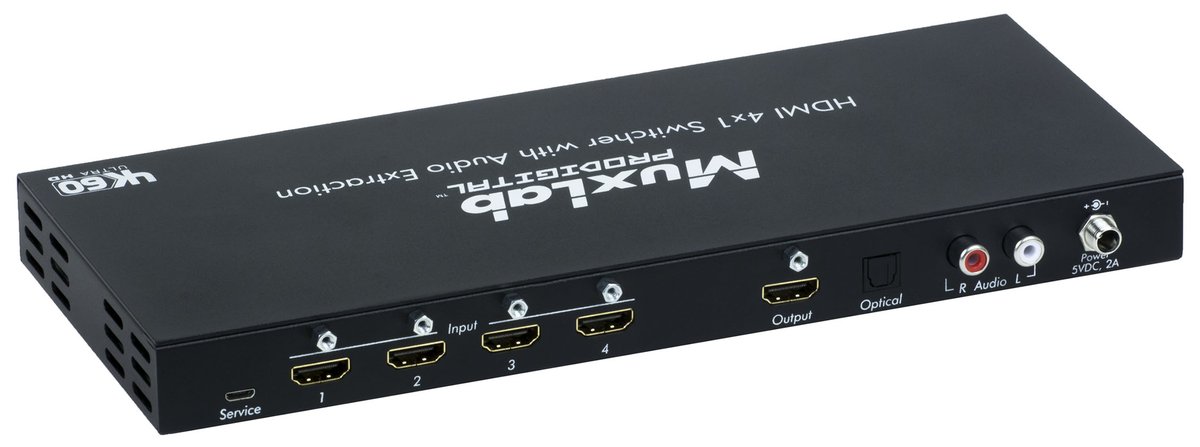

The 500437 switches one of four HDMI sources through to a single display at up to 4K at 60Hz 4:4:4, with 12-bit Deep Color and 3D support. Extracted digital audio appears on a S/PDIF TosLink output and analog stereo on RCA jacks.
Extraction covers LPCM 2.0 or 5.1, Dolby 5.1, and DTS 5.1 to the optical port, and LPCM 2.0 to the analog jacks. Audio Return Channel is supported, so sound originating at the display can be sent back down the same HDMI link to the audio system.
- Dimensions1.97 H x 9.45 W x 13.78 L in (35.00 × 24.00 × 5.00 cm)
- ConnectorsHDMI Type A 19-pin female
- Frequency25 to 594 MHz
- Power Supply5VDC, 2A with interchangeable blade for US, UK and Euro
- Weight1.420 kg
| Standard | 2.0 |
|---|---|
| Resolution | 480i to 1080p @ 50/60 fps 1080p @ 24/50/60 fps 3840 X 2160 @ 24/25/30/60 fps |
| Frequency | 25 to 594 MHz |
| Color | 8, 10 & 12 bit |
| Audio | Extraction Uncompressed (LPCM) or compressed (Dolby, DTS) |
| Connectors | HDMI Type A 19-pin female |
| Cable | HDMI Video Cable Optical TosLink and Analog 2CH Audio cable |
| Power Supply | 5VDC, 2A with interchangeable blade for US, UK and Euro |
| Weight | 1.420 kg |
| Dimensions | 1.97 H x 9.45 W x 13.78 L in (35.00 × 24.00 × 5.00 cm) |
