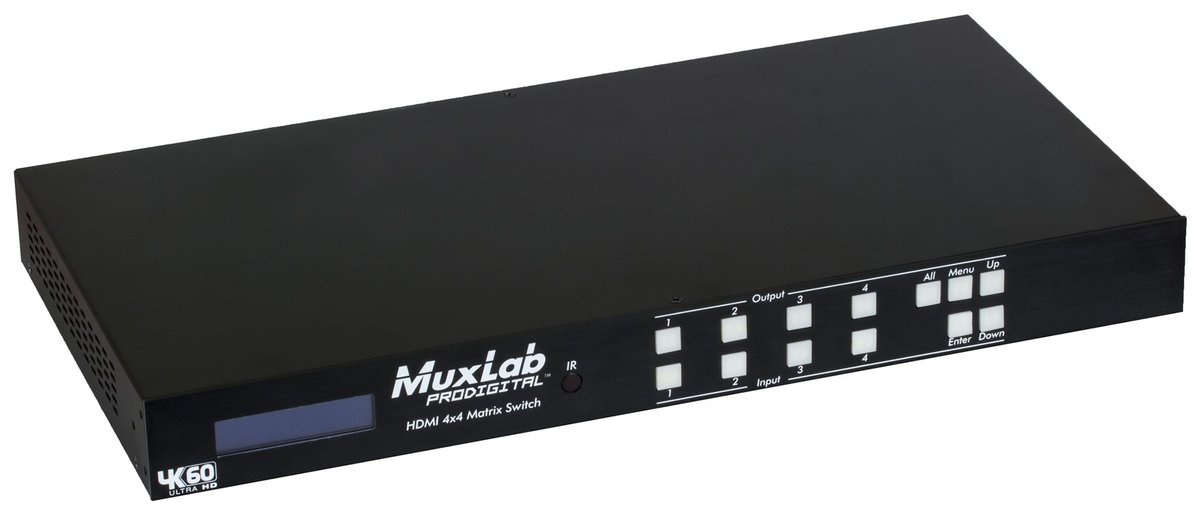

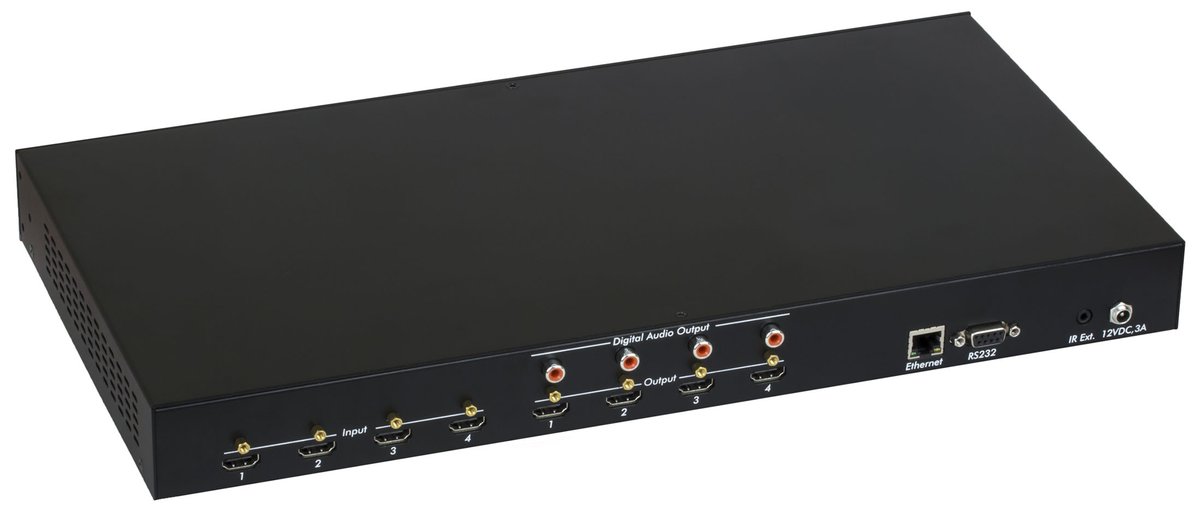

MuxLab 500444 HDMI 4x4 Matrix Switch, 4K/60

The 500444 routes four HDMI sources to four displays at up to 4K/60 4:4:4, with HDCP 2.2 compliance and full HDR support. A 4K/60 4:2:0 mode keeps it compatible with HDBaseT extenders on the output side.

Per-port scaling and EDID management let displays of different native resolutions coexist on the same matrix. It works with Blu-ray players, media streamers, cameras, set-top boxes, and game consoles, and all 3D formats pass through.

Standard	HDMI 2.0a
Signal Format	HDMI 2.0a (4K/60 4:4:4) protocol and HDCP 1.4 & 2.2
Video Resolution	VESA and SMPTE 480p to 2160p (4K) With 3D
Video Bandwidth	18Gbps Maximum Pixel Clock 594Mhz
Audio	Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master
Cable	Eight (8) HDMI cables of appropriate length for video resolution selected Cat 5e/6 or better twisted pair cable for Ethernet One DB9 serial cable for RS232 Maximum Distance
Cables	not included. 10m for HDMI cable
Power Supply	One (1) 110-240VAC to 12VDC/5.0A power supply
