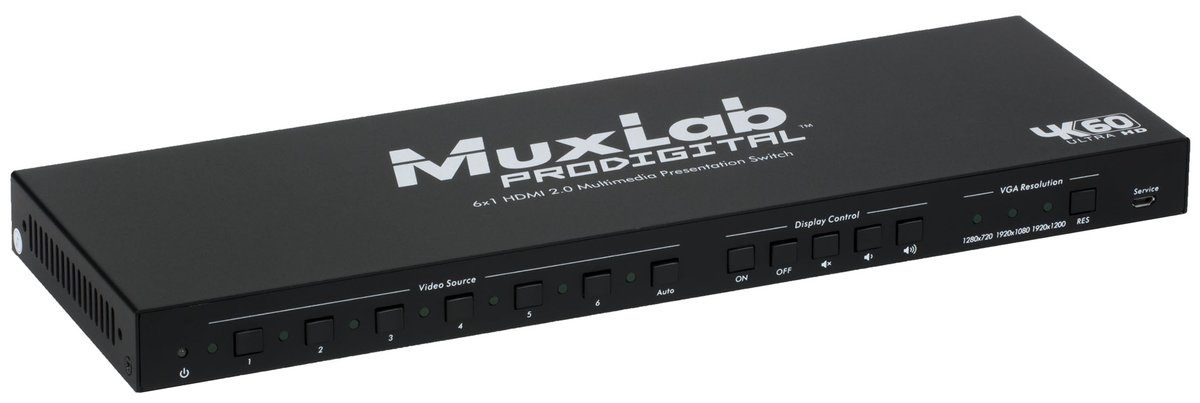

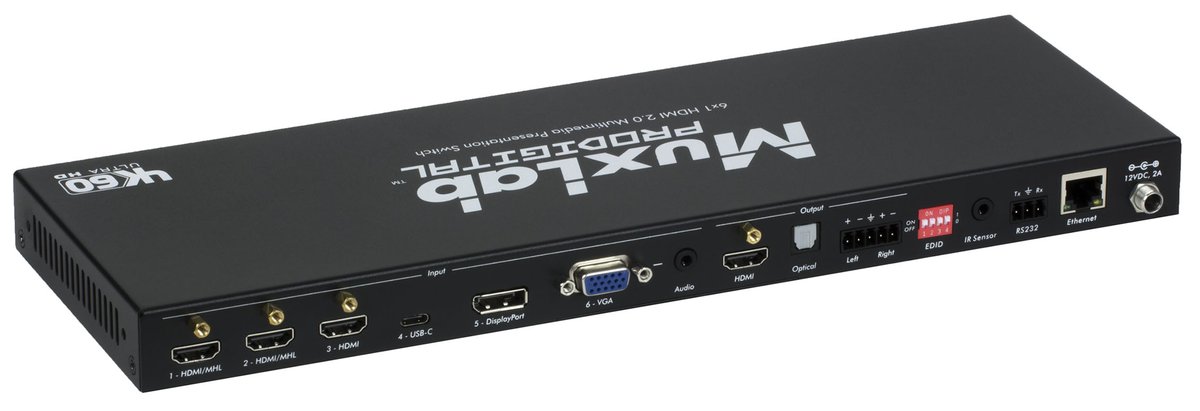

MuxLab 500445 6x1 2.0 Multimedia Presentation Switch

The 500445 takes three HDMI inputs plus DisplayPort 1.2a, USB Type-C, and VGA, and scales any of them to a single output at up to 4K at 60Hz 4:4:4, 8-bit, with 1080p/60 3D support. HDCP 2.2 and HDR10 are supported, along with smart EDID management.

USB-C in particular means a modern laptop connects with the cable it already has. Auto-switching follows the live source, and a 2-channel analog audio extract port plus 5.1 support hands sound to the room system. It suits a boardroom or lecture theatre where guests arrive with mixed hardware.

StandardHDMI 2.0, DisplayPort 1.2a, USB Type-C and VGA
Signal FormatHDMI 2.0, DisplayPort 1.2a, USB Type-C and VGA (1920 x 1200), and HDCP 2.2 compliant
Video ResolutionHDMI and DisplayPort Input: Up to 4K/60 (4:4:4) 8 bit
Video BandwidthUp to 18 Gbps
Audio Bandwidth20Hz to 20KHz
Power SupplyOne (1) 110-240V/12VDC @ 2A power supply with interchangeable blades (locking PSU connector)
Power Consumption10Watts (Max)
Dimensions13.46" x 4.53" x 1.02"(342mm x 115mm x 26mm)
CEDIA 2019: MuxLab 6x1 HDMI 2.0 Multimedia Presentation Switch
