MuxLab 500428 HDMI 2.0 4X4 Seamless Matrix with Videowall & Multiview

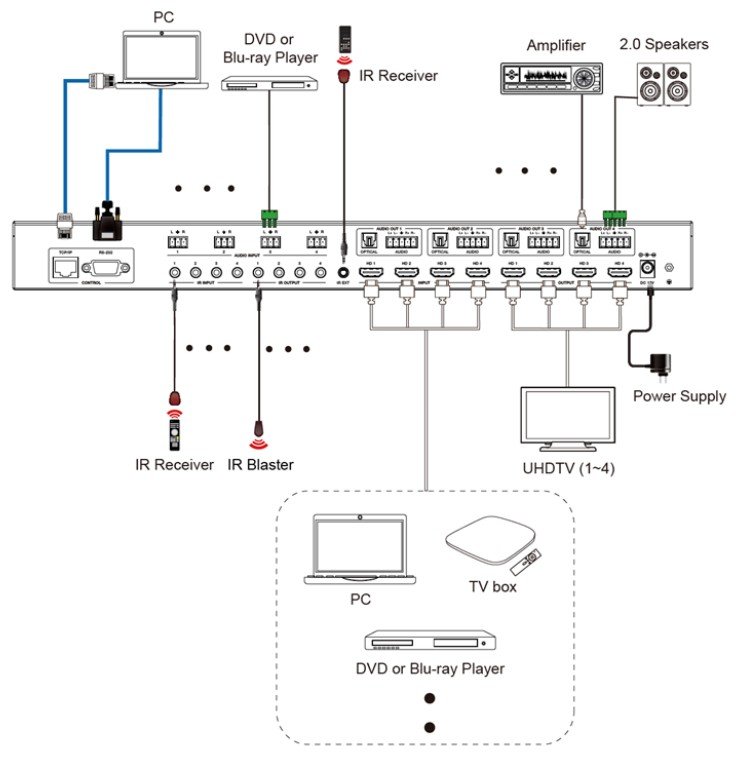

The 500428 routes four HDMI sources to four displays with no visible break on a switch, and scales each source independently. Beyond straight matrix routing it drives 12 multiview display arrangements and 9 video wall splicing modes.

It supports HDMI 2.0 at 4K/60 4:4:4 with HDCP 2.2. Audio passes through up to 7.1CH HD audio (LPCM, Dolby TrueHD, DTS-HD Master Audio), with analog audio insertion and extraction on the input and output ports. An IR matrix, EDID management, CEC control, and a built-in web interface handle control.

  • Dimensions(WxDxH) 440mm x 203mm x 44.5mm
  • Outputs4 x HDMI Type A [19-pin female]
  • Max resolution8-bit, 10-bit,12-bit (4K@60Hz YCbCr 4:2:2/4:2:0)
  • Power Supply100 - 240VAC 50/60Hz, Output: 12VDC/2.5A
  • Power Consumption25W (Max)
HDMI Compliance 2.0
HDCP2.2 and HDCP 1.x 594Mhz/18Gbps Up to 4K/60Hz (4:4:4) RGB 4:4:4, YCbCr 4:4:4//4:2:0 Wideband 20KHz to 60KHz PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1 Technical Specification
ColorDepth Infrared Frequency Range Optical Audio Formats PCM 2.0Analog Audio Formats 8-bit, , 12-bit (1080p@60Hz) 8-bit (4K@60Hz YUV4:4:4) 8-bit, 10-bit,12-bit (4K@60Hz YCbCr 4:2:2/4:2:0)
Power Supply100 - 240VAC 50/60Hz, Output: 12VDC/2.5A
Power Consumption25W (Max)
Dimensions(WxDxH) 440mm x 203mm x 44.5mm
Weight2.55Kg
HousingMetal
Max Resolution8-bit, 10-bit,12-bit (4K@60Hz YCbCr 4:2:2/4:2:0)
Outputs4 x HDMI Type A [19-pin female]
