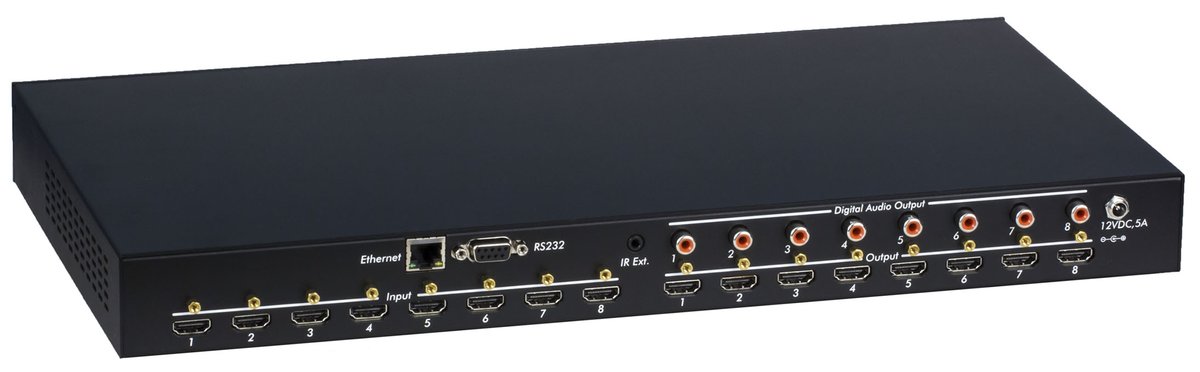

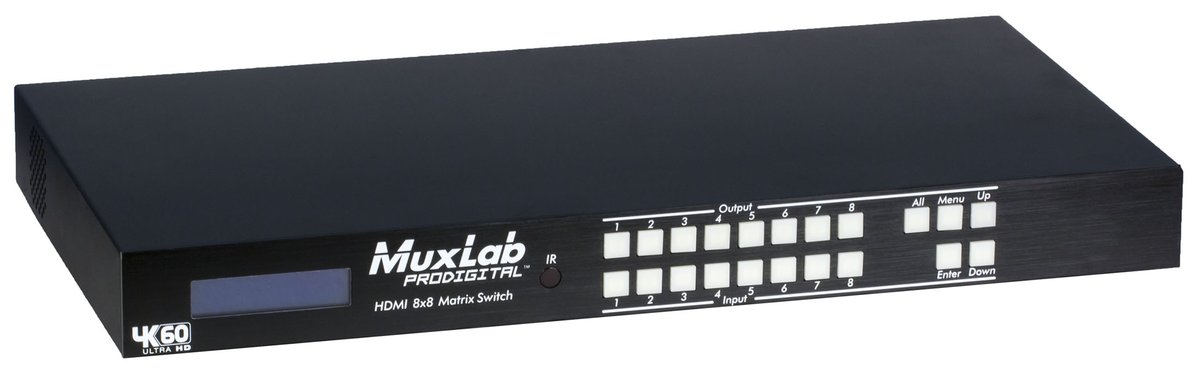

MuxLab 500443 HDMI 8x8 Matrix Switch, 4K/60, US

The 500443 connects eight HDMI sources to eight displays, with any source reachable from any output at any time. It carries HDMI 2.0 at 4K/60 4:4:4, is HDCP 2.2 compliant, and supports the full HDR range.

Each output scales independently and EDID is managed per port, so displays running different native resolutions each get a signal they can show without dragging the rest of the system down. Audio passes as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio.

Standard	HDMI 2.0a
Signal Format	HDMI 2.0a (4K/60 4:4:4) protocol and HDCP 1.4 & 2.2
Video Resolution	VESA and SMPTE 480p to 2160p (4K) With 3D
Video Bandwidth	18Gbps Maximum Pixel Clock 594Mhz
Audio	Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master
Cable	Sixteen (16) HDMI cables of appropriate length for video resolution selected Cat 5e/6 or better twisted pair cable for Ethernet One DB9 serial cable for RS232 Maximum Distance
Cables	not included. 10m for HDMI cable
Power Supply	One (1) 110-240VAC to 12VDC/5.0A power supply
